FOOTRESTS/STAND/BRAKE PEDAL ('74

KE125-A5 KE125 1978 USA CANADA

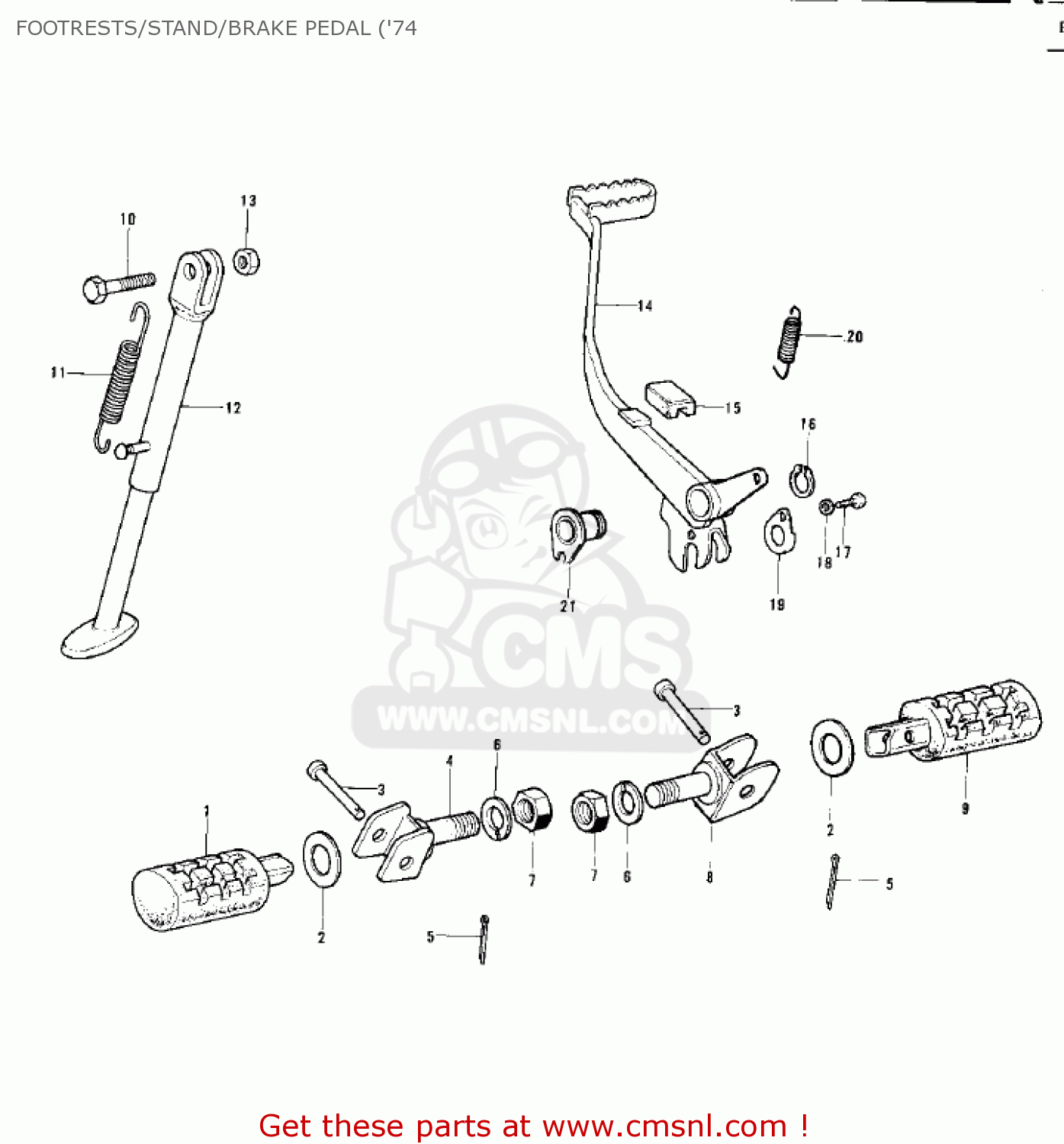

Footrests/stand/brake pedal ('74 diagram KE125-A5 KE125 1978 USA CANADA

FOOTRESTS/STAND/BRAKE PEDAL ('74 KE125-A5 KE125 1978 USA CANADA

FOOTRESTS/STAND/BRAKE PEDAL ('74 KE125-A5 KE125 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

340271114
ref: 1

STEP-ASSY,FR,LH

€ 24.00

2

92022250
ref: 2

WASHER,PLAIN

€ 3.00

3

92043080
ref: 3

PIN-FOOTREST BAR FIT

€ 3.50

4

34003051
ref: 4

BRACKET,FOTRST BAR,LH

€ 29.00

5

550D2516
ref: 5

PIN-COTTER,2.5X16

€ 1.50

6

461F1400
ref: 6

WASHER-SPRING,14MM

€ 0.50

7

314B1400
ref: 7

NUT,14MM

€ 1.00

8

34003052
ref: 8

BRACKET,FOTRST BAR,R

€ 24.00

9

340271115
ref: 9

STEP-ASSY,FR,RH

€ 24.00

10

920011252
ref: 10

BOLT,HEX HEAD,10X35

€ 3.50

11

34025004
ref: 11

SPRING-SIDE STAND

€ 4.50

12

340241043
ref: 12

STAND,SIDE

€ 34.00

13

314B1000
ref: 13

NUT,10MM

€ 0.50

14

43001058
ref: 14

LEVER-BRAKE,PEDAL

€ 30.50

15

92075220
ref: 15

DAMPER,BRAKE PEDAL

€ 2.50

16

480J2200
ref: 16

CIRCLIP-TYPE-C,22MM

€ 3.00

17

220B0508
ref: 17

SCREW-PAN-CROS,5X8

€ 0.50

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

43081002
ref: 19

BRACKET,BRAKE PEDAL

€ 2.50

20

43005032
ref: 20

SPRING,BRAKE PEDAL

€ 4.00

21

92027210
ref: 21

COLLAR,BRAKE PEDAL

€ 21.00
