CYLINDER HEAD/CYLINDER ('74-'75)

KE125-A5 KE125 1978 USA CANADA

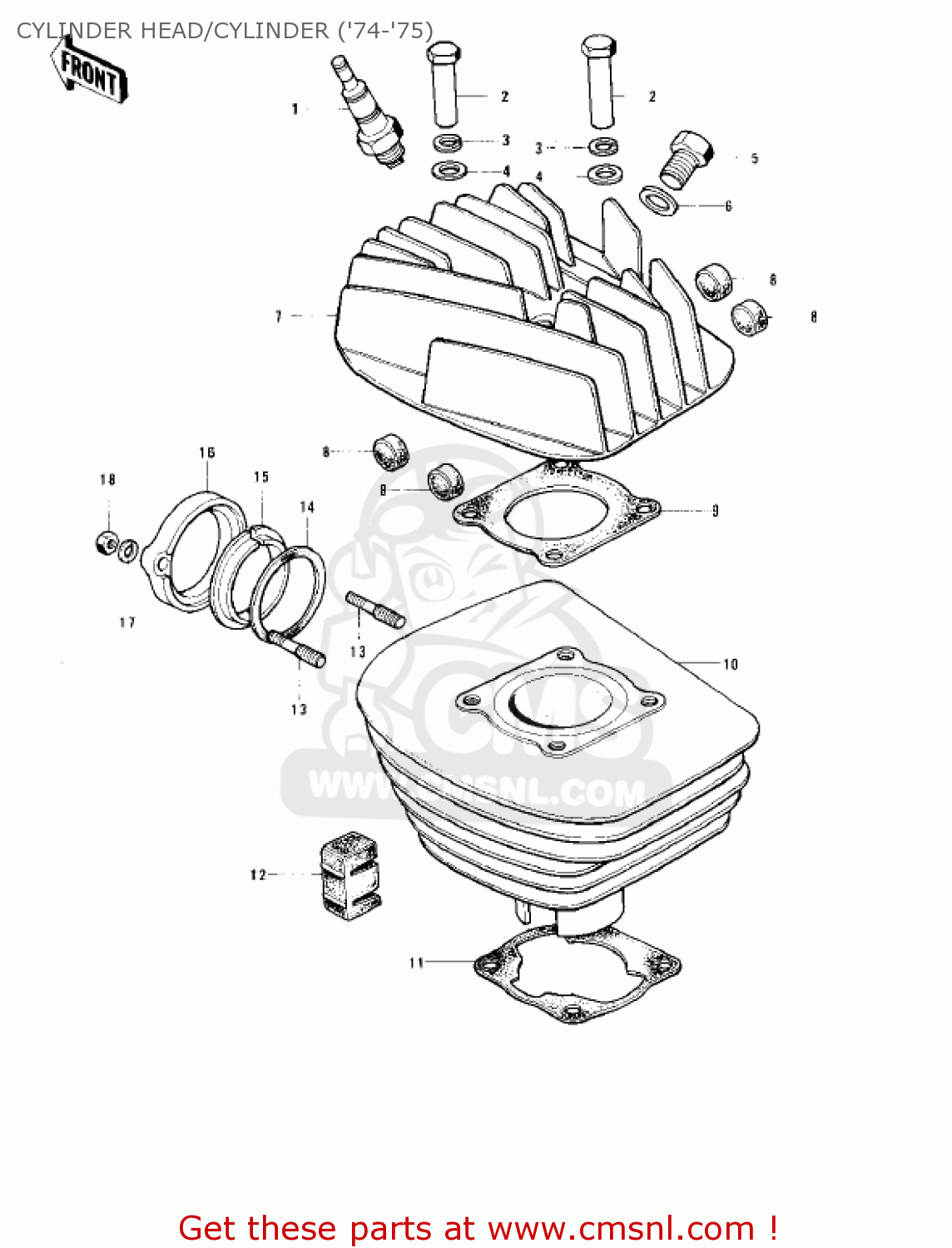

Cylinder head/cylinder ('74-'75) diagram KE125-A5 KE125 1978 USA CANADA

CYLINDER HEAD/CYLINDER ('74-'75) KE125-A5 KE125 1978 USA CANADA

CYLINDER HEAD/CYLINDER ('74-'75) KE125-A5 KE125 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92070010
ref: 1

B8HC (NGK SPARKPLUG)

€ 6.50

2

92015020
ref: 2

NUT,CAP,8MM

€ 6.00

3

461F1200
ref: 3

WASHER-SPRING,12MM

€ 0.50

4

92022072
ref: 4

WASHER,12.5X22X1.2

€ 2.50

5

92067005
ref: 5

PLUG-CYLINDER HEAD

€ 3.50

6

92065068
ref: 6

GASKET-CYL HEAD PLUG (NAS)

€ 3.00

7

1100109121
ref: 7
FLAT BLACK

CYLINDER HEAD,BLACK

€ 73.50

8

92075075
ref: 8

DAMPER,13X13.8

€ 3.00

9

11004064
ref: 9

GASKET-HEAD,CYLINDER, (NAS)

€ 6.50

10

110051030
ref: 10
FLAT BLACK

CYLINDER,F.BLACK

€ 502.00

11

11009037
ref: 11

GASKET,CYLINDER BASE (MCA)

€ 6.00

12

92075247
ref: 12

DAMPER RUBBER,CYLNDR

€ 1.50

13

92004029
ref: 13

STUD

€ 3.50

14

18067008
ref: 14

GASKET-EXHAUST PIPE (NAS)

€ 10.50

15

18070007
ref: 15

COLLAR,EXHAUST PIPE H

€ 6.50

16

18069057
ref: 16

HOLDER-EXHAUST PIPE

€ 25.50

17

461F0600
ref: 17

WASHER-SPRING,6MM

€ 0.50

18

311B0600
ref: 18

NUT,6MM

€ 0.50
