ELECTRICAL EQUIPMENT
KE100B4 1985 EUROPE UK NR

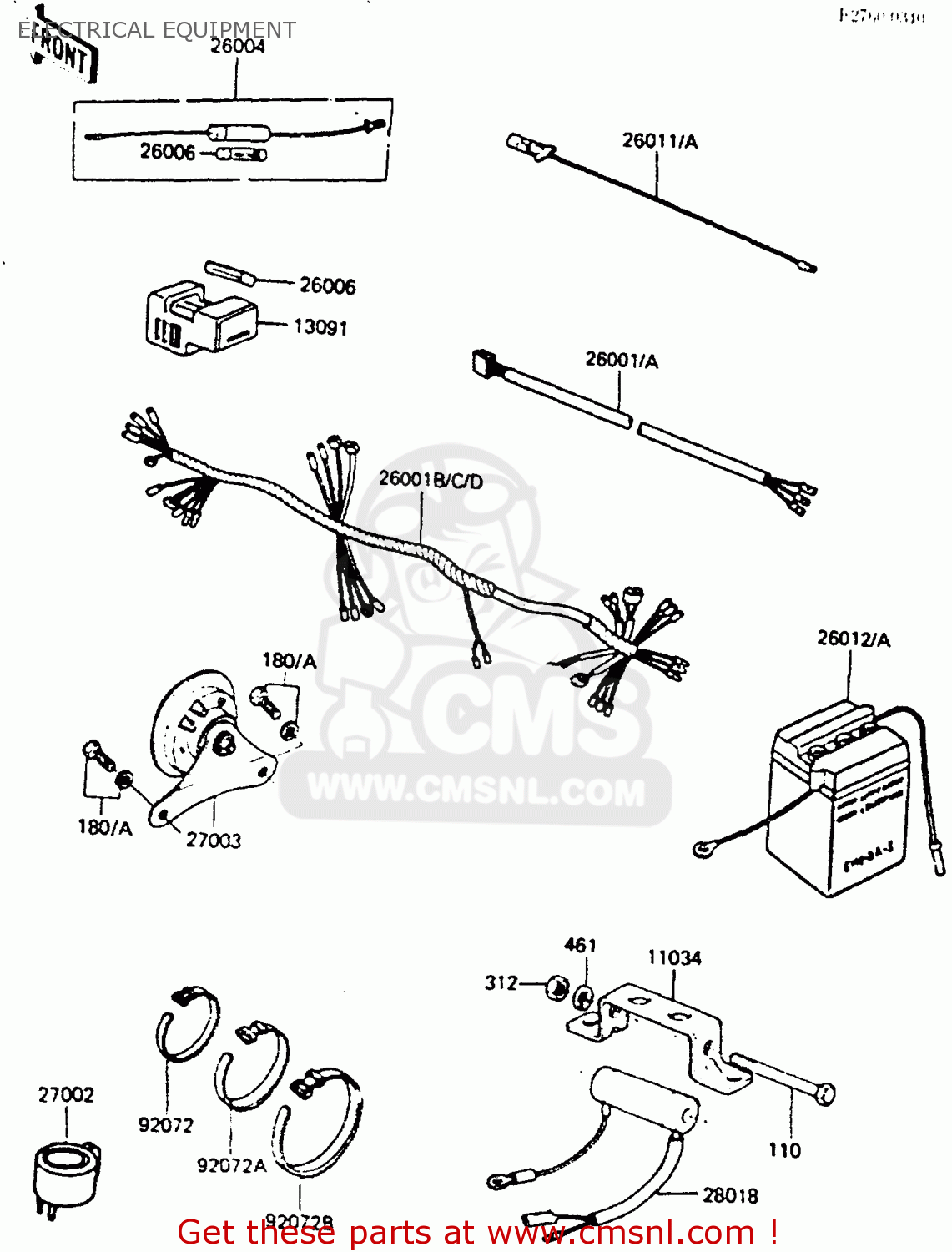

Electrical equipment diagram KE100B4 1985 EUROPE UK NR
ELECTRICAL EQUIPMENT KE100B4 1985 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11034
110341871
ref: 11034
NR
BRACKET,RESISTOR
€ 6.50
13091
26016003
ref: 13091
HOLDER,SPARE FUSE
€ 8.50
26001
260011007
ref: 26001
UK
HARNESS,TAIL LAMP
€ 10.50
26001A
260011090
ref: 26001A
NR
WIRING HARNESS,TAIL L
€ 9.50
26001C
260011625
ref: 26001C
UK
HARNESS,MAIN
€ 87.00
26001D
260011696
ref: 26001D
NR
HARNESS,MAIN
€ 80.00
26004
26004017
ref: 26004
FUSE-ASSY
€ 10.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26011
26011063
ref: 26011
NR
WIRE-LEAD,L=185
€ 5.00
26011A
260111109
ref: 26011A
NR
WIRE-LEAD,L=120
€ 3.00
26012
26012020
ref: 26012
NR
BATTERY 6V 4AH
€ 40.50
26012A
260121128
ref: 26012A
UK
BATTERY
€ 40.50
27002
27002019
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 24.00
27003
270031032
ref: 27003
HORN
€ 33.50
28018
280181003
ref: 28018
NR
RESISTOR
€ 44.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
NR
BAND,MIDDLE
€ 3.00
92072A
92072031
ref: 92072A
NR
BAND,MIDDLE
€ 3.00
92072A
9207231
ref: 92072A
UK
BAND, L=149
€ 0.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
110
110B0863
ref: 110
NR
BOLT-HEX HEAD,8X63
€ 2.50
180A
180C0625
ref: 180A
BOLT-UPSET-WS,6X25
€ 3.00
312
312B0800
ref: 312
NR
NUT,8MM
€ 0.50
461
461F0800
ref: 461
NR
WASHER-SPRING,8MM
€ 0.50
