CRANKCASE (UNITED KINGDOM)
KE100B4 1985 EUROPE UK NR

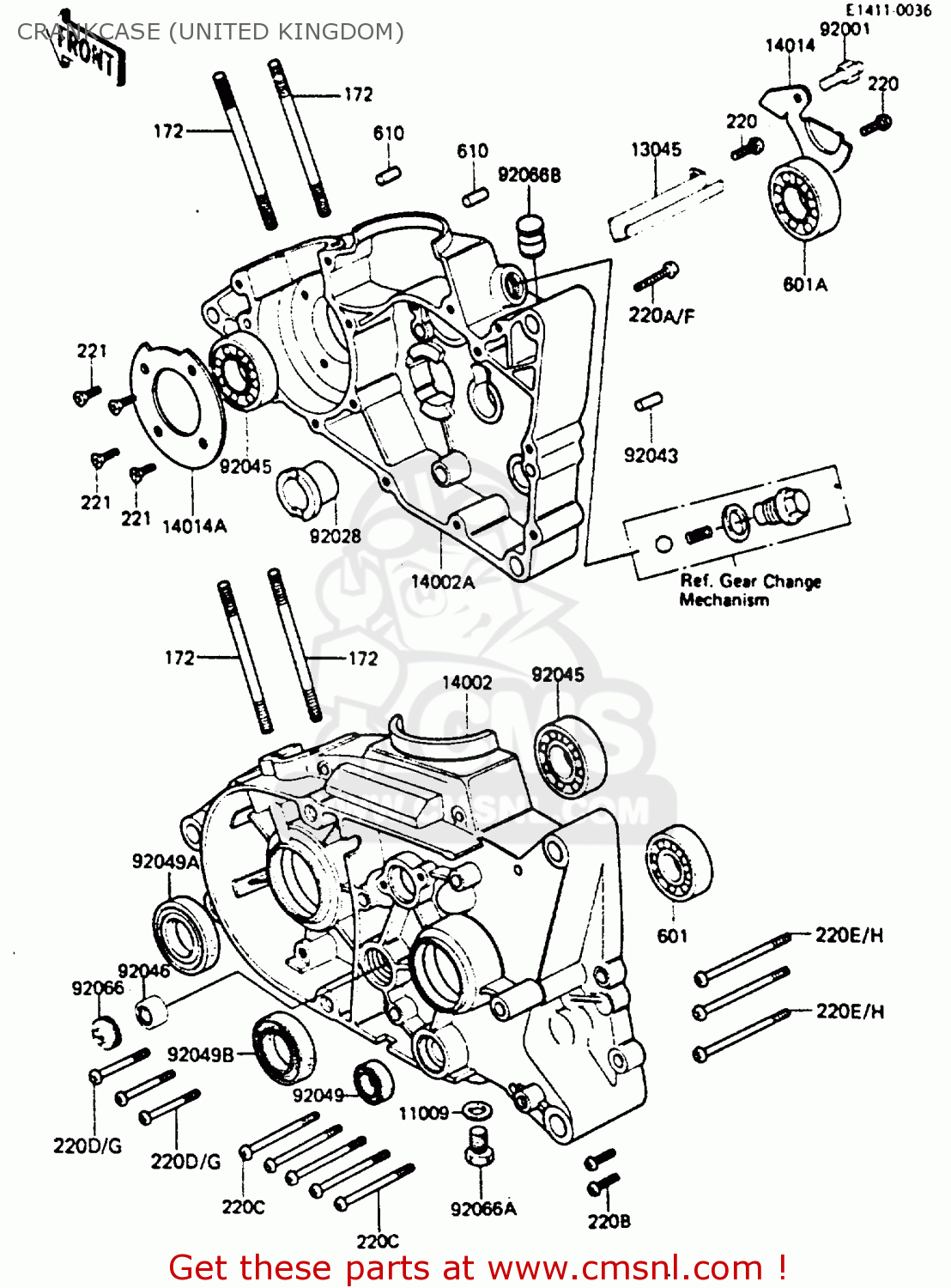

Crankcase (united kingdom) diagram KE100B4 1985 EUROPE UK NR
CRANKCASE (UNITED KINGDOM) KE100B4 1985 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
UK
GASKET, 10,5X16X1 (NAS)
€ 2.50
13045
130451003
ref: 13045
UK
RECEIVER-OIL
€ 4.00
14002
140021151
ref: 14002
UK
CRANKCASE,LH
€ 376.50
14002A
140021211
ref: 14002A
UK
CRANKCASE,RH
€ 376.50
14014
14014008
ref: 14014
UK
PLATE-POSITION
€ 4.00
14014A
14014017
ref: 14014A
UK
PLATE-POSITION
€ 3.50
92001
920011426
ref: 92001
UK
BOLT,CRANK BRG HOLDER
€ 5.00
92028
92028069
ref: 92028
UK
BUSH-OUTPUT SHAFT
€ 25.00
92043
920431322
ref: 92043
UK
PIN,8X16
€ 2.50
92045
920451032
ref: 92045
UK
BEARING-BALL,#6204
€ 25.50
92046
92046037
ref: 92046
UK
BEARING-NEEDLE,7E-HK1
€ 17.00
92049
92049004
ref: 92049
UK
OIL SEAL SB12205
€ 6.00
92049A
920491240
ref: 92049A
UK
SEAL-OIL
€ 10.50
92049B
92050013
ref: 92049B
UK
OIL SEAL SC25376
€ 9.50
92066
920661071
ref: 92066
UK
PLUG
€ 11.00
92066A
92067001
ref: 92066A
UK
PLUG-OIL DRAIN
€ 3.00
92066B
92074035
ref: 92066B
UK
PLUG,15X19
€ 4.50
172
172G08120
ref: 172
UK
BOLT-STUD,8X120
€ 7.00
220
220B0612
ref: 220
UK
SCREW-PAN HEAD,6X12
€ 1.00
220B
220B0625
ref: 220B
UK
SCREW-PAN HEAD,6X25
€ 1.50
220C
220B0640
ref: 220C
UK
SCREW-PAN HEAD,6X40
€ 2.00
220F
220X0620
ref: 220F
UK
SCREW-PAN-CROS
€ 3.00
220G
220X0660
ref: 220G
UK
SCREW-PAN-CROS
€ 2.50
220H
220X0665
ref: 220H
UK
SCREW-PAN-CROS
€ 2.50
221
221B0616
ref: 221
UK
SCREW-CNTSNK HD,6X16
€ 0.50
601
601B6004
ref: 601
UK
BEARING-BALL,#6004C3
€ 10.50
601A
601B6005
ref: 601A
UK
BEARING-BALL,#6005C3
€ 11.50
610
610A0512
ref: 610
UK
ROLLER,5X12
€ 3.00
