CLUTCH (UNITED KINGDOM)
KE100B4 1985 EUROPE UK NR

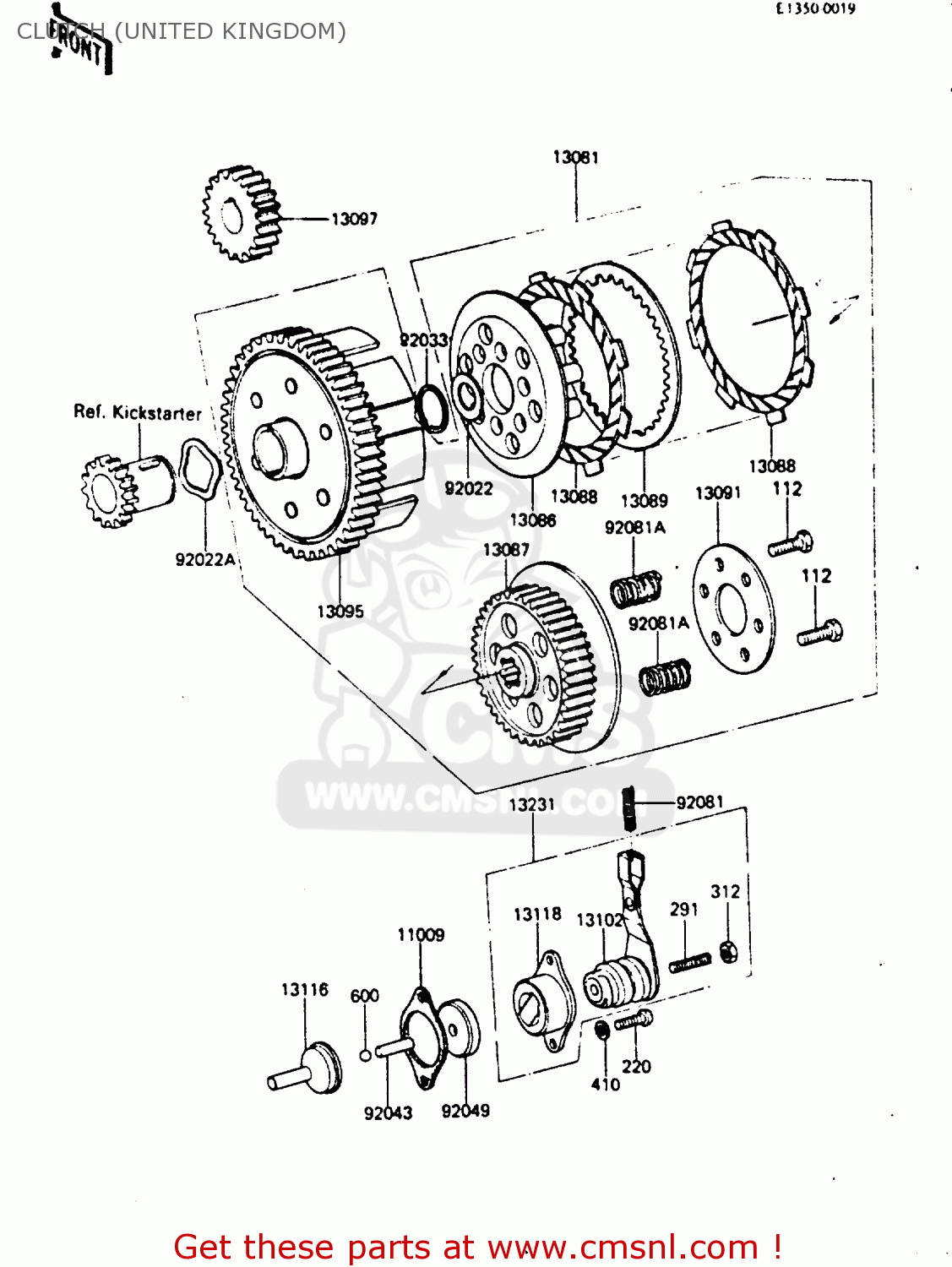

Clutch (united kingdom) diagram KE100B4 1985 EUROPE UK NR
CLUTCH (UNITED KINGDOM) KE100B4 1985 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11009
13246001
ref: 11009
UK
GASKET,CLUTCH RELEASE (MCA)
€ 3.50
13081
130811055
ref: 13081
UK
CLUTCH-ASSY
€ 164.00
13086
130861002
ref: 13086
UK
WHEEL,CLUTCH
€ 33.00
13087
130871011
ref: 13087
UK
HUB-CLUTCH
€ 74.00
13088
130881007
ref: 13088
UK
PLATE-FRICTION (MCA)
€ 11.00
13089
13089005
ref: 13089
UK
PLATE-CLUTCH STEEL (NAS)
€ 8.50
13091
13091003
ref: 13091
UK
HOLDER-CLUTCH SPRING
€ 12.50
13095
130951031
ref: 13095
UK
HOUSING-COMP-CLUTCH
€ 350.00
13097
13121032
ref: 13097
UK
GEAR-PRIMARY SPUR
€ 92.50
13102
131021016
ref: 13102
UK
RELEASE-COMP-CLUTCH,I
€ 30.00
13116
131161028
ref: 13116
UK
ROD-PUSH,CLUTCH
€ 15.00
13118
131181001
ref: 13118
UK
RELEASE-CLUTCH OUTER
€ 16.00
13231
132311008
ref: 13231
UK
RELEASE-ASSY-CLUTCH
€ 55.00
92022
92022054
ref: 92022
UK
WASHER,16.5X27X1.4
€ 4.50
92022A
920221213
ref: 92022A
UK
WASHER,WAVE,26.4X34.2
€ 2.50
92033
920331065
ref: 92033
UK
RING-SNAP,23.5MM
€ 2.50
92043
92042043
ref: 92043
UK
PIN,DOWEL,7X20
€ 3.50
92049
92050071
ref: 92049
UK
OIL SEAL
€ 7.00
92081
92081096
ref: 92081
UK
SPRING-CLUTCH RELEASE
€ 3.50
92081A
920811175
ref: 92081A
UK
SPLING,CLUTCH
€ 4.00
118
112G0520
ref: 118
UK
BOLT-UPSET
€ 2.50
220
220B0616
ref: 220
UK
SCREW-PAN HEAD,6X16
€ 2.50
291
291H0616
ref: 291
UK
SCREW,SLOTTED,6X16
€ 4.00
312
312B0600
ref: 312
UK
NUT,6MM
€ 0.50
410
410B0600
ref: 410
UK
WASHER-PLAIN-SMALL,6M
€ 0.50
600
600A0900
ref: 600
UK
BALL-STEEL,9/32
€ 2.50
