REAR HUB

KE100-B13 1994 UNITED KINGDOM

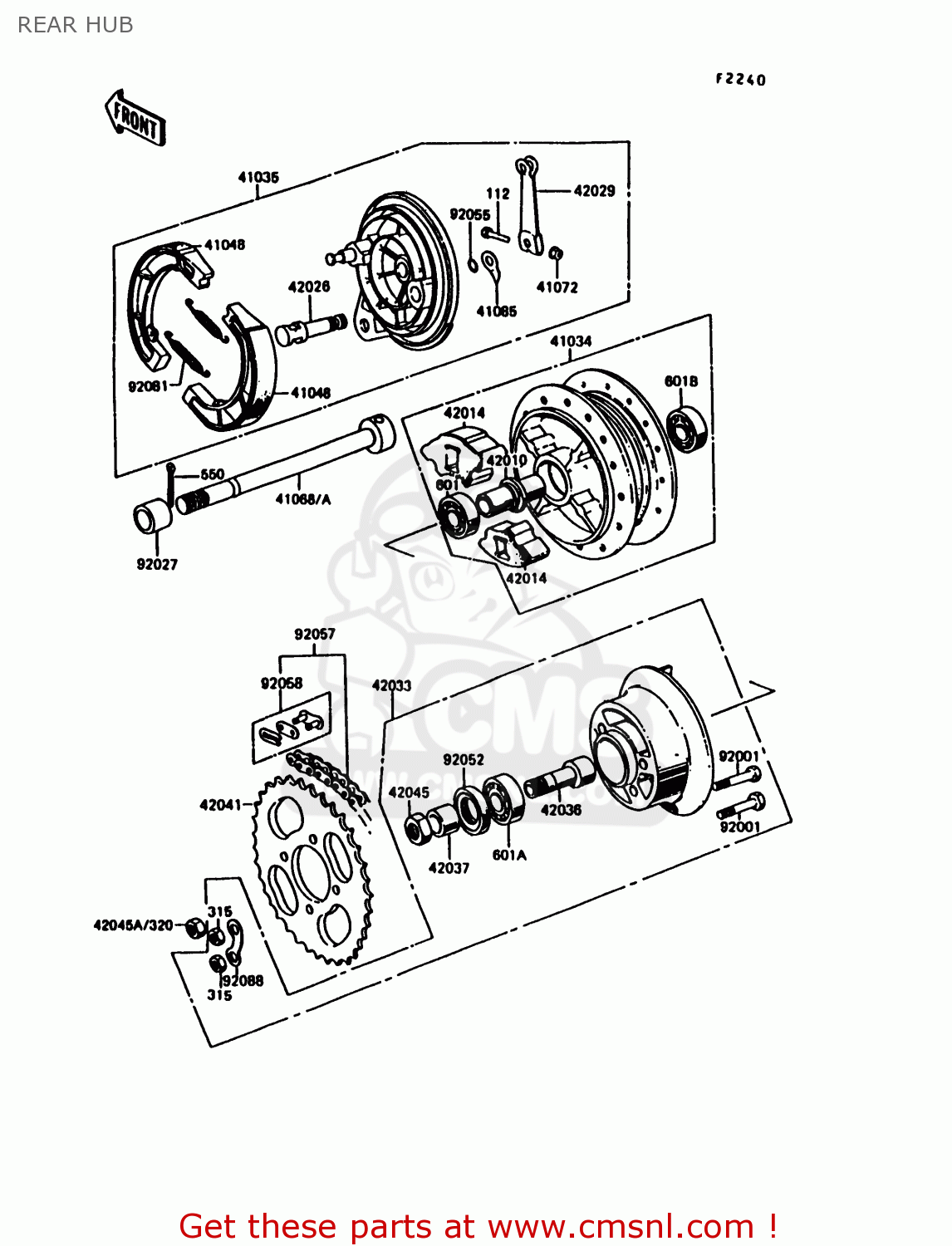

Rear hub diagram KE100-B13 1994 UNITED KINGDOM

REAR HUB KE100-B13 1994 UNITED KINGDOM
REAR HUB KE100-B13 1994 UNITED KINGDOM
REAR HUB KE100-B13 1994 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
112
112G0630
ref: 112
BOLT-UPSET
112G0630
€ 1.00
315
315B1000
ref: 315
NUT,10MM
315B1000
€ 0.50
601
601B6201G
ref: 601
BALL BEARING
€ 7.00
601A
601B6203G
ref: 601A
BALL BEARING,#6203,601B6203
€ 10.50
601B
601B6301UG
ref: 601B
BEARING-BALL,#6301UG
€ 27.00
41034
410341048
ref: 41034
DRUM-ASSY,RR
€ 275.50
41035
410351292
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 249.50
41048
410481085
ref: 41048
SHOE-BRAKE (NAS)
410481085
€ 13.00
41068
410681229
ref: 41068
AXLE
€ 26.00
41072
41072007
ref: 41072
NUT,6MM
41072007
€ 2.50
41085
41085003
ref: 41085
INDICATOR,BRAKE SHOE
41085003
€ 9.00
42010
42010005
ref: 42010
COLLAR,L=58
42010005
€ 8.50
42014
42014016
ref: 42014
DAMPER,RR HUB SHOCK
42014016
€ 12.50
42026
42026018
ref: 42026
CAM-BRAKE
42026018
€ 19.50
42029
42029020
ref: 42029
LEVER-BRAKE CAM
42029020
€ 20.50
42033
420331042
ref: 42033
COUPLING-ASSY,RR HUB
€ 151.00
42036
42036013
ref: 42036
SLEEVE,RR HUB COUPLIN
42036013
€ 23.50
42037
42037003
ref: 42037
COLLAR,17X25X12.5
42037003
€ 7.50
42041
42041104
ref: 42041
REAR SPROCKET, 39T
42041104
€ 23.50
42045
42045004
ref: 42045
NUT,16MM
42045004
€ 4.00
42045A
42045005
ref: 42045A
NUT,10MM
42045005
€ 5.00
92001
92001082
ref: 92001
BOLT-REAR SPROCKET
92001082
€ 2.00
92027
920271477
ref: 92027
COLLAR,12.2X22X28.5
920271477
€ 7.00
92052
92052003
ref: 92052
OIL SEAL-COUPLING
92052003
€ 8.50
92055
92055004
ref: 92055
RING-O,BRAKE CAM
92055004
€ 3.00
92057
920571099
ref: 92057
CHAIN,DRIVE,EK428-G
€ 249.50
92058
920581014
ref: 92058
JOINT-CHAIN,EK428-G
920581014
€ 3.50
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
920811766
€ 5.50
92088
92088011
ref: 92088
WASHER,LOCK
92088011
€ 3.00
