CLUTCH
KE100-B13 1994 UNITED KINGDOM

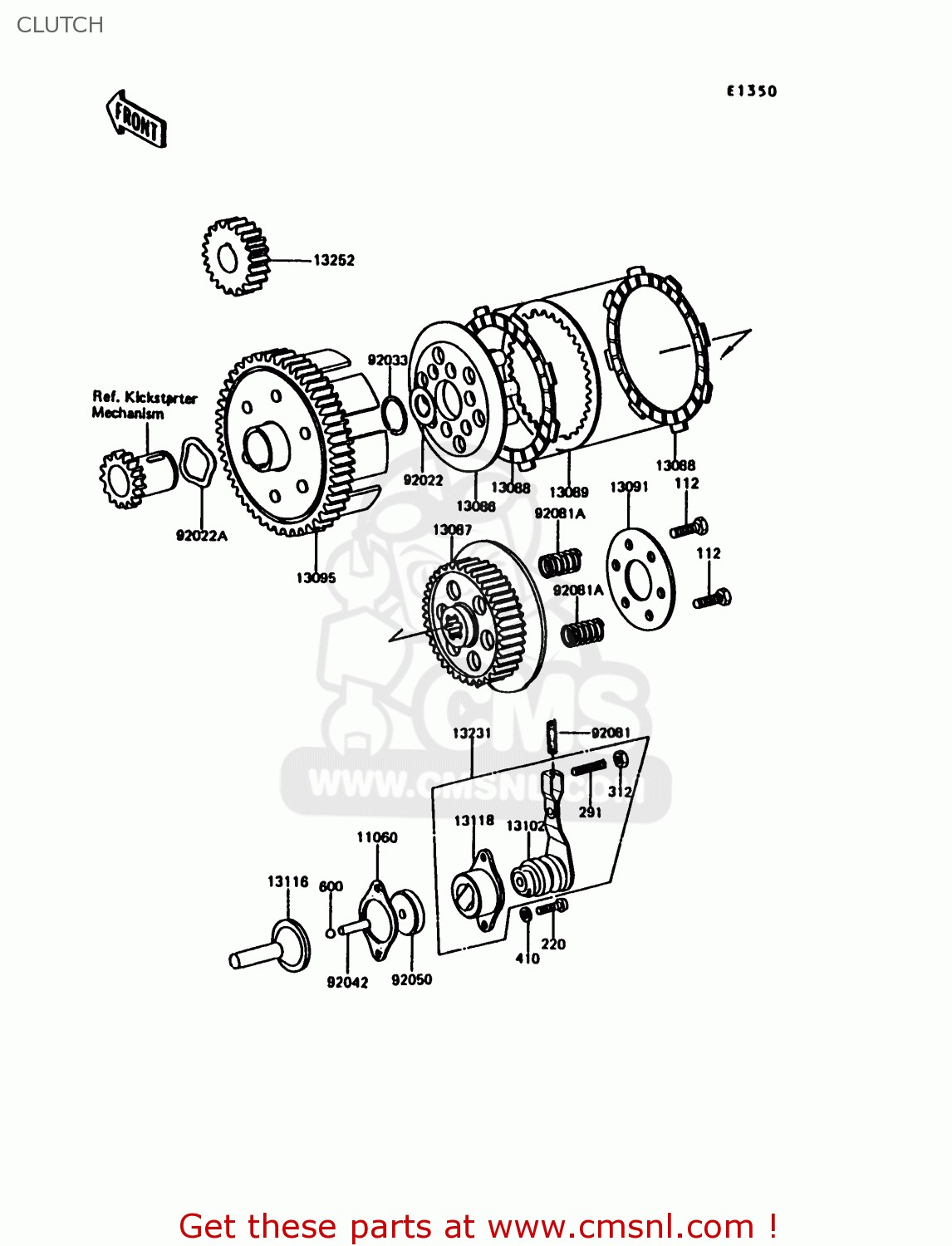

Clutch diagram KE100-B13 1994 UNITED KINGDOM
CLUTCH KE100-B13 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
291
291H0616
ref: 291
SCREW,SLOTTED,6X16
€ 4.00
312
312B0600
ref: 312
NUT,6MM
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
600
600A0900
ref: 600
BALL-STEEL,9/32
€ 2.50
11060
110601197
ref: 11060
GASKET,CLUTCH RELEASE (NAS)
€ 3.50
13086
130861002
ref: 13086
WHEEL,CLUTCH
€ 33.00
13087
130871011
ref: 13087
HUB-CLUTCH
€ 74.00
13088
130881010
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
€ 11.00
13089
130891009
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
13091
130911115
ref: 13091
HOLDER,CLUTCH SPRING
€ 12.50
13095
130951212
ref: 13095
HOUSING-COMP-CLUTCH
€ 350.00
13102
131021016
ref: 13102
RELEASE-COMP-CLUTCH,I
€ 30.00
13116
131161135
ref: 13116
ROD-PUSH,CLUTCH
€ 15.00
13118
131181001
ref: 13118
RELEASE-CLUTCH OUTER
€ 16.00
13231
132311008
ref: 13231
RELEASE-ASSY-CLUTCH
€ 55.00
13252
132521053
ref: 13252
GEAR,PRIMARY,HELICAL
€ 47.00
92022
92022054
ref: 92022
WASHER,16.5X27X1.4
€ 4.50
92022A
920221213
ref: 92022A
WASHER,WAVE,26.4X34.2
€ 2.50
92033
920331065
ref: 92033
RING-SNAP,23.5MM
€ 2.50
92042
92042043
ref: 92042
PIN,DOWEL,7X20
€ 3.50
92050
92050071
ref: 92050
OIL SEAL
€ 7.00
92081
92081096
ref: 92081
SPRING-CLUTCH RELEASE
€ 3.50
92081A
920811175
ref: 92081A
SPLING,CLUTCH
€ 4.00
