CHASSIS ELECTRICAL EQUIPMENT
KE100-B13 1994 UNITED KINGDOM

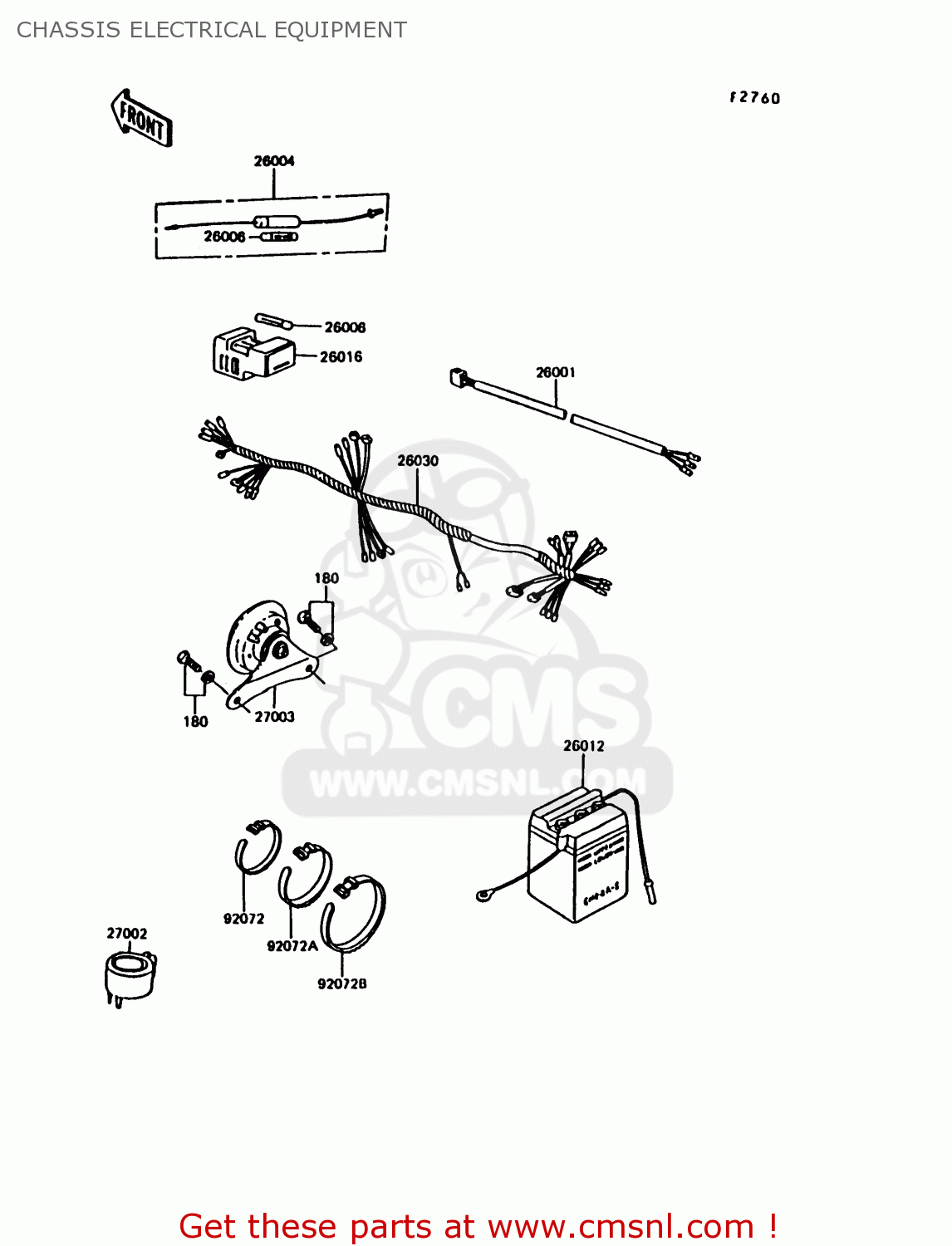

Chassis electrical equipment diagram KE100-B13 1994 UNITED KINGDOM
CHASSIS ELECTRICAL EQUIPMENT KE100-B13 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
180
180C0625
ref: 180
BOLT-UPSET-WS,6X25
€ 3.00
26001
260011007
ref: 26001
HARNESS,TAIL LAMP
€ 10.50
26004
26004017
ref: 26004
FUSE-ASSY
€ 10.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26012
260121287
ref: 26012
BATTERY,6N4-2A-5,6V 4
€ 40.50
26016
26016003
ref: 26016
HOLDER,SPARE FUSE
€ 8.50
26030
260301133
ref: 26030
HARNESS,MAIN
€ 138.00
27002
27002019
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 24.00
27003
270031052
ref: 27003
HORN
€ 38.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
