FRAME/FRAME FITTINGS

KDX80-A1 KDX80 1980 AUSTRIA

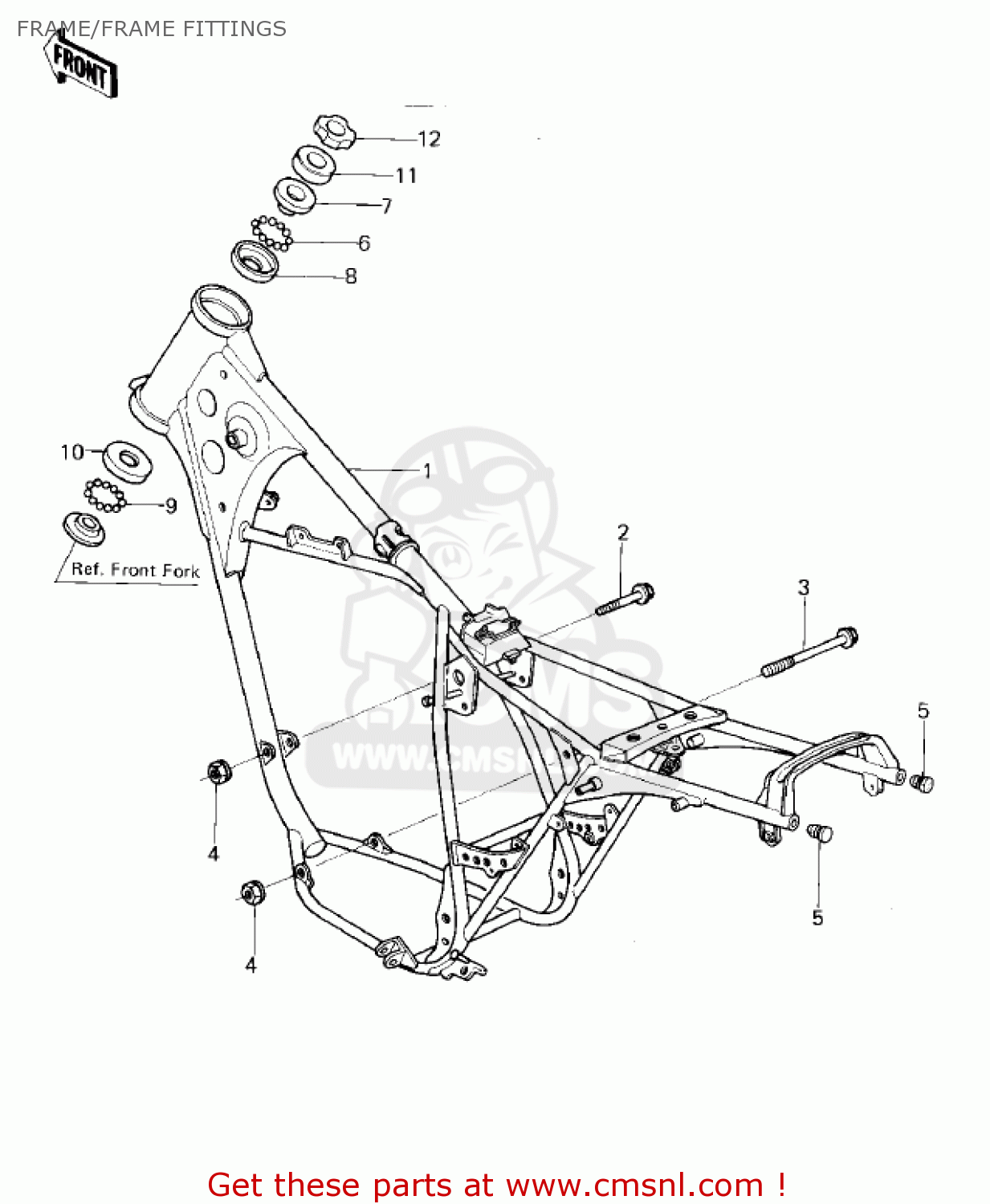

Frame/frame fittings diagram KDX80-A1 KDX80 1980 AUSTRIA

prices are in EUR

ref

part #

description

quantity

320021121
ref: 1

FRAME

€ 276.00

130G0855
ref: 2

BOLT-FLANGED,8X55

€ 1.50

920011113
ref: 3

BOLT,FLANGED,8X115

€ 4.50

920151014
ref: 4

NUT,8MM

€ 0.50

920661034
ref: 5

PLUG,FRAME END

€ 3.00

600A0600
ref: 6

BALL-STEEL,3/16

€ 0.50

92047014
ref: 7

RACE,STEERING STEM BE

€ 12.50

92048009
ref: 8

RACE,STRG STM

€ 14.00

600A0800
ref: 9

BALL-STEEL,1/4

€ 0.50

92048005
ref: 10

RACE-STEERING BEARING

€ 11.50

46098004
ref: 11

CAP-STEERING STEM

€ 4.00

92090006
ref: 12

NUT-STEERING STEM LCK

€ 10.50
