FOOTRESTS/STAND

KDX80-A1 KDX80 1980 AUSTRIA

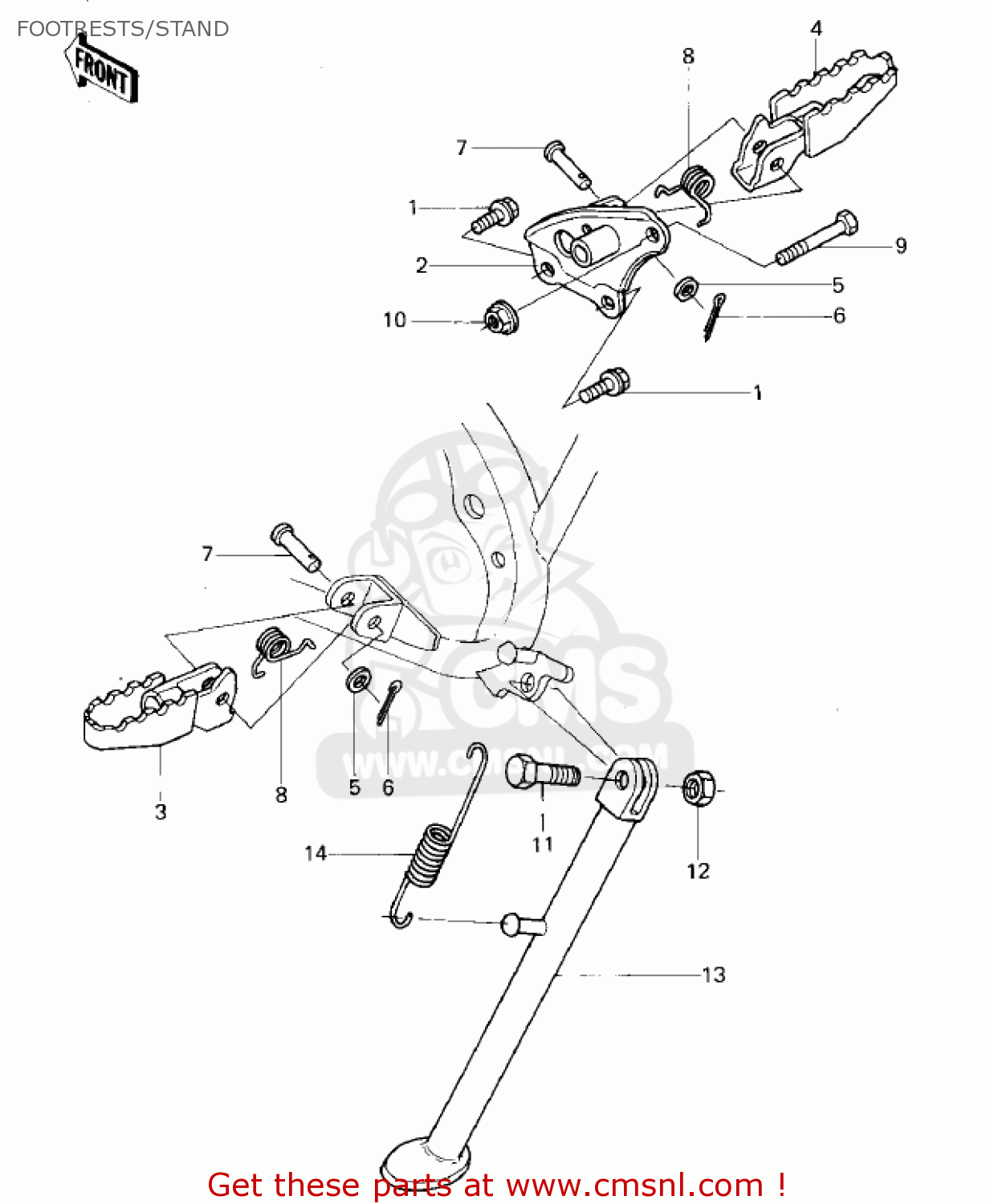

Footrests/stand diagram KDX80-A1 KDX80 1980 AUSTRIA

prices are in EUR

ref

part #

description

quantity

131B0816
ref: 1

BOLT,FLANGED,8X16

€ 0.50

340031020
ref: 2

HOLDER,STEP,R.H

€ 28.50

340281011
ref: 3

STEP,FOOTREST,L.H

€ 25.00

340281012
ref: 4

STEP,FOOTREST,R.H

€ 33.00

410B0800
ref: 5

WASHER-PLAIN-SMALL,8M

€ 0.50

550D2516
ref: 6

PIN-COTTER,2.5X16

€ 1.50

92043115
ref: 7

PIN,FOOTREST BAR FIT

€ 6.50

920811066
ref: 8

SPRING,FOOTREST STEP

€ 3.00

920011175
ref: 9

BOLT,HEX HEAD,8X42

€ 1.50

920151022
ref: 10

NUT, 8MM

€ 0.50

112G1030
ref: 11

BOLT UPSET

€ 4.50

315B1000
ref: 12

NUT,10MM

€ 0.50

340241019
ref: 13

STAND,SIDE

€ 39.00

34025005
ref: 14

SPRING-SIDE STAND

€ 5.00
