CYLINDER HEAD/CYLINDER/REED VALV

KDX80-A1 KDX80 1980 AUSTRIA

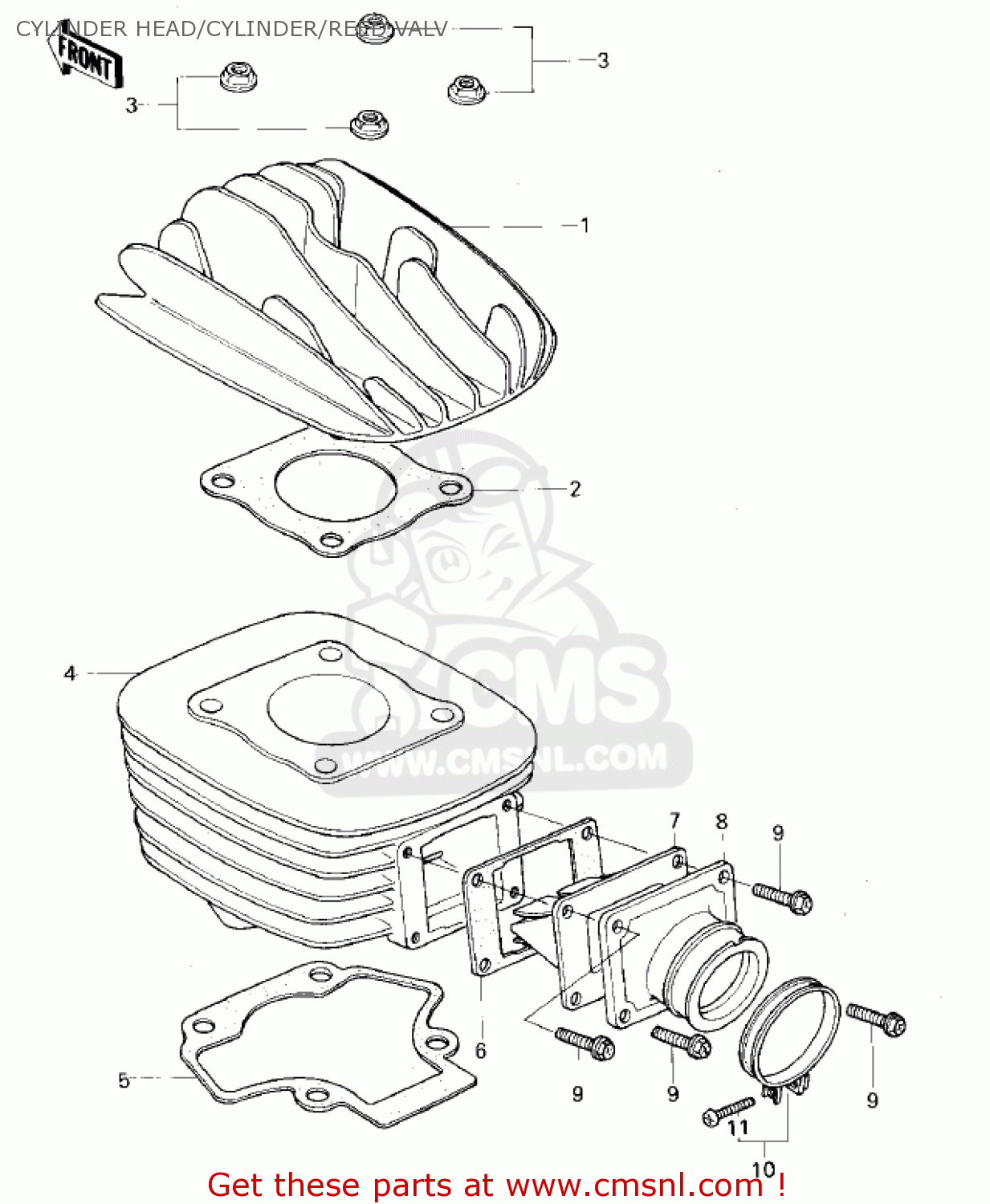

Cylinder head/cylinder/reed valv diagram KDX80-A1 KDX80 1980 AUSTRIA

prices are in EUR

ref

part #

description

quantity

110011032
ref: 1

CYLINDER HEAD

€ 111.50

110041013
ref: 2

GASKET-HEAD,CYLINDER (NAS)

€ 5.50

920151014
ref: 3

NUT,8MM

€ 0.50

110051071
ref: 4

CYLINDER

€ 404.50

110091153
ref: 5

GASKET,CYLINDER BASE (MCA)

€ 4.50

110091109
ref: 6

GASKET,REED VALVE (MCA)

€ 3.50

120211005
ref: 7

VALVE-ASSY-REED

€ 90.50

120231005
ref: 8

HOLDER-VALVE

€ 57.00

130G0620
ref: 9

BOLT,FLANGED,6X20

€ 2.50

92037178
ref: 10

CLAMP

€ 7.00

220B0525
ref: 11

SCREW-PAN-CROS,5X25

€ 2.50
