SWINGARM

KDX50-A1 KDX50 2003 USA CANADA

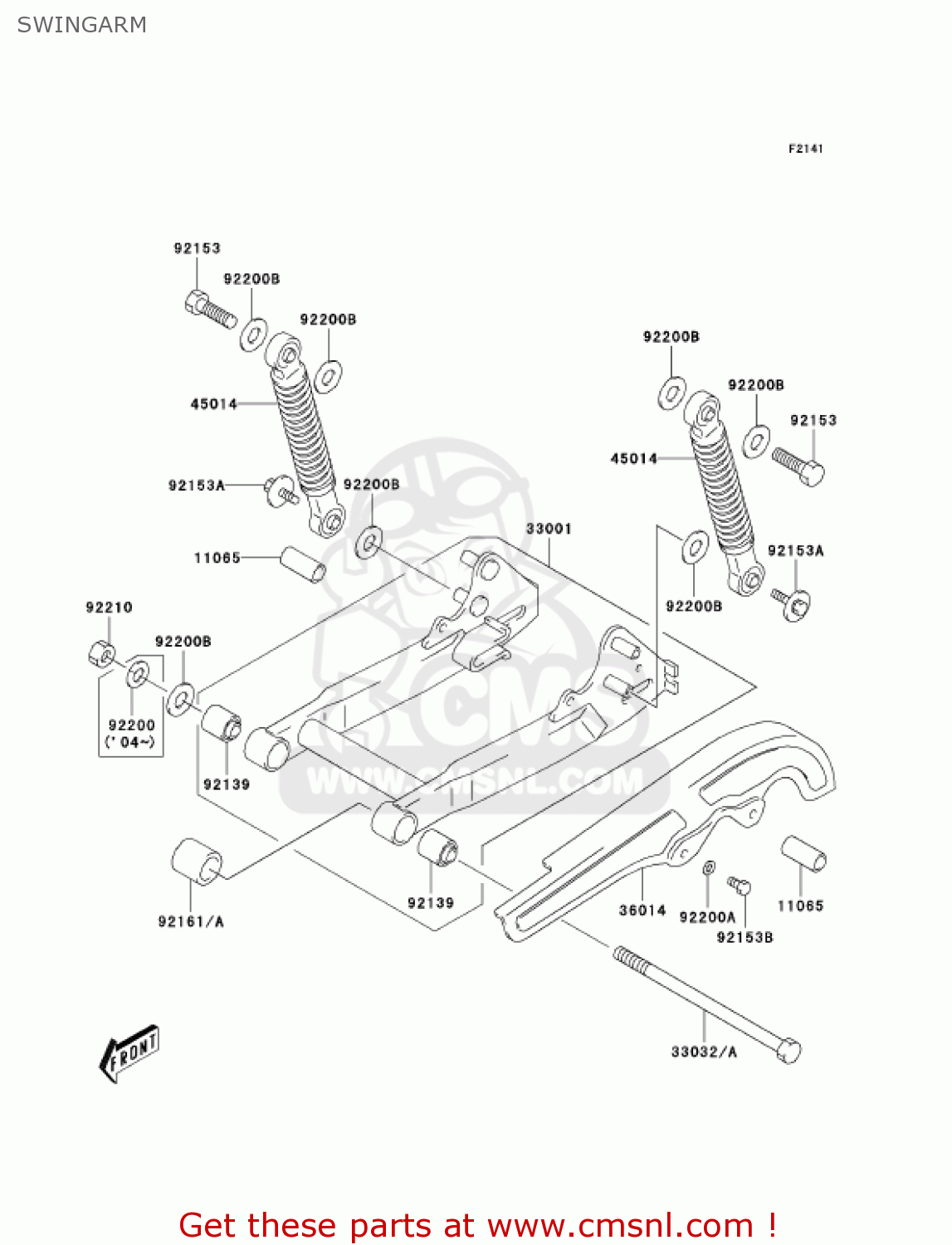

Swingarm diagram KDX50-A1 KDX50 2003 USA CANADA

SWINGARM KDX50-A1 KDX50 2003 USA CANADA
SWINGARM KDX50-A1 KDX50 2003 USA CANADA
SWINGARM KDX50-A1 KDX50 2003 USA CANADA
prices are in EUR
ref
part #
description
quantity
11065
11065S044
ref: 11065
CAP
€ 2.00
33001
33001S007530
ref: 33001
ARM-COMP-SWING,SILVER
€ 63.00
33032
33032S004
ref: 33032
SHAFT-SWING ARM
€ 7.00
36014
36014S006
ref: 36014
CASE-CHAIN
€ 18.00
45014
45014S020
ref: 45014
SHOCKABSORBER
€ 43.50
92139
92139S031
ref: 92139
BUSHING,10X22X28
€ 4.00
92153
92153S324
ref: 92153
BOLT,10X35
€ 1.50
92153A
92153S325
ref: 92153A
BOLT,6X12
€ 1.50
92153B
92153S326
ref: 92153B
BOLT,6X12
€ 1.50
92161
92161S113
ref: 92161
DAMPER
€ 1.50
92200A
92200S102
ref: 92200A
WASHER,CHAIN ADJUSTER
€ 1.50
92200B
92200S173
ref: 92200B
WASHER,10.5X22X1.6
€ 1.50
92210
92210S002
ref: 92210
NUT
€ 1.50
