BRAKE PEDAL

KDX50-A1 KDX50 2003 USA CANADA

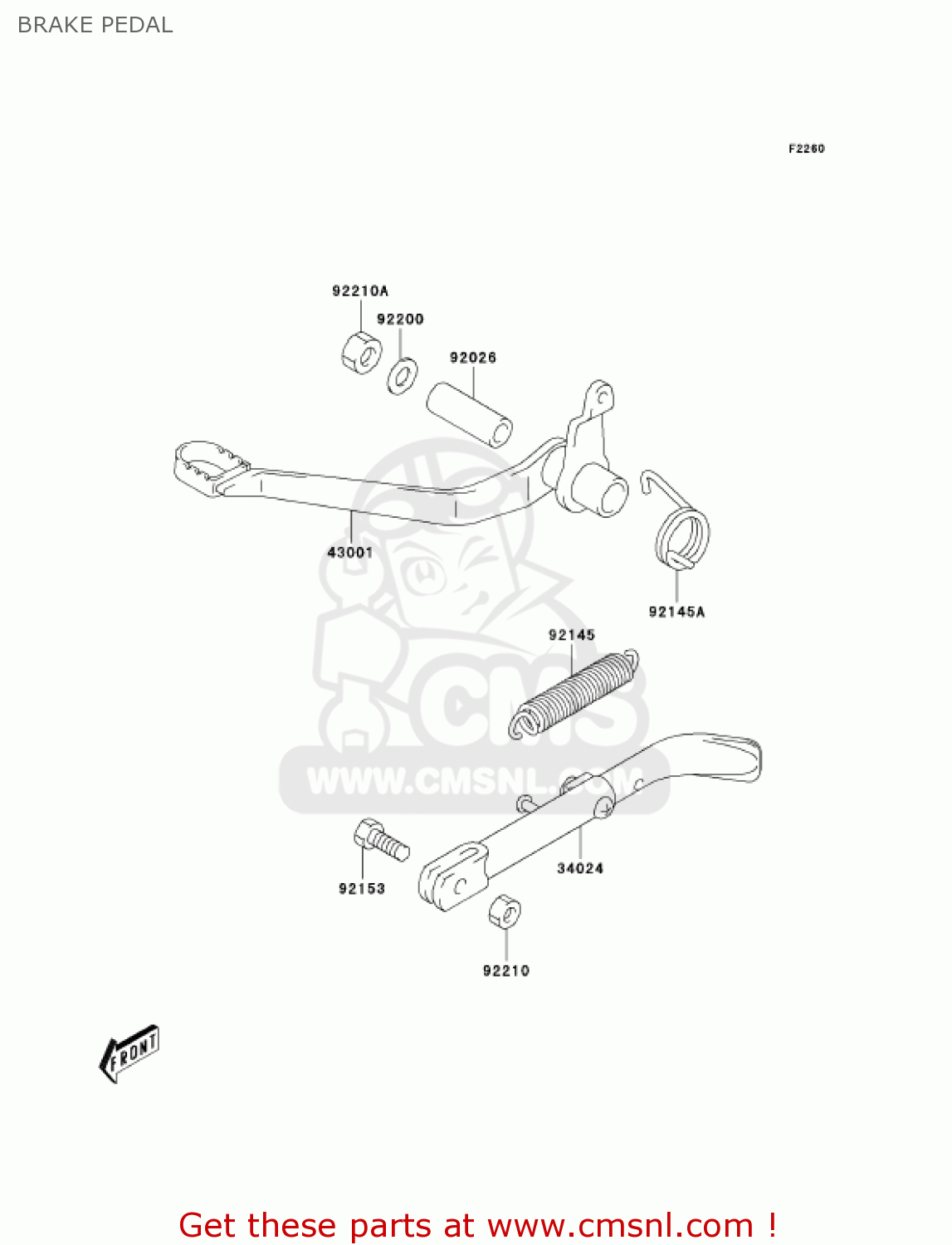

Brake pedal diagram KDX50-A1 KDX50 2003 USA CANADA

BRAKE PEDAL KDX50-A1 KDX50 2003 USA CANADA

BRAKE PEDAL KDX50-A1 KDX50 2003 USA CANADA

prices are in EUR

ref

part #

description

quantity

34024

34024S005503
ref: 34024

STAND-SIDE,BLACK

€ 9.50

43001

43001S005
ref: 43001

LEVER-BRAKE

€ 15.00

92026

92026S109
ref: 92026

SPACER,BRAKE PEDAL

€ 2.50

92145

92145S119
ref: 92145

SPRING

€ 2.00

92145A

92145S120
ref: 92145A

SPRING,BRAKE PEDAL RE

€ 2.50

92153

92153S318
ref: 92153

BOLT,8X22

€ 2.00

92200

92200S173
ref: 92200

WASHER,10.5X22X1.6

€ 1.50

92210

92210S051
ref: 92210

NUT

€ 1.00

92210A

92210S117
ref: 92210A

NUT,BRAKE PEDAL

€ 4.00
