OIL PUMP

KDX50-A1 KDX50 2003 USA CANADA

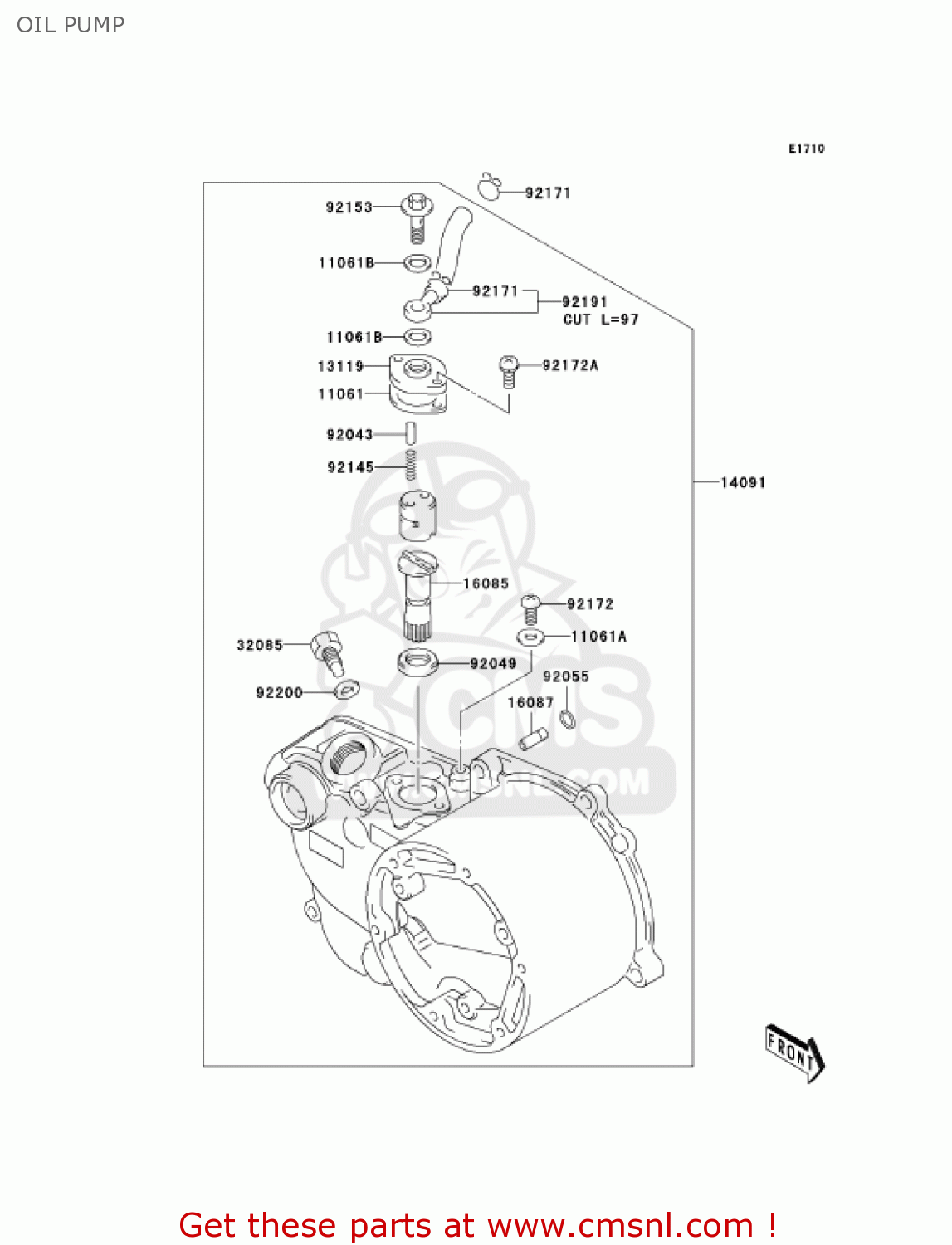

Oil pump diagram KDX50-A1 KDX50 2003 USA CANADA

OIL PUMP KDX50-A1 KDX50 2003 USA CANADA
OIL PUMP KDX50-A1 KDX50 2003 USA CANADA
OIL PUMP KDX50-A1 KDX50 2003 USA CANADA
prices are in EUR
ref
part #
description
quantity
11061
11061S043
ref: 11061
GASKET,OIL PUMP (NAS)
€ 2.50
11061A
11061S044
ref: 11061A
GASKET,AIR VENT SCREW (NAS)
€ 2.00
11061B
11061S045
ref: 11061B
GASKET,OIL HOSE (NAS)
11061S045
€ 2.00
13119
13119S001
ref: 13119
CAM-RELEASE
€ 8.50
14091
14091S097
ref: 14091
COVER,CLUTCH
€ 367.00
16085
16085S002
ref: 16085
GEAR
€ 24.50
16087
16087S002
ref: 16087
VALVE-CHECK,CRANK
€ 10.50
32085
32085S005
ref: 32085
STOPPER
€ 2.50
92043
92043S025
ref: 92043
PIN,SUB
€ 2.00
92049
92049S027
ref: 92049
SEAL-OIL,OIL PUMP
€ 3.50
92055
92055S038
ref: 92055
RING-O,CHECK VALVE
€ 3.50
92145
92145S058
ref: 92145
SPRING,OIL PUMP PLUNG
€ 2.00
92153
92153S192
ref: 92153
BOLT
€ 9.00
92171
92171S062
ref: 92171
CLAMP,OIL HOSE
€ 2.00
92172
92172S110
ref: 92172
SCREW
€ 1.50
92172A
92172S121
ref: 92172A
SCREW,OIL PUMP
€ 1.50
92191
92191S040
ref: 92191
TUBE,OIL
€ 7.00
92200
92200S084
ref: 92200
WASHER,PLUNGER
€ 1.50
