TRANSMISSION
KDX250-D4 1994 AL

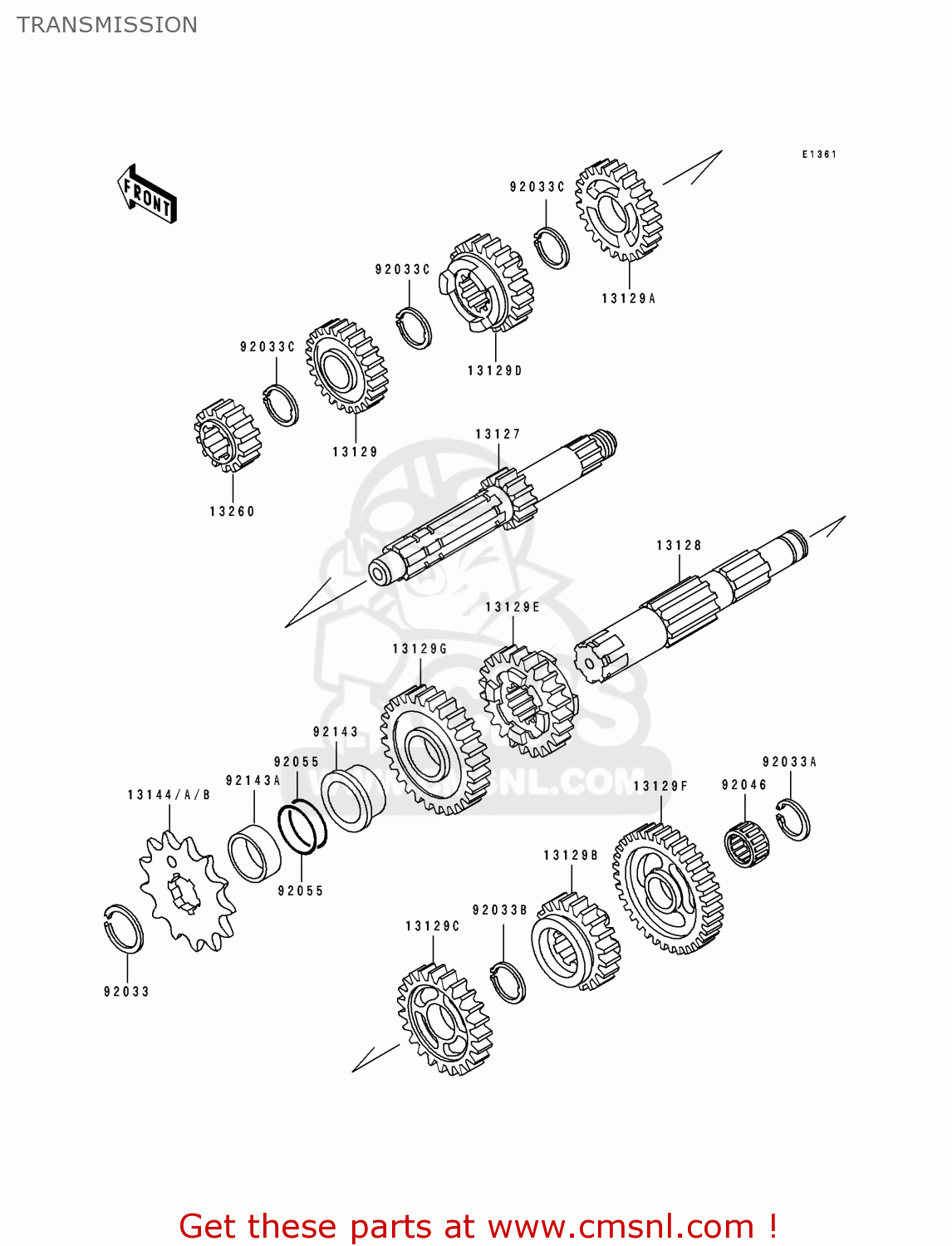

Transmission diagram KDX250-D4 1994 AL
TRANSMISSION KDX250-D4 1994 AL
×
prices are in EUR
ref
part #
description
quantity
13127
131271204
ref: 13127
SHAFT-TRANSMISSION IN
€ 135.50
13128
131281151
ref: 13128
SHAFT-TRANSMISSION OU
€ 146.00
13129
131291526
ref: 13129
GEAR,INPUT 4TH,20T
€ 89.50
13129A
131291527
ref: 13129A
GEAR,INPUT TOP,28T
€ 89.50
13129B
131291529
ref: 13129B
GEAR,OUTPUT TOP,26T
€ 85.50
13129C
131291763
ref: 13129C
GEAR OUTPUT 3RD,25T
€ 79.50
13129D
131291956
ref: 13129D
GEAR,INPUT 3RD,18T
€ 50.00
13129E
131291970
ref: 13129E
GEAR,OUTPUT 4TH,22T
€ 89.50
13129F
131291976
ref: 13129F
GEAR,OUTPUT LOW,31T
€ 218.50
13129G
131291977
ref: 13129G
GEAR,OUTPUT 2ND,30T
€ 94.50
13144
13144069
ref: 13144
SPROCKET-OUTPUT,15T
€ 34.00
13144A
131441005
ref: 13144A
SPROCKET-OUTPUT,14T
€ 30.00
13144B
131441027
ref: 13144B
ENGINE SPROCKET,13T
€ 28.50
13260
132601160
ref: 13260
GEAR,INPUT 2ND,17T
€ 50.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
920331089
ref: 92033B
RING-SNAP,25MM
€ 3.50
92033C
920331231
ref: 92033C
RING-SNAP,20MM
€ 3.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
€ 9.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431157
ref: 92143
COLLAR
€ 17.00
92143A
921431441
ref: 92143A
COLLAR,SPROCKET
€ 17.50
