MUFFLER(S)
KDX250-D4 1994 AL

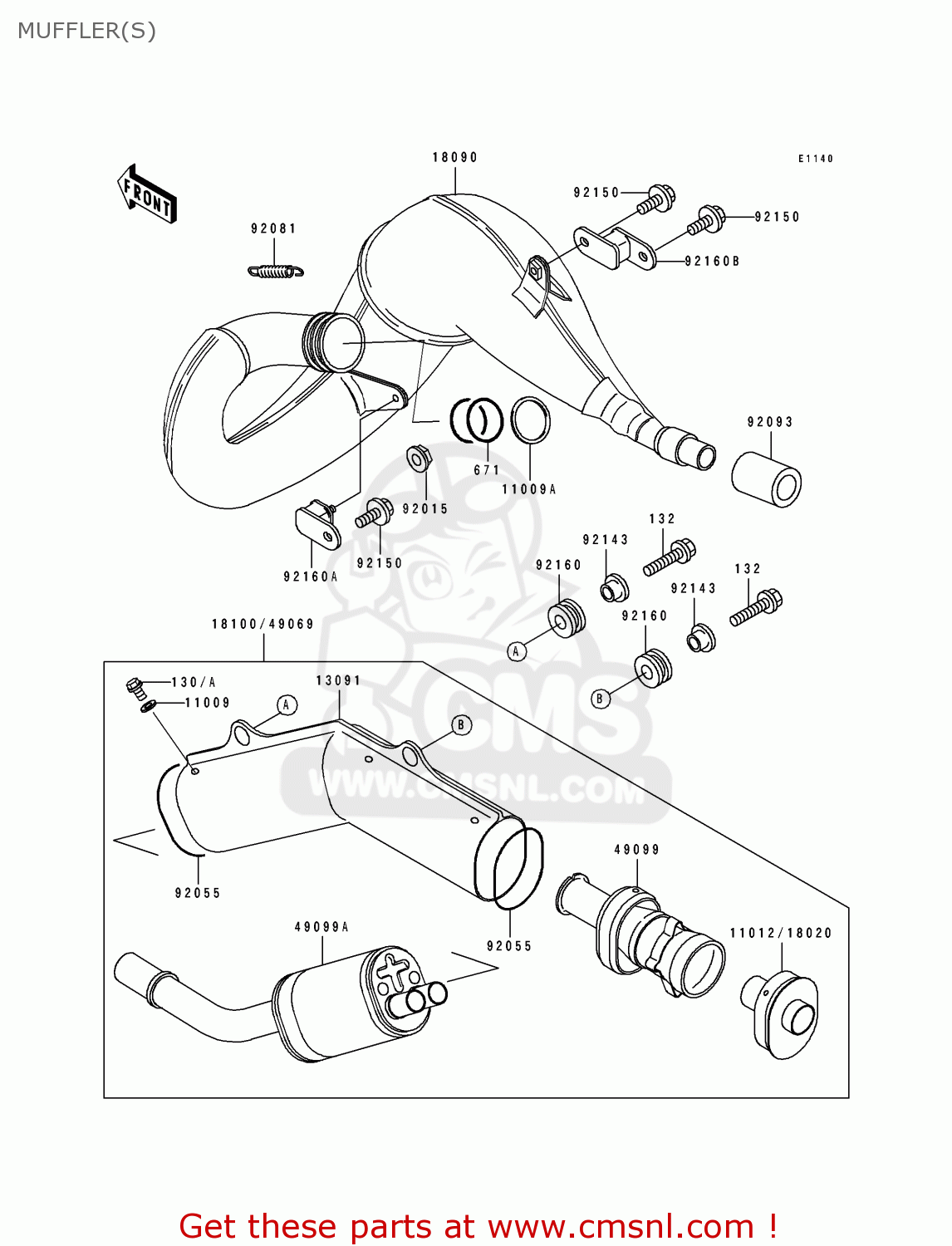

Muffler(s) diagram KDX250-D4 1994 AL
MUFFLER(S) KDX250-D4 1994 AL
×
prices are in EUR
ref
part #
description
quantity
130A
130G0510
ref: 130A
BOLT-FLANGED
€ 1.50
132
132G0825
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
671
671E2550
ref: 671
O RING,50MM
€ 10.50
11009
110091881
ref: 11009
GASKET,5.5X13X1.2 (NAS)
€ 2.50
11009A
110091949
ref: 11009A
GASKET,EXHAUST PIPE (NAS)
€ 7.50
18020
180201172
ref: 18020
BAFFLE
€ 52.50
18090
180901085
ref: 18090
BODY-COMP-MUFFLER
€ 281.50
18100
181001051
ref: 18100
BODY-ASSY-MUFFLER
€ 249.50
49099
490991298
ref: 49099
BAFFLE-PIPE MUFFLER,R
€ 60.50
49099A
490991299
ref: 49099A
BAFFLE-PIPE MUFFLER,F
€ 98.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92055
920551512
ref: 92055
RING-O,BAFFLE PIPE
€ 7.50
92081
920811526
ref: 92081
SPRING,MUFFLER CONECT
€ 7.50
92093
920931289
ref: 92093
SEAL
€ 23.00
92143
921431450
ref: 92143
COLLAR
€ 6.50
92150
921501435
ref: 92150
BOLT
€ 2.50
92160
921601151
ref: 92160
DAMPER,MUFFLER CONNEC
€ 11.00
92160A
921601176
ref: 92160A
DAMPER,MUFFLER,FR
€ 19.00
92160B
921601201
ref: 92160B
DAMPER,MUFFLER,RR
€ 19.00
