HEADLIGHT(S)

KDX250-D4 1994 AL

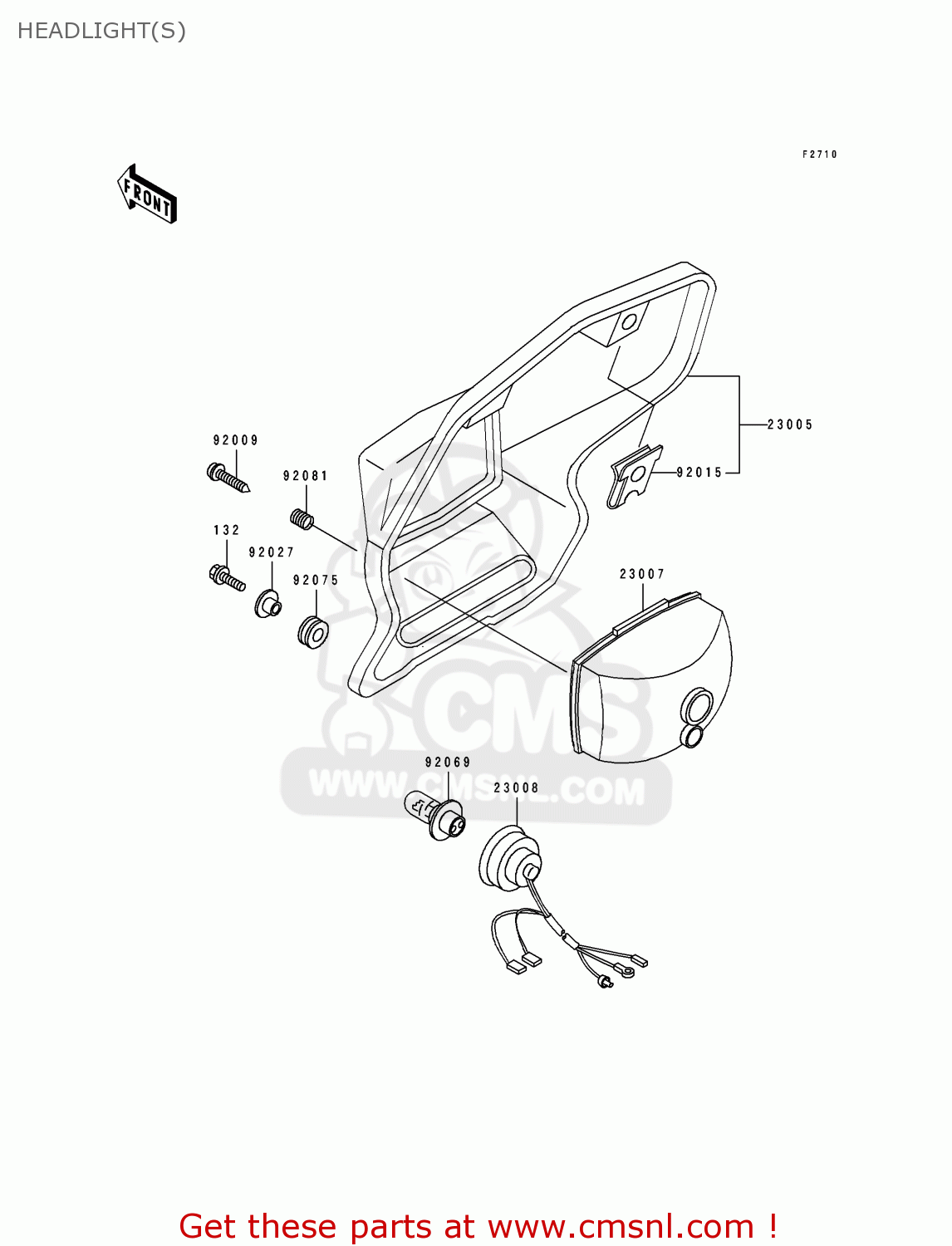

Headlight(s) diagram KDX250-D4 1994 AL

HEADLIGHT(S) KDX250-D4 1994 AL

HEADLIGHT(S) KDX250-D4 1994 AL

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

23005

230051093AC
ref: 23005

BODY-COMP-HEAD LAMP,G

€ 130.00

23007

230071246
ref: 23007

LENS-COMP,HEAD LAMP

€ 37.00

23008

230081435
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 45.50

92009

920091583
ref: 92009

SCREW

€ 1.50

92015

920151826
ref: 92015

NUT,6MM

€ 4.00

92027

920271045
ref: 92027

COLLAR

€ 3.50

92069

920691080
ref: 92069

BULB

€ 23.50

92075

920751028
ref: 92075

DAMPER RUBBER

€ 3.00

92081

920811519
ref: 92081

SPRING,FOUCUS ADJUSTI

€ 2.50
