FRAME FITTINGS
KDX250-D1 1991 USA CANADA

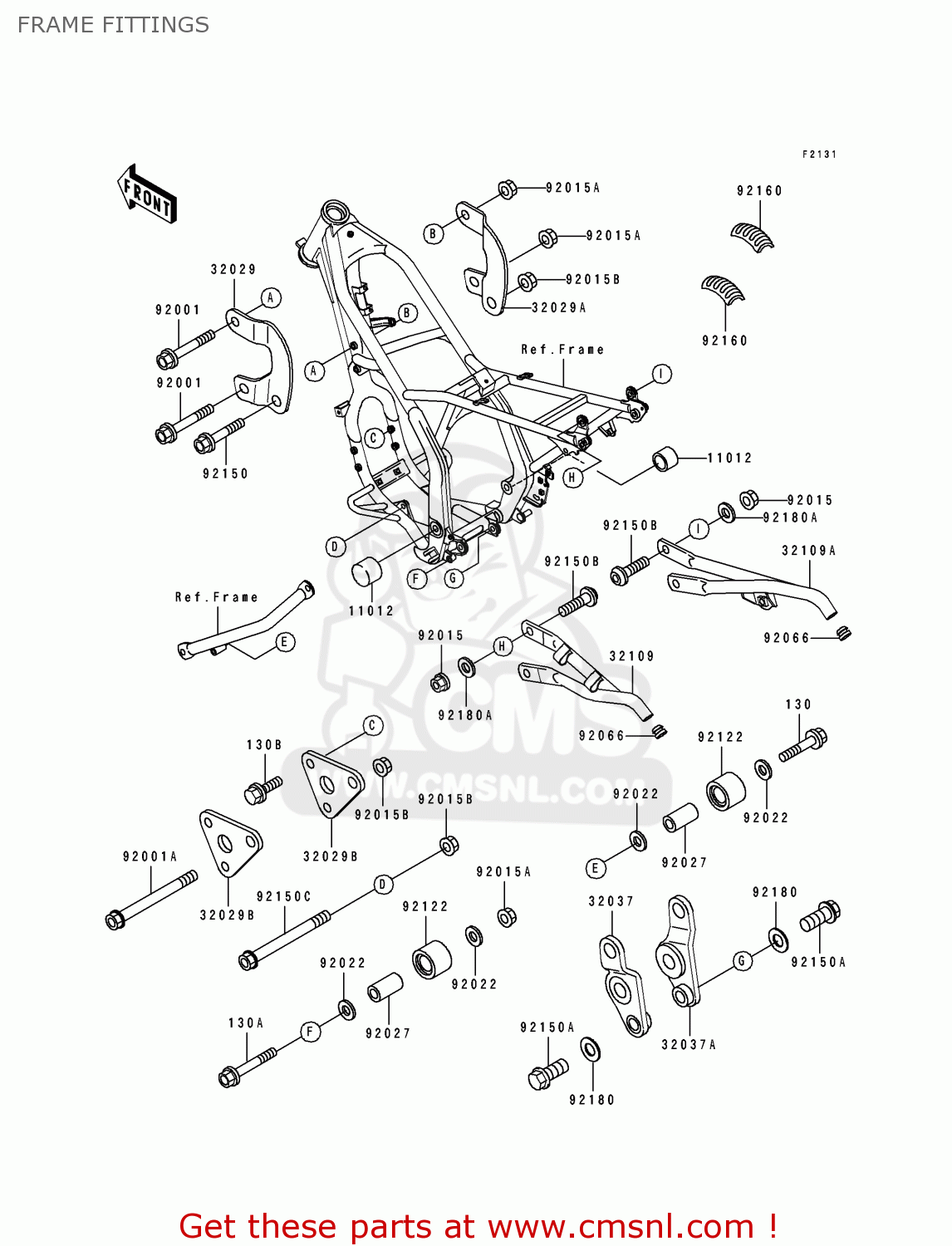

Frame fittings diagram KDX250-D1 1991 USA CANADA
FRAME FITTINGS KDX250-D1 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
130A
130G0855
ref: 130A
BOLT-FLANGED,8X55
€ 1.50
130B
130P0825
ref: 130B
BOLT-FLANGED
€ 1.00
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
32029
320291755
ref: 32029
BRACKET-ENGINE,STAY H
€ 13.50
32029A
320291756
ref: 32029A
BRACKET-ENGINE,STAY H
€ 8.00
32029B
320291757
ref: 32029B
BRACKET-ENGINE,FR
€ 8.50
32037
320371495
ref: 32037
BRACKET-SHOCKABSORBER
€ 30.50
32037A
320371496
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.50
32109
321091221CC
ref: 32109
GRIP-FRAME,LH,L.GREEN
€ 40.00
32109A
321091222CC
ref: 32109A
GRIP-FRAME,RH,L.GREEN
€ 40.00
92001
920011583
ref: 92001
BOLT,FLANGED,8X70
€ 6.00
92001A
920011701
ref: 92001A
BOLT,FLANGED,10X92
€ 6.00
92015
920151429
ref: 92015
NUT,10MM
€ 4.50
92015A
920151432
ref: 92015A
NUT,8MM
€ 4.50
92015B
920151502
ref: 92015B
NUT,FLANGED,10MM
€ 7.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92066
920661184
ref: 92066
PLUG,COWLING STAY
€ 2.50
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501359
ref: 92150A
BOLT,FLANGED,12X30
€ 5.00
92150B
921501517
ref: 92150B
BOLT,SOCKET,10X30
€ 5.50
92150C
921501624
ref: 92150C
BOLT,FLANGED,10X105
€ 6.50
92160
921601305
ref: 92160
DAMPER
€ 4.00
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
€ 2.50
92180A
921801109
ref: 92180A
SHIM,10.5X24X0.5
€ 2.50
