CRANKSHAFT/PISTON
KDX250-D1 1991 USA CANADA

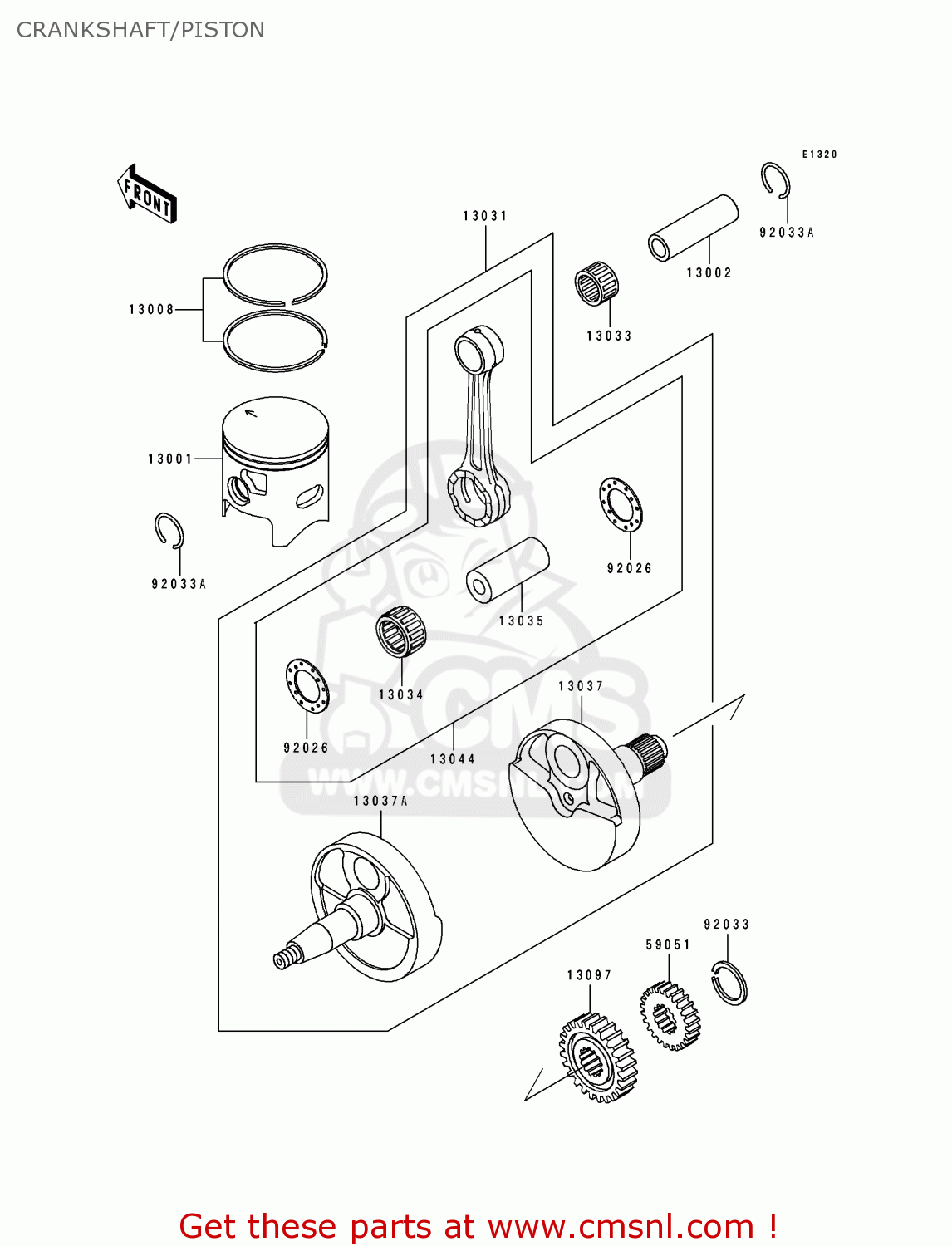

Crankshaft/piston diagram KDX250-D1 1991 USA CANADA
CRANKSHAFT/PISTON KDX250-D1 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011345
ref: 13001
PISTON-ENGINE
€ 106.50
13002
130021068
ref: 13002
PIN-PISTON
€ 19.00
13008
130081091
ref: 13008
RING-SET-PISTON
€ 27.00
13031
130311302
ref: 13031
CRANKSHAFT-COMP
€ 548.00
13033
130331010
ref: 13033
BEARING-NEEDLE,KBK18X
€ 22.50
13034
130341076
ref: 13034
BEARING-BIG END,SKTZ2
€ 46.50
13035
13035034
ref: 13035
PIN-CRANK
€ 54.50
13037
130371372
ref: 13037
CRANKSHAFT,RH
€ 262.50
13037A
130371383
ref: 13037A
CRANKSHAFT,LH
€ 262.50
13044
130445056
ref: 13044
SET-CONNECTING ROD
€ 134.50
13097
130971308
ref: 13097
GEAR-PRIMARY SPUR,20T
€ 46.00
59051
590511193
ref: 59051
GEAR-SPUR,PUMP,18T
€ 20.00
92026
920261241
ref: 92026
SPACER
€ 4.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
920331267
ref: 92033A
RING-SNAP,PISTON PIN
€ 3.00
