CRANKCASE
KDX250-D1 1991 USA CANADA

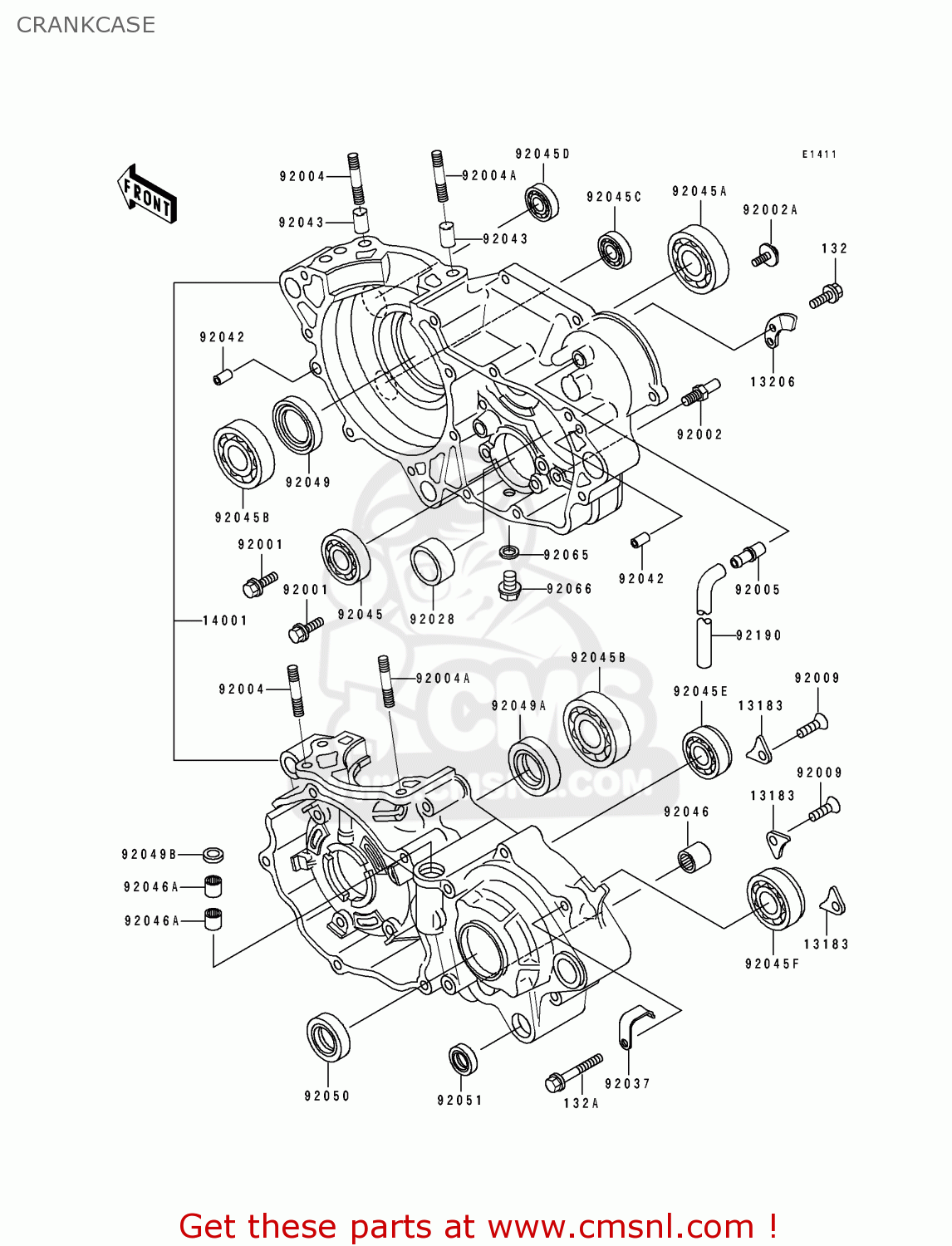

Crankcase diagram KDX250-D1 1991 USA CANADA
CRANKCASE KDX250-D1 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
13183
131831182
ref: 13183
PLATE
€ 3.00
13206
132061062
ref: 13206
GUIDE-KICK
€ 7.00
14001
140015294
ref: 14001
SET-CRANKCASE
€ 702.50
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
€ 5.00
92002A
920021659
ref: 92002A
BOLT
€ 3.00
92004
920041202
ref: 92004
STUD,10X58
€ 6.50
92004A
920041203
ref: 92004A
STUD,10X88
€ 8.50
92005
920051210
ref: 92005
FITTING,BREATHER
€ 8.50
92009
920091563
ref: 92009
SCREW,6X10
€ 2.50
92028
92028131
ref: 92028
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431266
ref: 92043
PIN,11X14X12.3
€ 1.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451134
ref: 92045A
BEARING-BALL,63/22T2C
€ 36.00
92045B
920451183
ref: 92045B
BEARING-BALL,TMB3/28J
€ 50.50
92045C
920451211
ref: 92045C
BEARING-BALL
€ 11.00
92045D
920451212
ref: 92045D
BEARING-BALL
€ 11.50
92045E
920451233
ref: 92045E
BEARING-BALL
€ 32.00
92045F
920451240
ref: 92045F
BEARING-BALL,TMB205/5
€ 52.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
€ 17.00
92046A
920461010
ref: 92046A
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491051
ref: 92049
OIL SEAL,TCJ25457
€ 22.50
92049A
920491052
ref: 92049A
OIL SEAL,TCJ20407
€ 19.50
92049B
920491262
ref: 92049B
SEAL-OIL
€ 4.00
92050
92050033
ref: 92050
SEAL-OIL,TB3040
€ 14.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661241
ref: 92066
PLUG
€ 4.00
92190
921901256
ref: 92190
TUBE
€ 4.50
