RADIATOR
KDX200H6F KDX200 2006

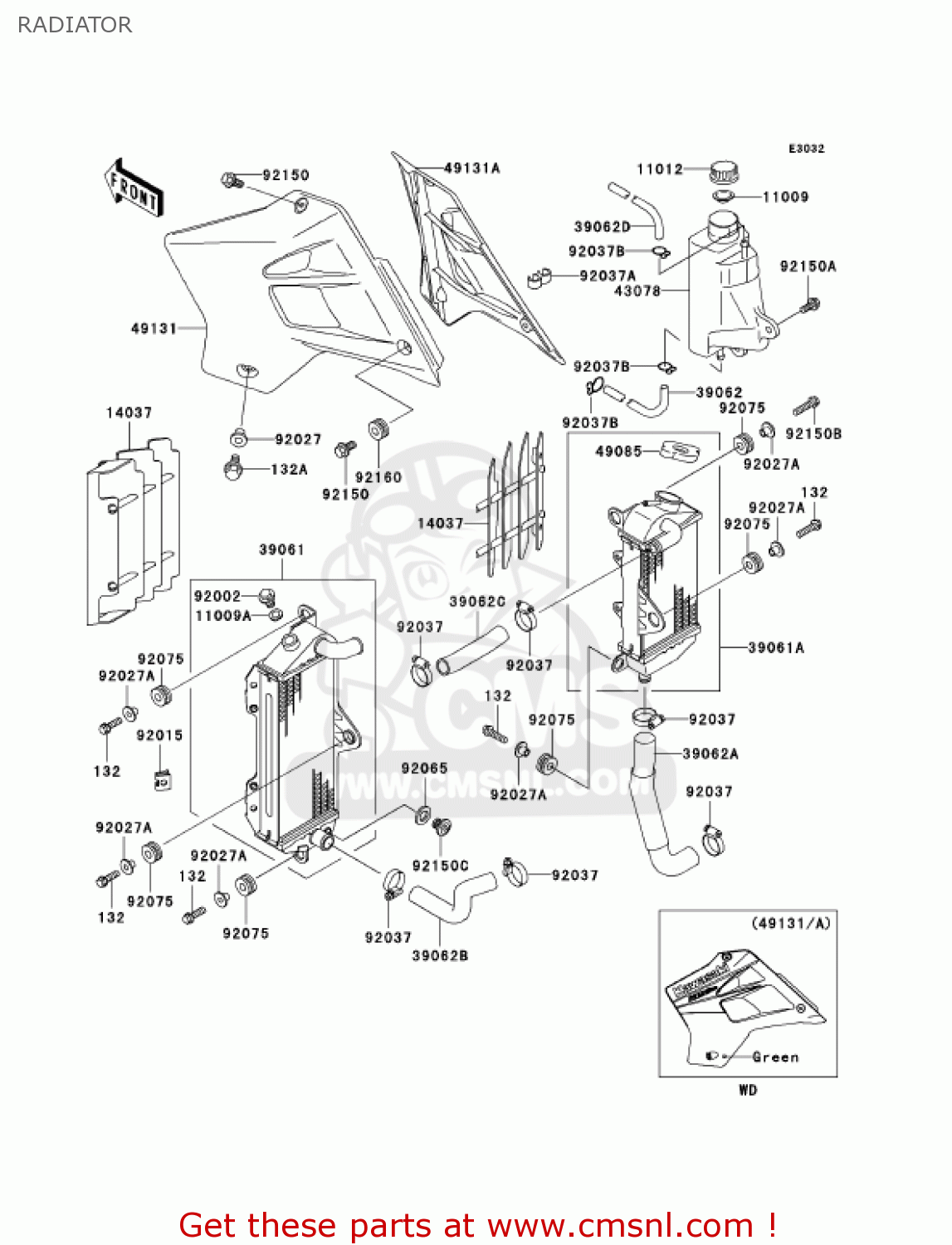

Radiator diagram KDX200H6F KDX200 2006
RADIATOR KDX200H6F KDX200 2006
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371099RZ
ref: 14037
SCREEN,WHITE
€ 15.50
39061
390611239
ref: 39061
RADIATOR-ASSY,LH
€ 391.50
39061A
390611240
ref: 39061A
RADIATOR-ASSY,RH
€ 391.50
39062
390621423
ref: 39062
HOSE-COOLING,5X9X700
€ 22.50
39062A
390621579
ref: 39062A
HOSE-COOLING,RADIATOR
€ 24.50
39062B
390621580
ref: 39062B
HOSE-COOLING,HEAD-RAD
€ 17.50
39062C
390621609
ref: 39062C
HOSE-COOLING,RADIATOR
€ 14.00
39062D
390621619
ref: 39062D
HOSE-COOLING,5X9X368.
€ 3.50
43078
430781142
ref: 43078
RESERVOIR
€ 22.00
49085
490851070
ref: 49085
CAP-ASSY-PRESSURE
€ 37.50
49131
491315061290
ref: 49131
SHROUD-ENGINE,LH,L.GR
€ 79.00
49131A
491315062290
ref: 49131A
SHROUD-ENGINE,RH,L.GR
€ 79.00
132
132Y0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132Y0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92037A
920371603
ref: 92037A
CLAMP
€ 3.00
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92150A
921501504
ref: 92150A
BOLT
€ 3.00
92150B
921501507
ref: 92150B
BOLT
€ 3.00
92150C
921501867
ref: 92150C
BOLT 10 X 10
€ 3.50
92160
921601167
ref: 92160
DAMPER,10X20X12
€ 3.00
