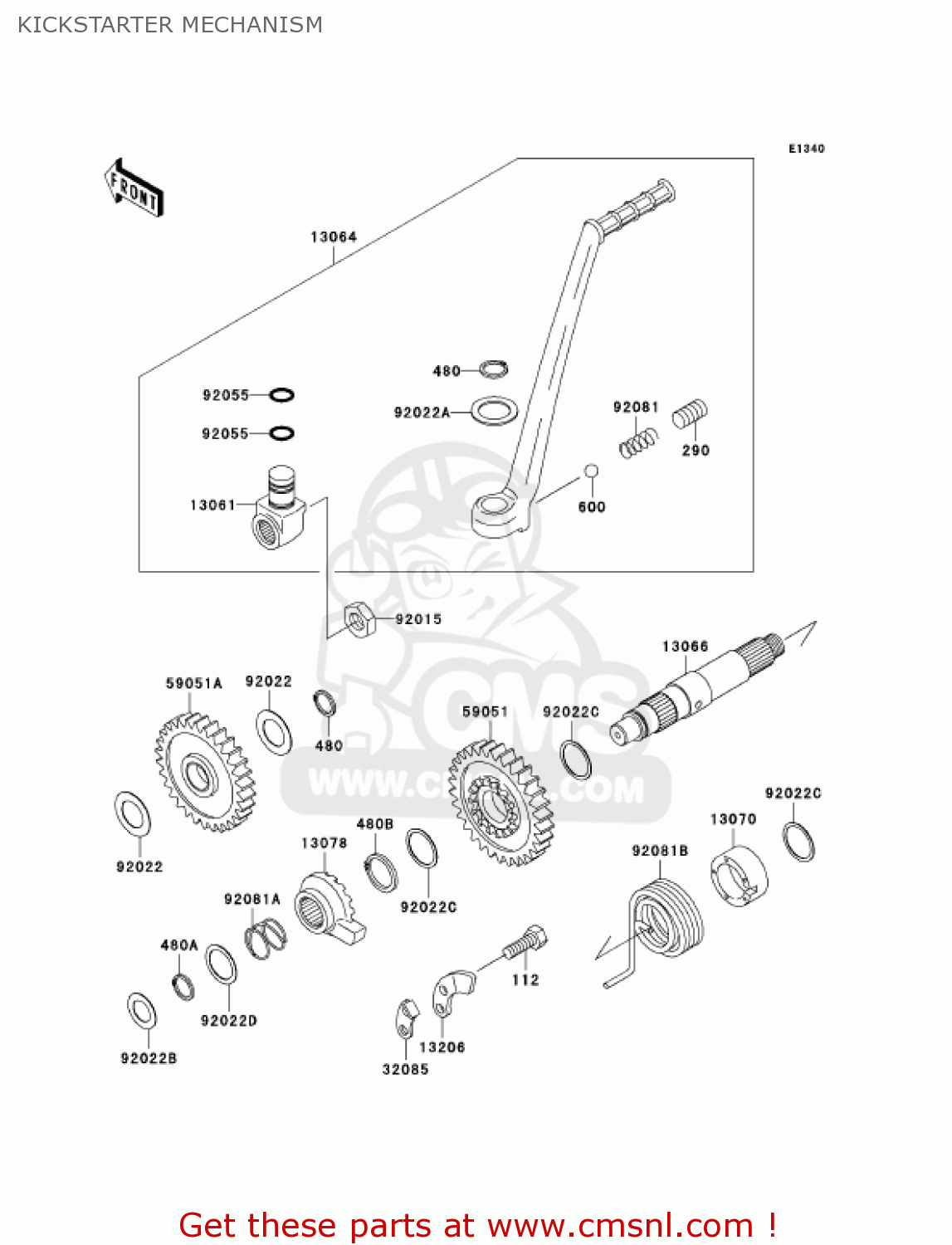

KICKSTARTER MECHANISM

ref

part #

description

quantity

112

112Y0618
ref: 112

BOLT-UPSET

€ 2.50

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

480

480J1500
ref: 480

CIRCLIP-TYPE-C,15MM

€ 1.00

480A

480J1600
ref: 480A

CIRCLIP-TYPE-C,16MM

€ 2.50

480B

480J1800
ref: 480B

CIRCLIP-TYPE-C,18MM

€ 1.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

13061

130611487
ref: 13061

BOSS,KICK PEDAL

€ 62.50

13064

130641174
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 173.00

13066

130661071
ref: 13066

SHAFT-KICK

€ 81.50

13070

130701063
ref: 13070

GUIDE,KICK SPRING

€ 14.00

13078

130781063
ref: 13078

RATCHET

€ 61.50

13206

132061061
ref: 13206

GUIDE-KICK

€ 7.00

32085

320851016
ref: 32085

STOPPER,KICKSTARTER

€ 5.50

59051

590511224
ref: 59051

GEAR-SPUR,KICKSTARTER

€ 90.50

59051A

590511309
ref: 59051A

GEAR-SPUR,KICK,30T

€ 74.00

92015

920151958
ref: 92015

NUT

€ 3.00

92022

920221045
ref: 92022

WASHER,15.3X25X0.5

€ 3.00

92022A

920221205
ref: 92022A

WASHER,16.3X24X1

€ 2.50

92022B

92022269
ref: 92022B

WASHER,PLAIN

€ 1.00

92022C

92022271
ref: 92022C

WASHER,PLAIN

€ 3.50

92022D

92022315
ref: 92022D

WASHER, 16.8X22X0.5

€ 4.00

92055

92055061
ref: 92055

RING-O,10X1.5

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811926
ref: 92081B

SPRING,KICKSTARTER

€ 11.50
