OWNER'S TOOLS

KDX200H6F KDX200 2006

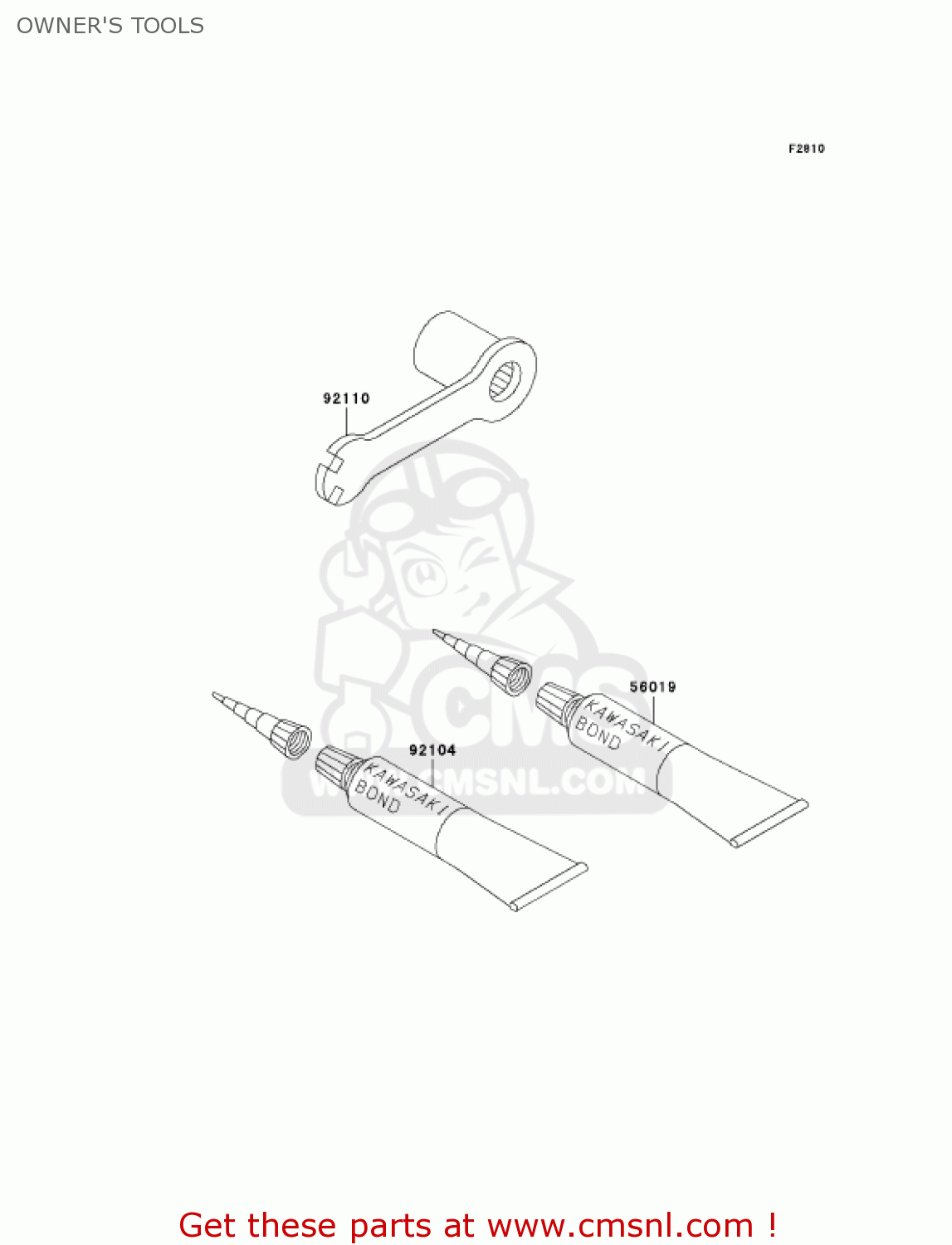

Owner's tools diagram KDX200H6F KDX200 2006

OWNER'S TOOLS KDX200H6F KDX200 2006
OWNER'S TOOLS KDX200H6F KDX200 2006
OWNER'S TOOLS KDX200H6F KDX200 2006
prices are in EUR
ref
part #
description
quantity
56019
56019120
ref: 56019
BOND,#10
56019120
€ 41.00
92104
92104002
ref: 92104
LIQUID GASKET
€ 69.50
92110
921101142
ref: 92110
TOOL-WRENCH
€ 12.00
