MUFFLER(S)
KDX200-H4 1998 USA CANADA

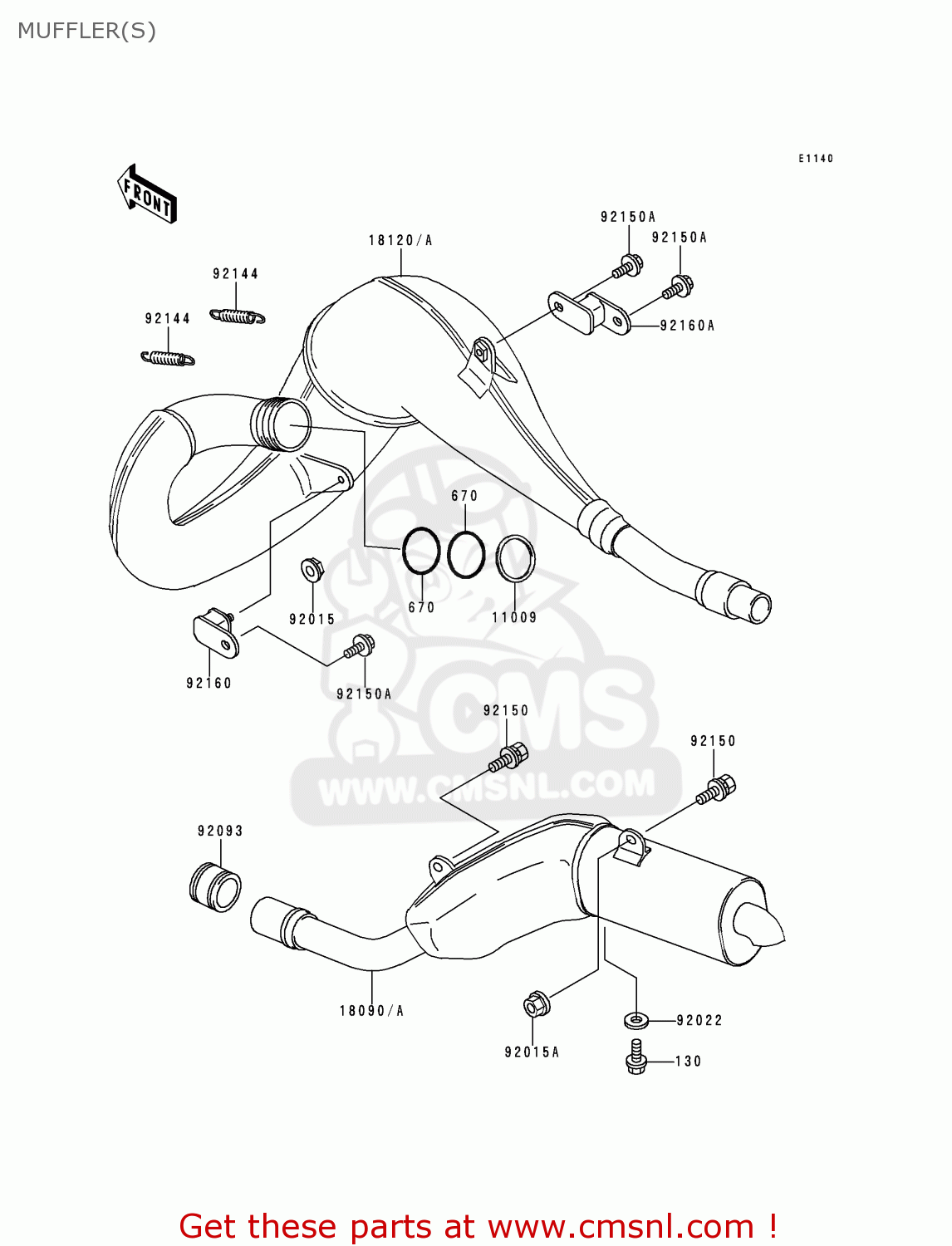

Muffler(s) diagram KDX200-H4 1998 USA CANADA
MUFFLER(S) KDX200-H4 1998 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0812
ref: 130
BOLT-FLANGED
€ 0.50
670
670E3039
ref: 670
O RING,39MM
€ 10.50
11009
110091995
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 8.50
18090A
180901566
ref: 18090A
BODY-COMP-MUFFLER
€ 292.50
18120A
181201074
ref: 18120A
CHAMBER-EXHAUST
€ 373.00
92015
920151365
ref: 92015
NUT,6MM
€ 3.00
92015A
920151668
ref: 92015A
NUT
€ 3.00
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92093
920931328
ref: 92093
SEAL,MUFFLER CONNECTI
€ 28.00
92144
921441035
ref: 92144
SPRING
€ 7.00
92150
921501859
ref: 92150
BOLT,SOCKET,5X10
€ 2.00
92150A
921501891
ref: 92150A
BOLT
€ 2.50
92160
921601176
ref: 92160
DAMPER,MUFFLER,FR
€ 19.00
92160A
921601201
ref: 92160A
DAMPER,MUFFLER,RR
€ 19.00
