CRANKSHAFT/PISTON(S)
KDX200-H4 1998 USA CANADA

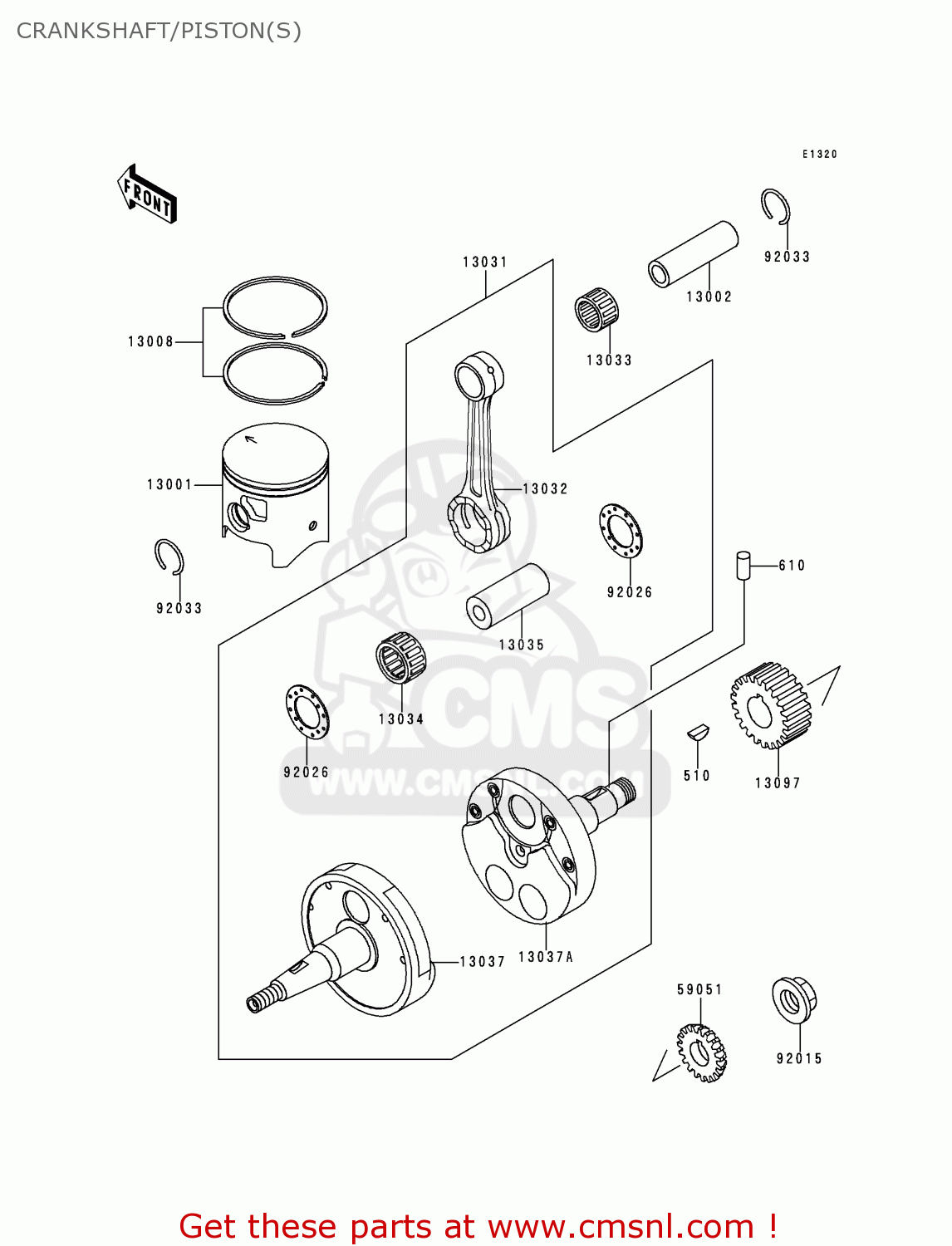

Crankshaft/piston(s) diagram KDX200-H4 1998 USA CANADA
CRANKSHAFT/PISTON(S) KDX200-H4 1998 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
510
510A5100
ref: 510
KEY-WOODRUFF
€ 1.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
13001
130011317
ref: 13001
PISTON-ENGINE
€ 139.00
13002
130021053
ref: 13002
PIN-PISTON
€ 16.50
13008
130081116
ref: 13008
RING-SET-PISTON
€ 57.00
13031
130311382
ref: 13031
CRANKSHAFT-COMP
€ 674.00
13032
130321210
ref: 13032
ROD-CONNECTING
€ 68.00
13033
130331056
ref: 13033
BEARING-SMALL END
€ 24.00
13034
130341081
ref: 13034
BEARING-BIG END,B4
€ 55.50
13035
130351010
ref: 13035
PIN-CRANK
€ 33.00
13037
130371488
ref: 13037
CRANKSHAFT,LH
€ 315.50
13037A
130371490
ref: 13037A
CRANKSHAFT,RH
€ 331.50
13097
130971320
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 101.50
59051
590511207
ref: 59051
GEAR-SPUR,WATER PUMP
€ 24.50
92015
920151581
ref: 92015
NUT,16MM
€ 13.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
€ 6.50
92033
920331242
ref: 92033
RING-SNAP,PISTON PIN
€ 2.50
