FRONT BRAKE
KDX200-H4 1998 USA CANADA

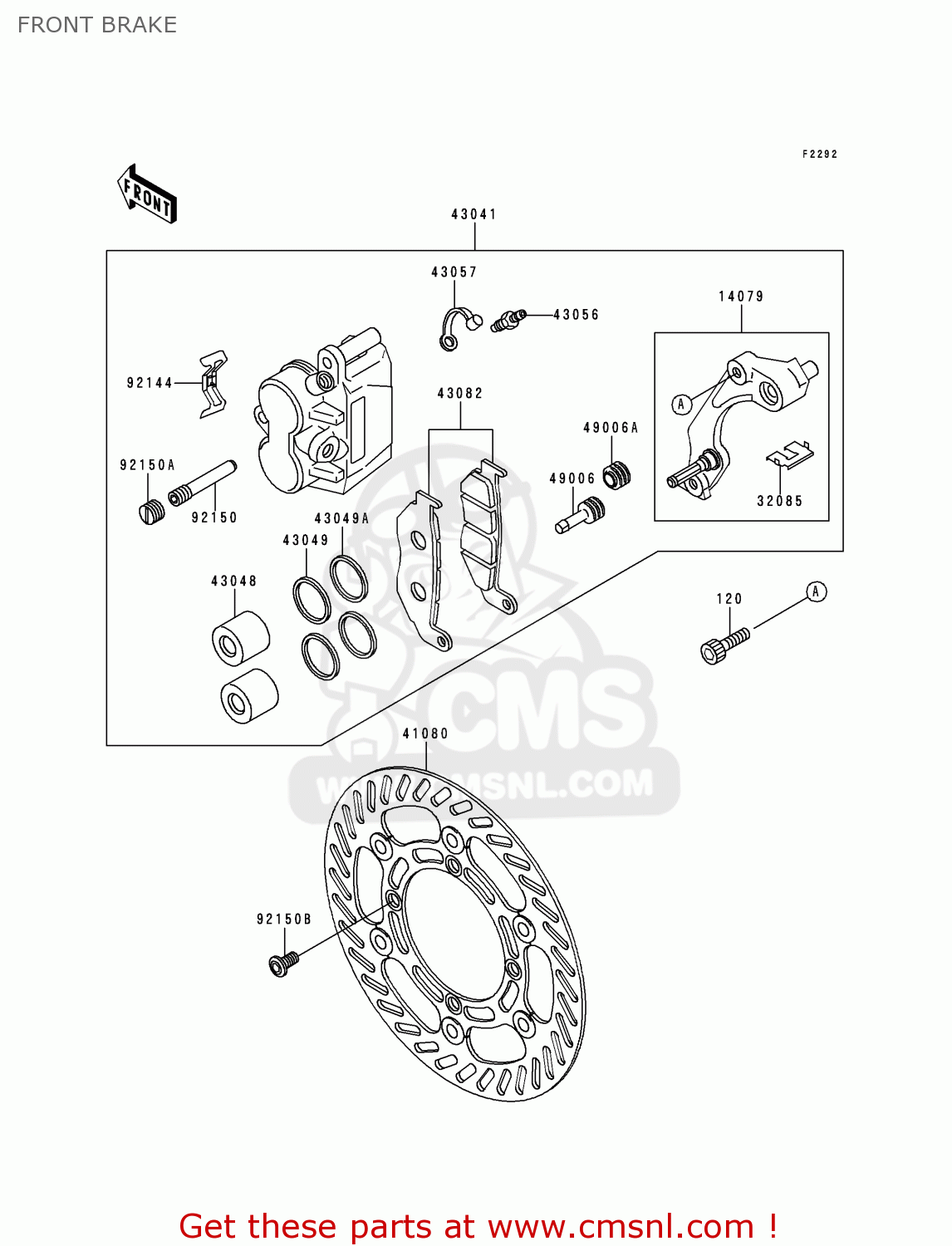

Front brake diagram KDX200-H4 1998 USA CANADA
FRONT BRAKE KDX200-H4 1998 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0840
ref: 120
BOLT-SOCKET,8X40
€ 2.00
14079
140791097
ref: 14079
HOLDER-ASSY,FRONT CAL
€ 125.50
32085
320851361
ref: 32085
STOPPER,PAD
€ 5.00
41080
410801377
ref: 41080
DISC,FR
€ 173.00
43041
430411576
ref: 43041
CALIPER-ASSY,FR,LH
€ 448.50
43048
430481064
ref: 43048
PISTON-CALIPER
€ 49.00
43049
430491060
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 13.00
43049A
430491061
ref: 43049A
PACKING,PISTON SEAL (NAS)
€ 7.00
43056
430561055
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821172
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
49006
490061088
ref: 49006
BOOT,CALIPER
€ 7.50
49006A
490061242
ref: 49006A
BOOT
€ 3.50
92144
921441721
ref: 92144
SPRING,PAD
€ 6.50
92150
921501691
ref: 92150
BOLT,HANGER
€ 8.00
92150A
921501692
ref: 92150A
BOLT,PLUG
€ 5.00
92150B
921501811
ref: 92150B
BOLT,DISC PLATE,8X15
€ 3.00
