IGNITION SYSTEM

KDX200-H3 1997 USA CANADA

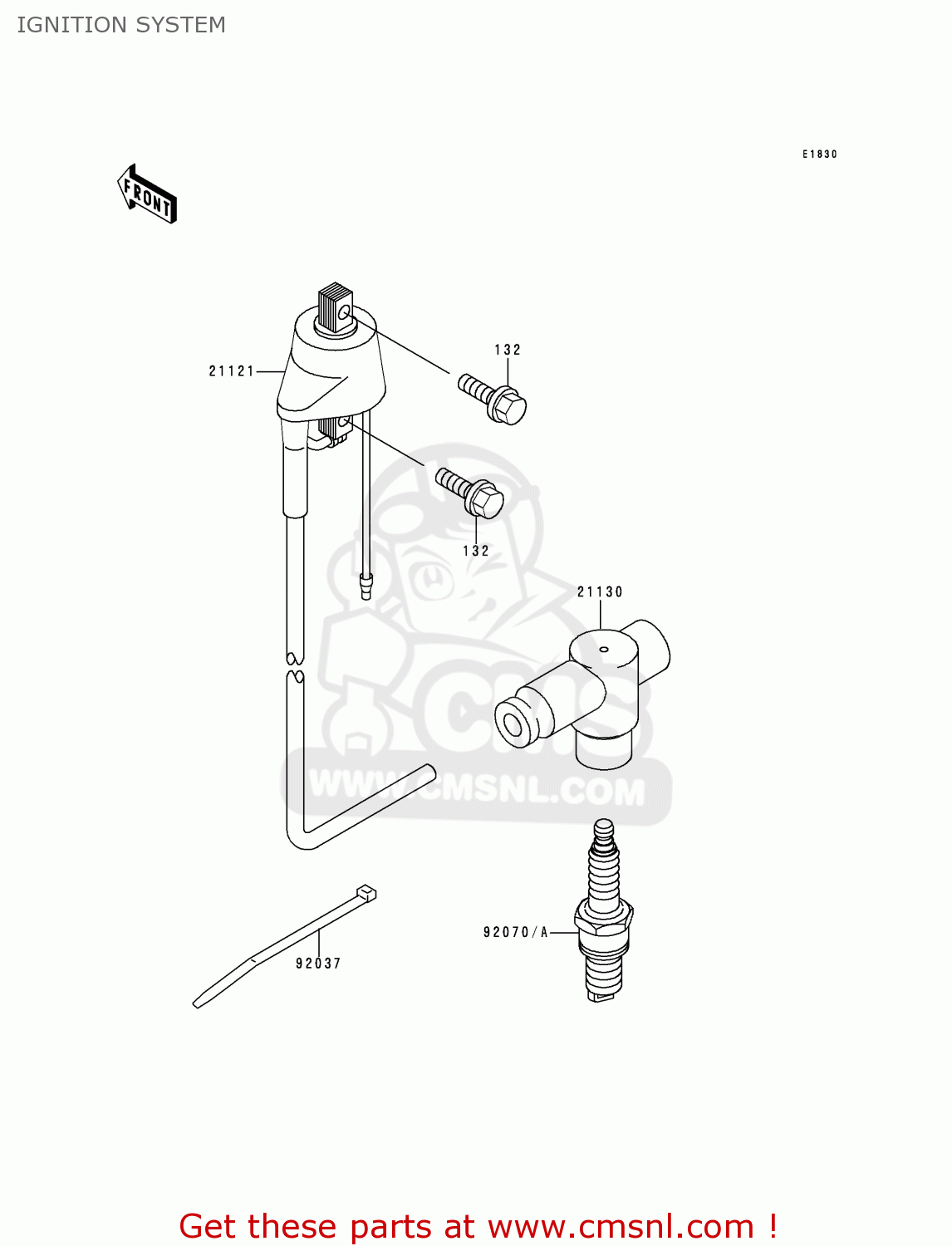

Ignition system diagram KDX200-H3 1997 USA CANADA

IGNITION SYSTEM KDX200-H3 1997 USA CANADA
IGNITION SYSTEM KDX200-H3 1997 USA CANADA
IGNITION SYSTEM KDX200-H3 1997 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132Y0618
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
21121
211211230
ref: 21121
COIL-IGNITION
211211230
€ 81.00
21130
211301073
ref: 21130
CAP-SPARK PLUG
211301073
€ 27.00
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
92070
920701157
ref: 92070
BR9ES SOLID NGK SPARK
920701157
€ 3.50
92070A
920702078
ref: 92070A
BR8ES SOLID NGK SPARK
€ 3.50
