GEAR CHANGE DRUM/SHIFT FORK(S)
KDX200-H3 1997 USA CANADA

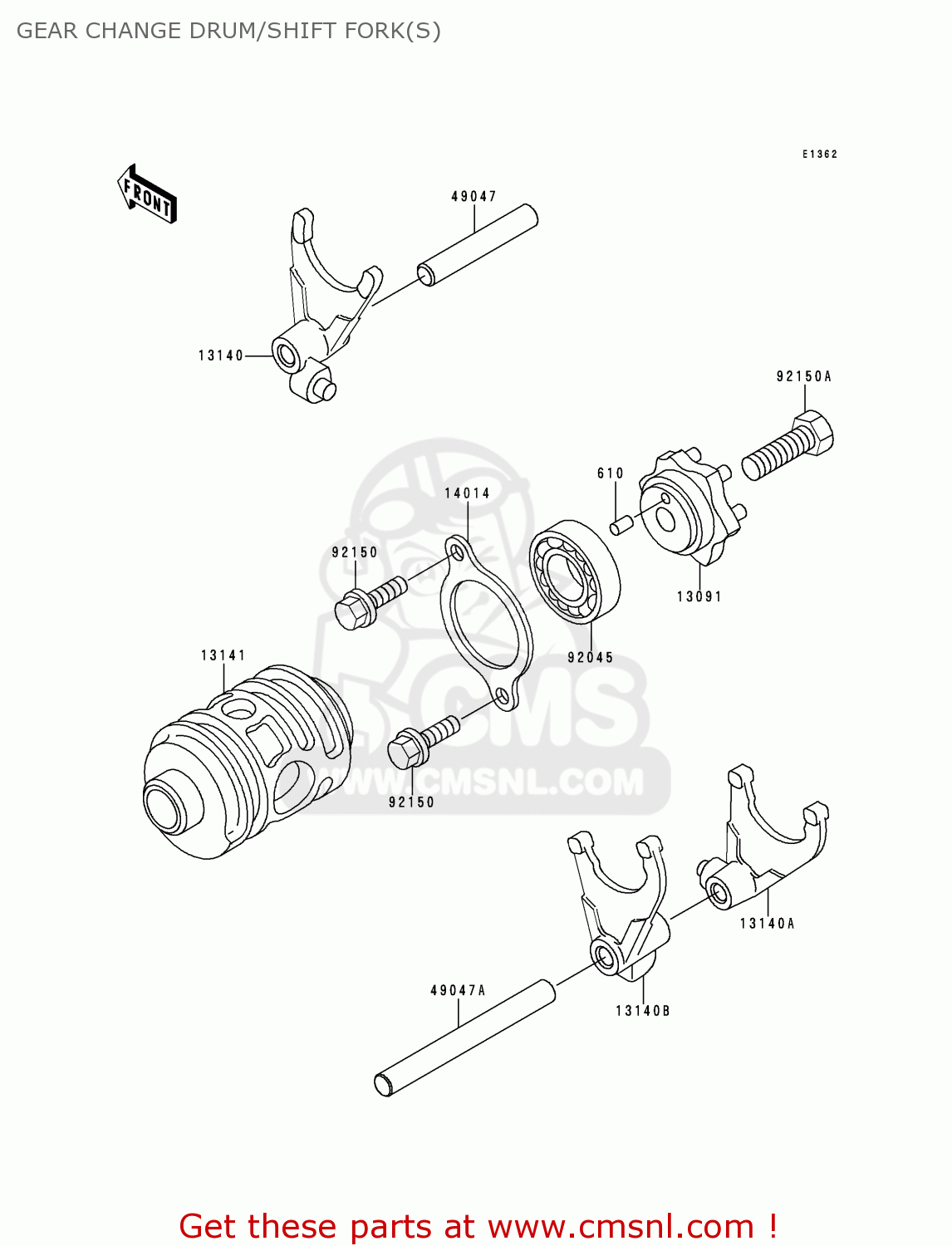

Gear change drum/shift fork(s) diagram KDX200-H3 1997 USA CANADA
GEAR CHANGE DRUM/SHIFT FORK(S) KDX200-H3 1997 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
13091
130911364
ref: 13091
HOLDER,CHANGE DRUM
€ 73.00
13140
131401074
ref: 13140
FORK-SHIFT,5TH&TOP
€ 68.00
13140A
131401243
ref: 13140A
FORK-SHIFT,LOW&4TH
€ 68.00
13140B
131401244
ref: 13140B
FORK-SHIFT,2ND&3RD
€ 65.00
13141
131411117
ref: 13141
DRUM-CHANGE
€ 101.50
14014
140141020
ref: 14014
PLATE-POSITION
€ 9.00
49047
490471089
ref: 49047
ROD-SHIFT,8X58
€ 10.50
49047A
490471090
ref: 49047A
ROD-SHIFT,8X82.5
€ 9.50
92045
920451319
ref: 92045
BEARING-BALL
€ 24.50
92150
921501868
ref: 92150
BOLT,6X12
€ 2.00
92150A
921501911
ref: 92150A
BOLT,8X25
€ 2.00
