FUEL TANK
KDX200-H3 1997 USA CANADA

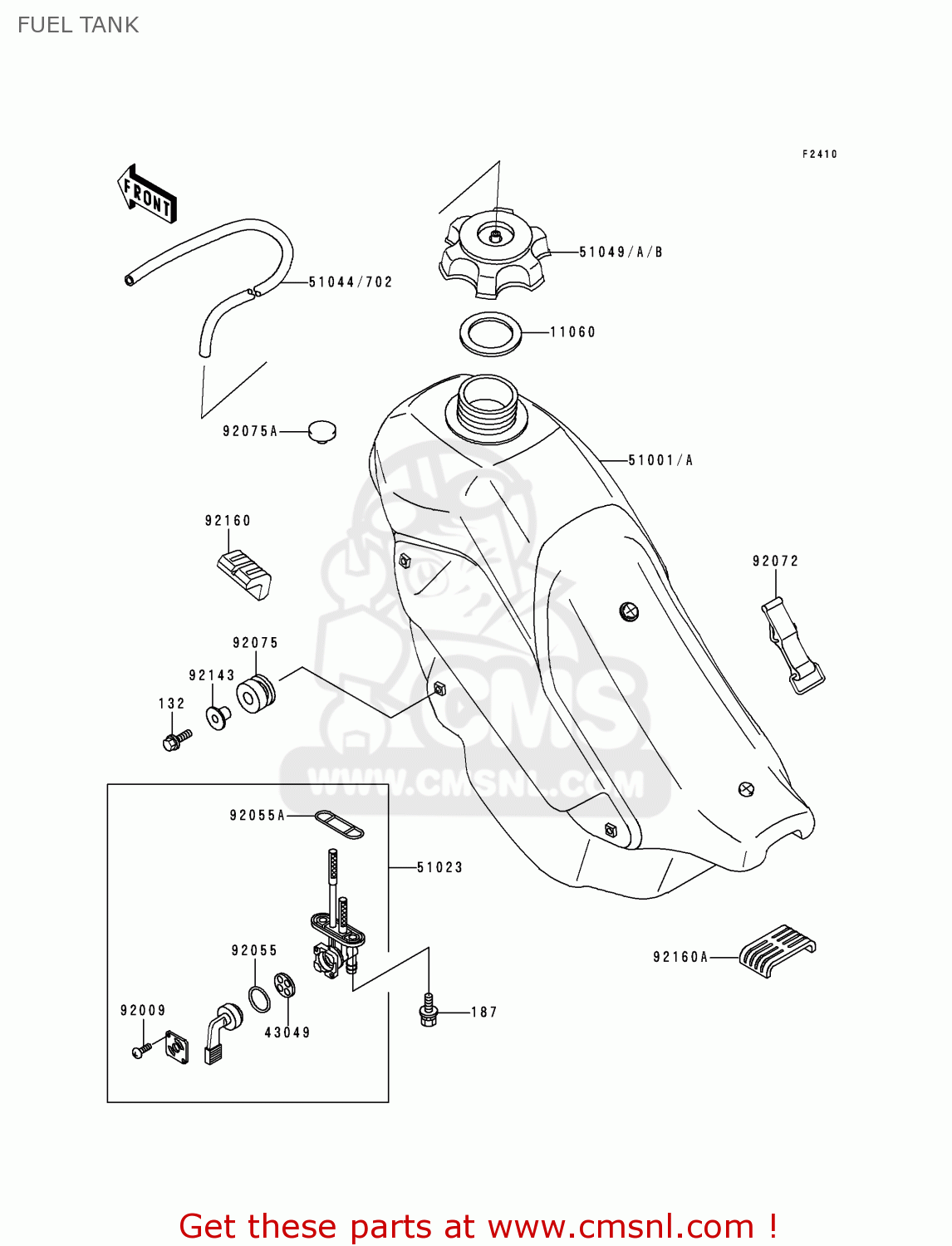

Fuel tank diagram KDX200-H3 1997 USA CANADA
FUEL TANK KDX200-H3 1997 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11060
110601340
ref: 11060
GASKET,FUEL TANK CAP (NAS)
€ 4.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51001A
5100114566W
ref: 51001A
TANK-COMP-FUEL,L.GREE
€ 468.00
51023
510231214
ref: 51023
TAP-ASSY,FUEL
€ 70.50
51049B
510491108
ref: 51049B
CAP-TANK,FUEL
€ 19.00
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551348
ref: 92055A
RING-O,FUEL TAP PACKI
€ 4.50
92072
920721229
ref: 92072
BAND,FUEL TANK
€ 8.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
€ 4.00
92143
921431353
ref: 92143
COLLAR
€ 5.50
92160
921601328
ref: 92160
DAMPER,FUEL TANK
€ 4.50
92160A
921601397
ref: 92160A
DAMPER,FUEL TANK,RR
€ 5.00
