METER

KDX200-E5 1993 UNITED KINGDOM AL

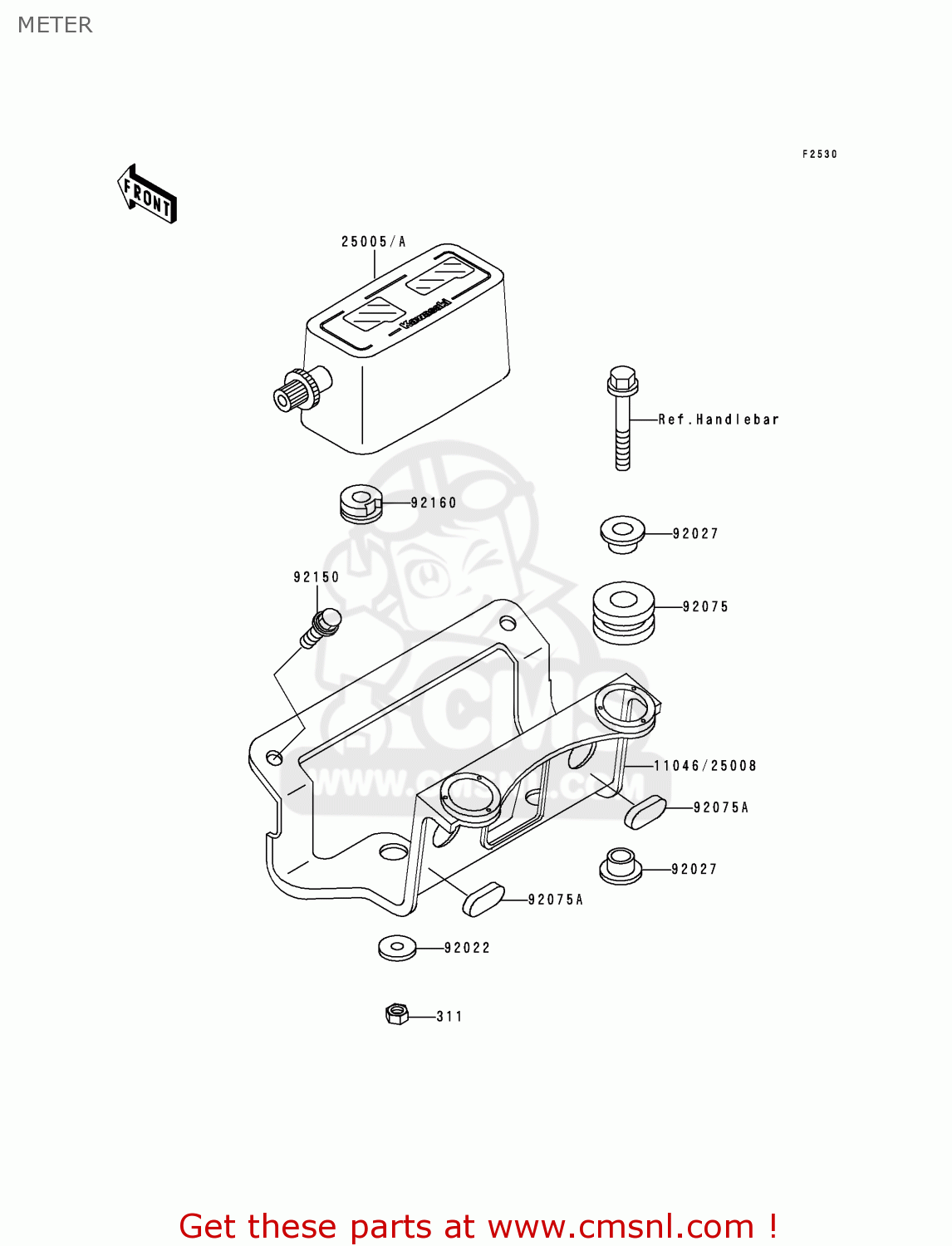

Meter diagram KDX200-E5 1993 UNITED KINGDOM AL

METER KDX200-E5 1993 UNITED KINGDOM AL

METER KDX200-E5 1993 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

311

311B0500
ref: 311

NUT-HEX

€ 0.50

25005A

250051497
ref: 25005A

SPEEDOMETER,TRIP(KM)

€ 134.00

25008

250081159
ref: 25008

BRACKET-METER

€ 35.00

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92027

920271585
ref: 92027

COLLAR,METER BRACKET

€ 6.00

92075

92075013
ref: 92075

DAMPER

€ 3.00

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00

92160

921601110
ref: 92160

DAMPER

€ 2.00
