FRONT FORK(KDX200-E5/E6)
KDX200-E5 1993 UNITED KINGDOM AL

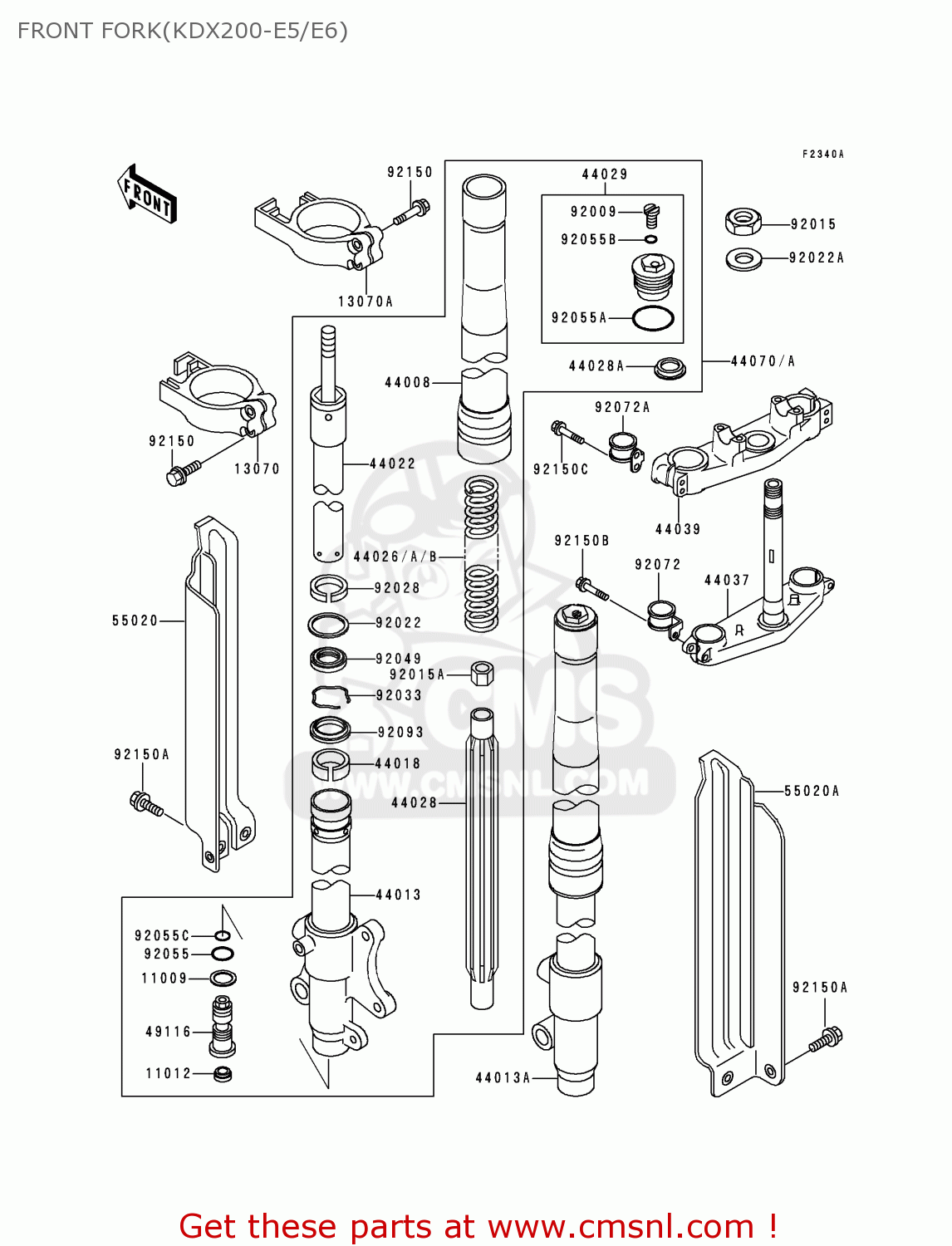

Front fork(kdx200-e5/e6) diagram KDX200-E5 1993 UNITED KINGDOM AL
FRONT FORK(KDX200-E5/E6) KDX200-E5 1993 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
13070
130701263
ref: 13070
GUIDE,FORK,LH
€ 22.00
13070A
130701264
ref: 13070A
GUIDE,FORK,RH
€ 22.00
44008
440081025KW
ref: 44008
PIPE-FORK OUTER,BLUE
€ 641.50
44013
440131310
ref: 44013
PIPE-FORK INNER,LH
€ 270.00
44013A
440131311
ref: 44013A
PIPE-FORK INNER,RH
€ 240.00
44018
440181054
ref: 44018
PISTON-FORK
€ 33.00
44022
440221286
ref: 44022
CYLINDER-FORK
€ 195.00
44026
440261456
ref: 44026
SPRING-FRONT FORK
€ 47.00
44026A
440261460
ref: 44026A
SPRING-FRONT FORK
€ 47.00
44026B
440261461
ref: 44026B
SPRING-FRONT FORK
€ 47.00
44028
440281072
ref: 44028
GUIDE-FORK SPRING
€ 48.00
44028A
440281075
ref: 44028A
GUIDE-FORK SPRING
€ 7.00
44029
440291142
ref: 44029
SEAT-FORK SPRING
€ 50.50
44037
440371282
ref: 44037
HOLDER-FORK UNDER
€ 421.50
44039
440391189
ref: 44039
HOLDER-FORK UPPER
€ 194.00
44070
440701230KW
ref: 44070
DAMPER-ASSY,FORK,LH,B
€ 1,226.50
44070A
440701231KW
ref: 44070A
DAMPER-ASSY,FORK,RH,B
€ 1,371.00
49116
491161111
ref: 49116
VALVE-ASSY,FORK
€ 98.50
55020
550201363RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 33.00
55020A
550201423RZ
ref: 55020A
GUARD,FORK,RH
€ 27.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92015A
920151827
ref: 92015A
NUT
€ 16.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281566
ref: 92028
BUSHING
€ 18.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
€ 13.00
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92055A
920551156
ref: 92055A
RING-O,REARSHOCK
€ 1.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92072
920721267
ref: 92072
BAND
€ 14.50
92072A
920721268
ref: 92072A
BAND
€ 14.50
92093
920931305
ref: 92093
SEAL,FORK OUTER TUBE
€ 19.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92150A
921501434
ref: 92150A
BOLT,5X40
€ 3.00
92150B
921501446
ref: 92150B
BOLT,10X40
€ 9.00
92150C
921501516
ref: 92150C
BOLT, FLANGED 8X40
€ 9.50
