FRAME
KDX200-E5 1993 UNITED KINGDOM AL

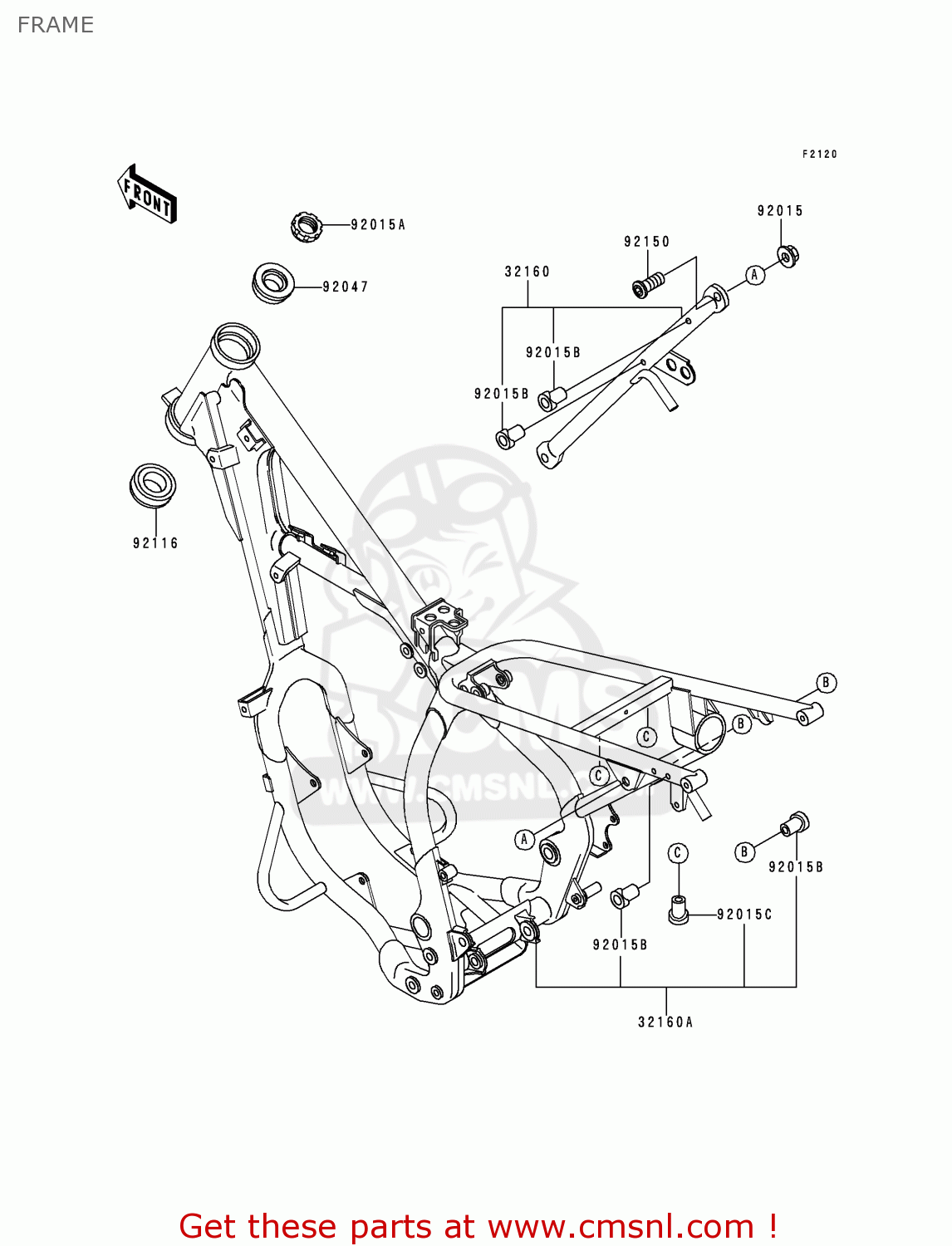

Frame diagram KDX200-E5 1993 UNITED KINGDOM AL
FRAME KDX200-E5 1993 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
32160
321601020CC
ref: 32160
FRAME-COMP,RR
€ 106.50
32160A
321601236CC
ref: 32160A
FRAME-COMP,FR,L.GREEN
€ 906.50
92015
920151415
ref: 92015
NUT,10MM
€ 3.00
92015A
920151684
ref: 92015A
NUT,STEERING STEM,25M
€ 15.50
92015B
920151759
ref: 92015B
NUT,POP,6MM
€ 3.00
92015C
920151792
ref: 92015C
NUT,POP,6MM,L=16.5
€ 3.00
92047
92047017
ref: 92047
CONE,STRNG,STEM
€ 49.50
92116
921161008
ref: 92116
BEARING-ROLLER,LWR,32
€ 78.00
92150
921501221
ref: 92150
BOLT,SOCKET,10X23
€ 3.50
