GENERATOR

KDX200-E4 1992 UNITED KINGDOM AL

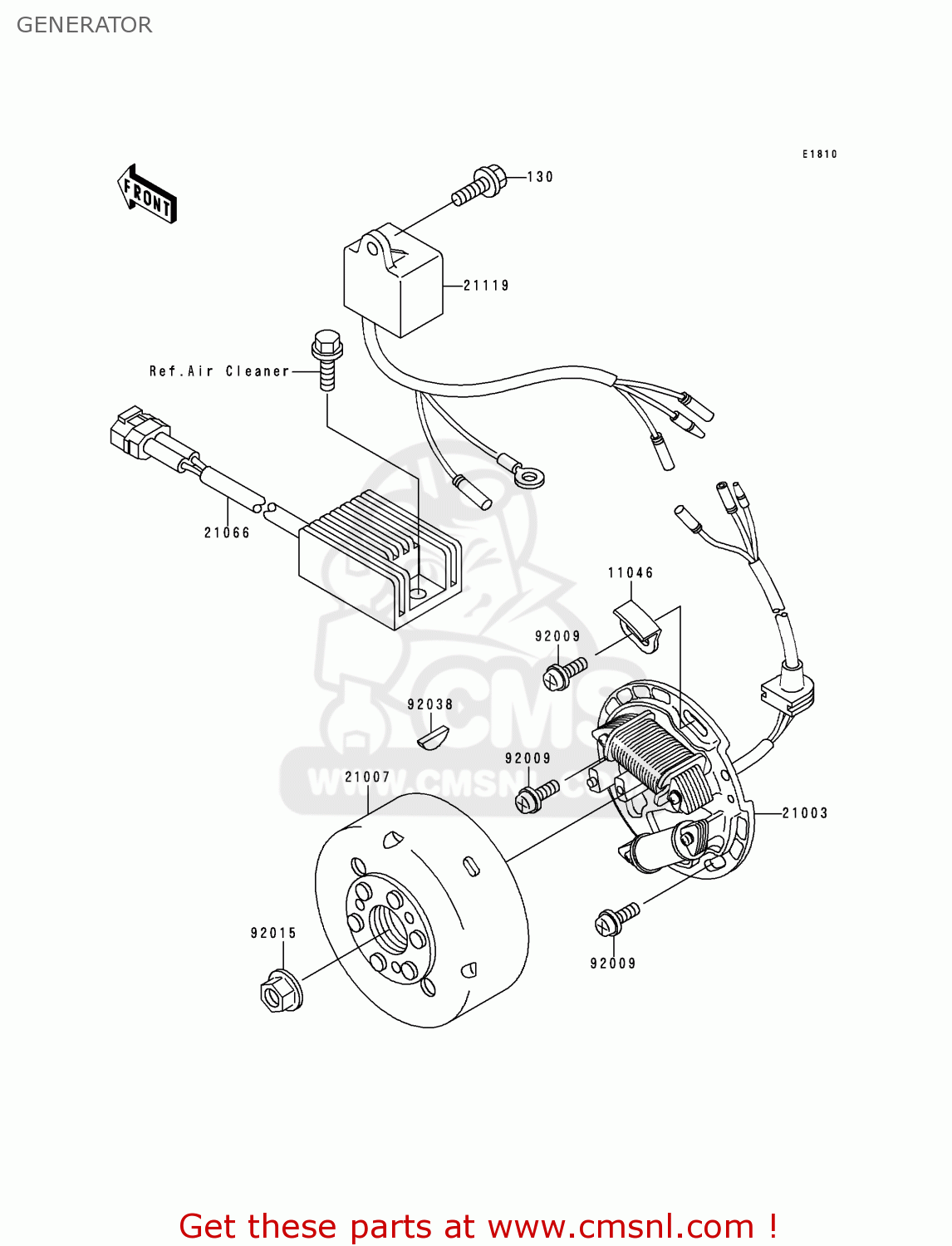

Generator diagram KDX200-E4 1992 UNITED KINGDOM AL

GENERATOR KDX200-E4 1992 UNITED KINGDOM AL
GENERATOR KDX200-E4 1992 UNITED KINGDOM AL
GENERATOR KDX200-E4 1992 UNITED KINGDOM AL
prices are in EUR
ref
part #
description
quantity
130
130G0616
ref: 130
BOLT-FLANGED,6X16
130G0616
€ 0.50
11046
110461413
ref: 11046
BRACKET
110461413
€ 5.50
21003
210031279
ref: 21003
STATOR
€ 482.50
21007
210071177
ref: 21007
ROTOR
€ 430.50
21066
210661072
ref: 21066
REGULATOR-VOLTAGE
210661072
€ 164.50
21119
211191257
ref: 21119
IGNITER
€ 335.50
92009
920091722
ref: 92009
SCREW
920091722
€ 2.50
92015
920151156
ref: 92015
NUT,12MM
920151156
€ 4.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
