FRONT HUB(KDX200-E4)
KDX200-E4 1992 UNITED KINGDOM AL

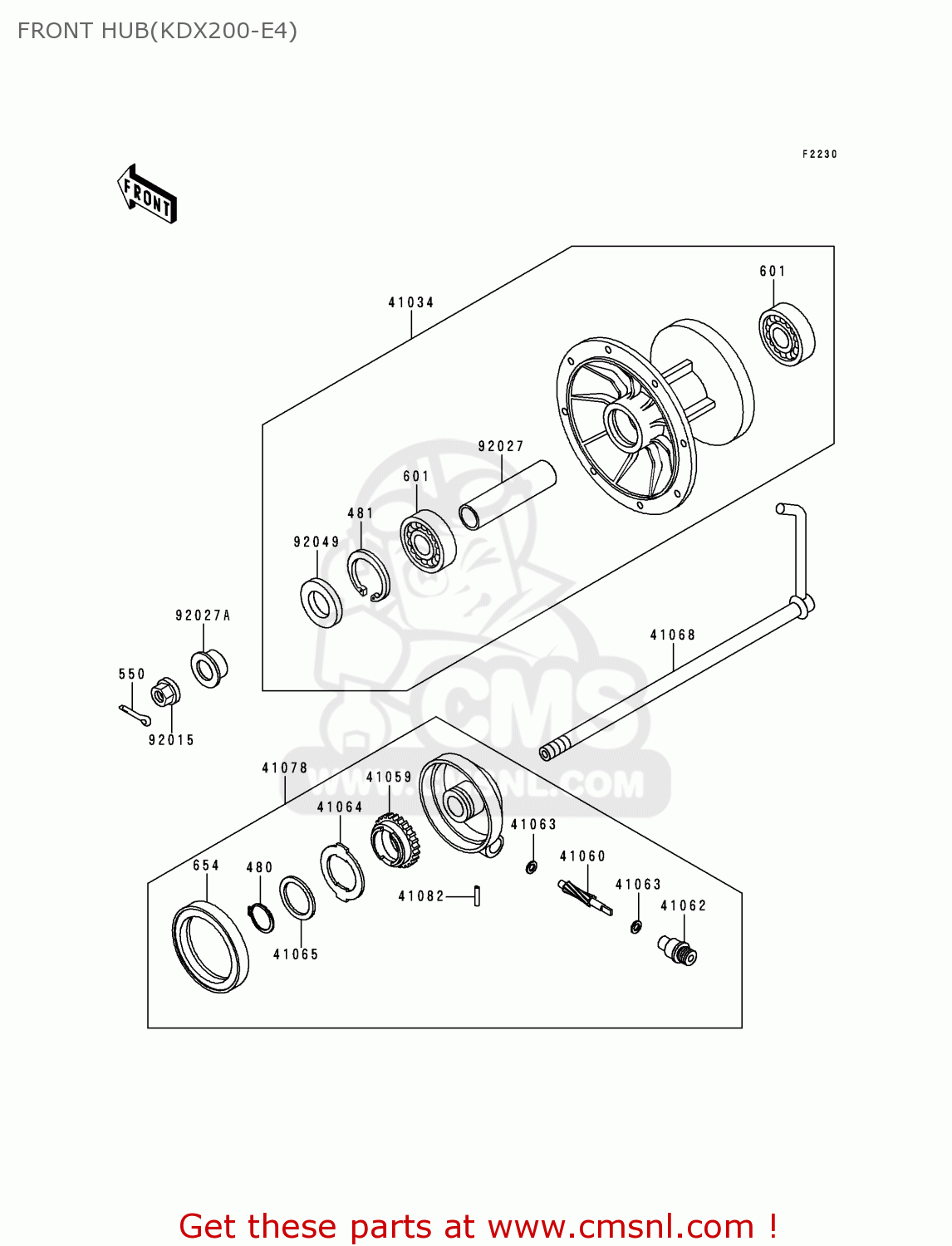

Front hub(kdx200-e4) diagram KDX200-E4 1992 UNITED KINGDOM AL
FRONT HUB(KDX200-E4) KDX200-E4 1992 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
654
654A506509
ref: 654
OIL SEAL,#50659
€ 10.50
41034
410341156
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 343.50
41059
41059027
ref: 41059
GEAR SPEEDOMETER
€ 21.00
41060
41060015
ref: 41060
PINION,SPEEDOMETER
€ 17.00
41062
41062005
ref: 41062
BUSHING,SPEEDOMETER C
€ 12.00
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
41064015
ref: 41064
RECEIVER-SPEEDOMETER
€ 5.50
41065
41065005
ref: 41065
WASHER,24.5X32X0.8
€ 2.00
41068
410681291
ref: 41068
AXLE,FR
€ 45.50
41078
41078011
ref: 41078
GEAR BOX ASSY
€ 103.50
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
92015
920151401
ref: 92015
NUT,FLANGED,14MM
€ 7.50
92027
920271958
ref: 92027
COLLAR,15.2X19X75
€ 30.00
92027A
920271959
ref: 92027A
COLLAR,L=12
€ 10.50
92049
920491176
ref: 92049
SEAL-OIL,MH20354.5
€ 10.00
