BRAKE PEDAL

KDX200-E4 1992 UNITED KINGDOM AL

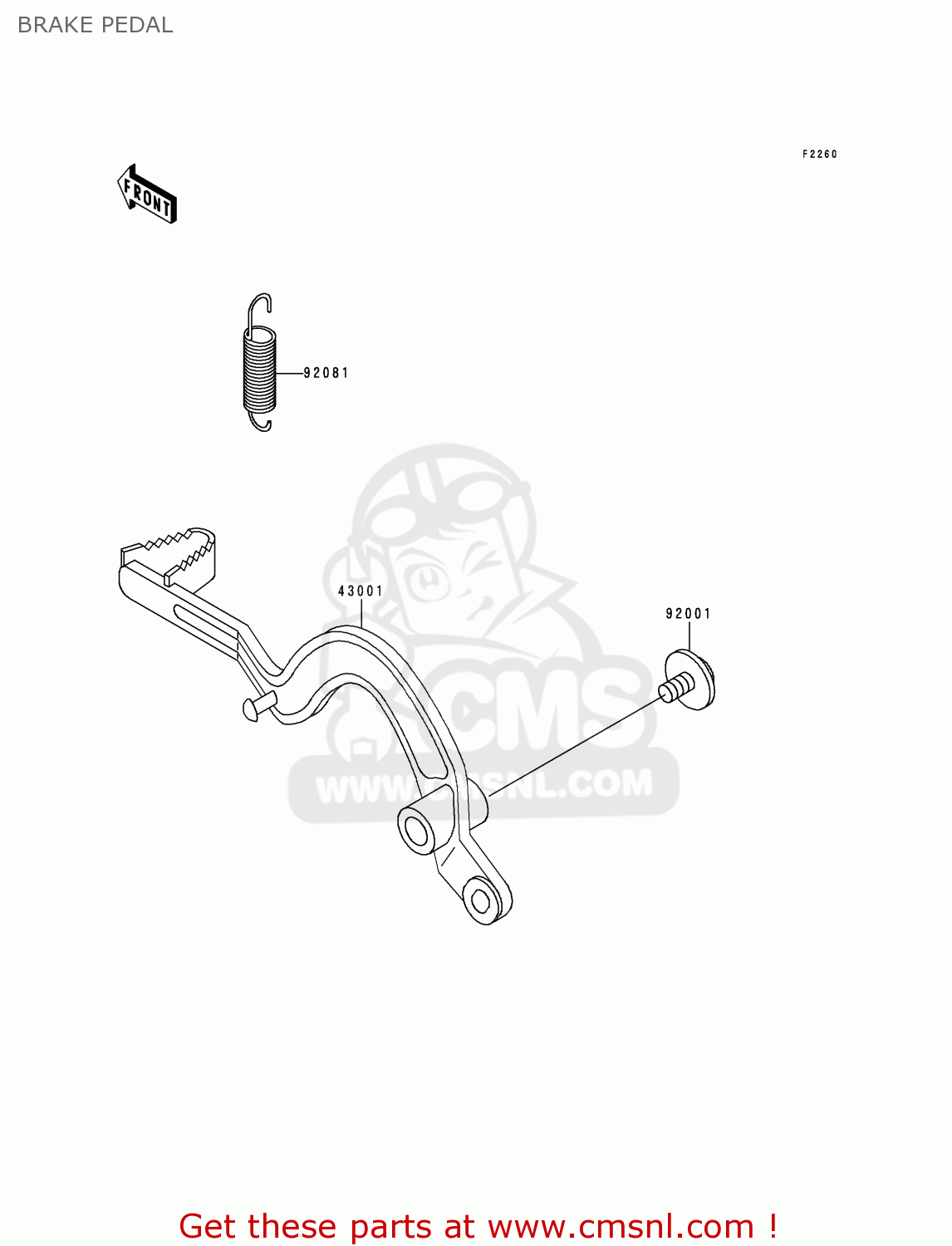

Brake pedal diagram KDX200-E4 1992 UNITED KINGDOM AL

BRAKE PEDAL KDX200-E4 1992 UNITED KINGDOM AL
BRAKE PEDAL KDX200-E4 1992 UNITED KINGDOM AL
BRAKE PEDAL KDX200-E4 1992 UNITED KINGDOM AL
prices are in EUR
ref
part #
description
quantity
43001
430011313
ref: 43001
LEVER-BRAKE,PEDAL
430011313
€ 42.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
920011034
€ 7.00
92081
920811839
ref: 92081
SPRING,RETURN
920811839
€ 5.50
