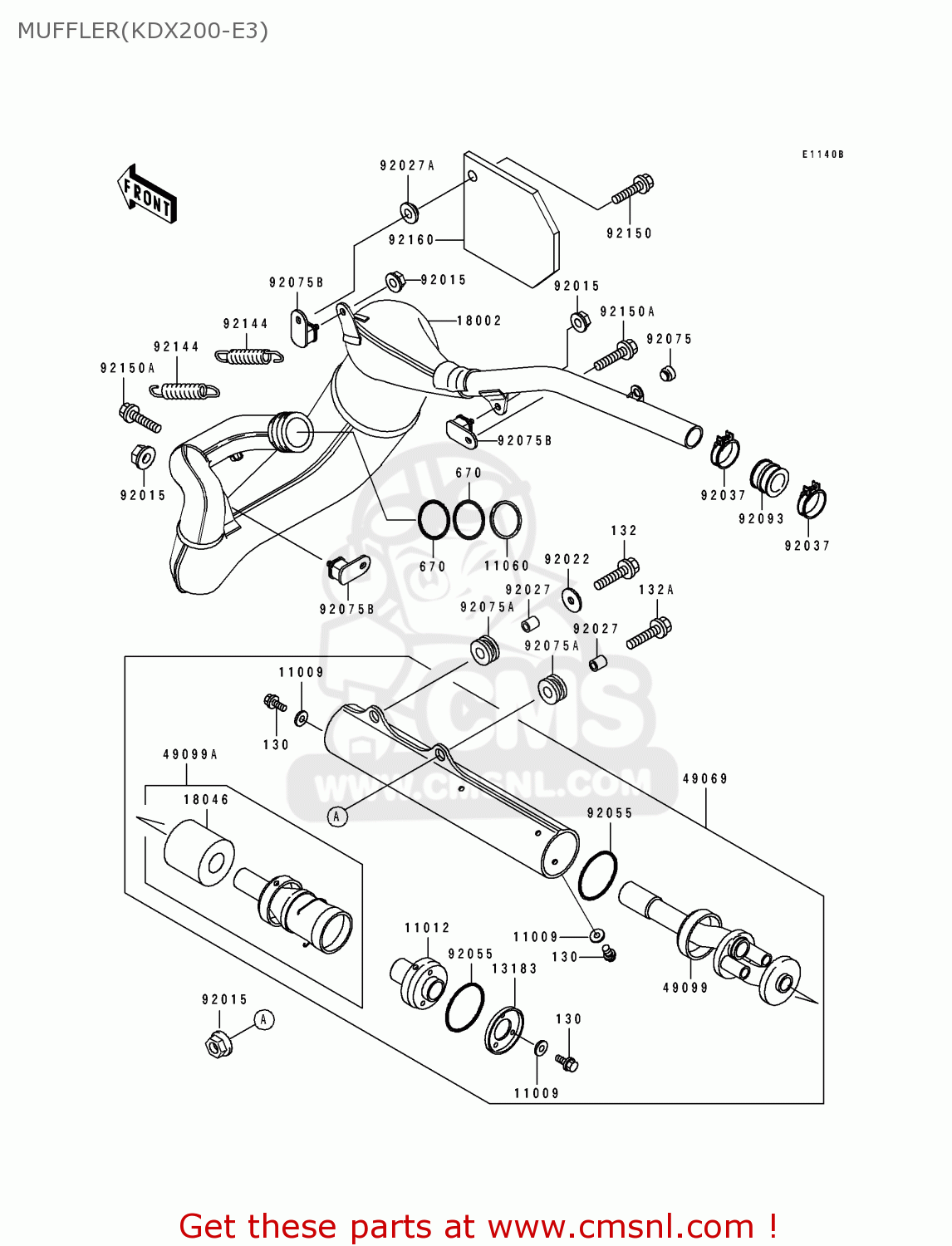

MUFFLER(KDX200-E3)

ref

part #

description

quantity

130

130G0510
ref: 130

BOLT-FLANGED

€ 1.50

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132G0630
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

670

670E3039
ref: 670

O RING,39MM

€ 10.50

11009

110091881
ref: 11009

GASKET,5.5X13X1.2 (NAS)

€ 2.50

11012

110121739
ref: 11012

CAP,TAIL PIPE

€ 8.00

11060

110091995
ref: 11060

GASKET,EXHAUST PIPE (NAS)

€ 8.50

13183

131831569
ref: 13183

PLATE,TAIL PIPE

€ 9.00

18002

180021933
ref: 18002

BODY-COMP-MUFFLER

€ 303.00

18046

180461115
ref: 18046

WOOL,BAFFLE PIPE

€ 22.00

49069

490691137
ref: 49069

MUFFLER-ASSY

€ 288.50

49099

490991286
ref: 49099

BAFFLE-PIPE MUFFLER,F

€ 72.50

49099A

490991287
ref: 49099A

BAFFLE-PIPE MUFFLER,R

€ 68.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022237
ref: 92022

WASHER-PLAIN

€ 2.50

92027

920271210
ref: 92027

COLLAR,6.8X10X11.5L

€ 7.00

92027A

920271933
ref: 92027A

COLLAR,L=5.6

€ 3.50

92037

920371129
ref: 92037

CLAMP,40MM

€ 6.00

92055

920551431
ref: 92055

RING-O,61.6X3.5

€ 6.00

92075

920751598
ref: 92075

DAMPER,SIDE COVER

€ 5.50

92075A

920751857
ref: 92075A

DAMPER,MUFFLER FITTIN

€ 3.50

92075B

920751891
ref: 92075B

DAMPER,MUFFLER

€ 21.00

92093

920931085
ref: 92093

SEAL,MUFFLER

€ 23.50

92144

921441035
ref: 92144

SPRING

€ 7.00

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50

92150A

921501340
ref: 92150A

BOLT,6X14

€ 3.00

92160

921601145
ref: 92160

DAMPER,HEAT

€ 50.50

all assemblies
