CLUTCH
KDX200-E3 1991 UNITED KINGDOM AL

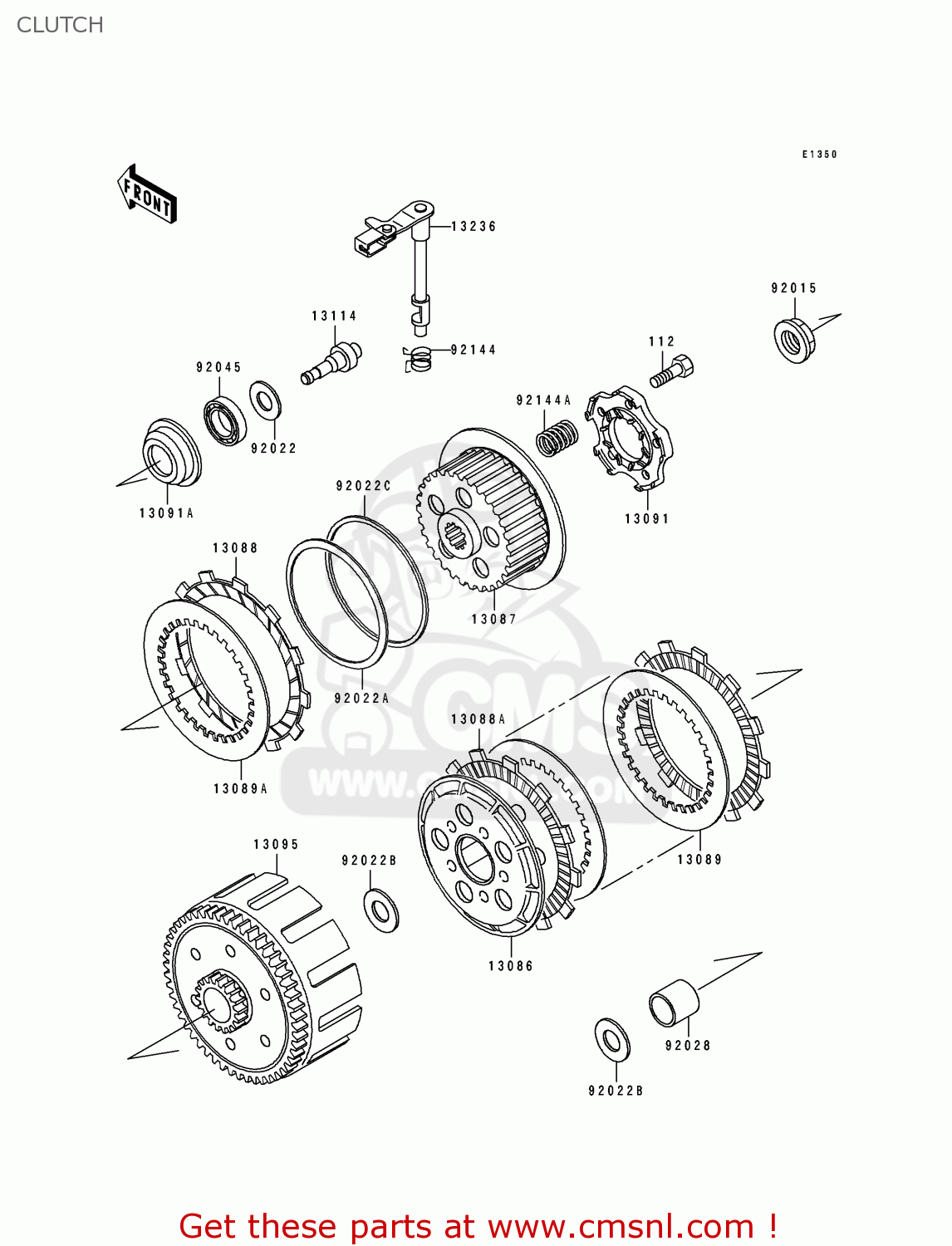

Clutch diagram KDX200-E3 1991 UNITED KINGDOM AL
CLUTCH KDX200-E3 1991 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
112
112G0622
ref: 112
BOLT-UPSET
€ 2.50
13086
130861060
ref: 13086
WHEEL-CLUTCH
€ 25.00
13087
130871111
ref: 13087
HUB-CLUTCH
€ 59.00
13088
130881058
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13088A
130881081
ref: 13088A
PLATE-FRICTION,ID=95 (NAS)
€ 16.00
13089
130891070
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.00
13089A
130891085
ref: 13089A
PLATE-CLUTCH (NAS)
€ 7.50
13091
130911502
ref: 13091
HOLDER,CLUTCH SPRING
€ 15.00
13091A
130911712
ref: 13091A
HOLDER,CLUTCH PUSHER
€ 15.50
13095
130951189
ref: 13095
HOUSING-COMP-CLUTCH
€ 295.50
13114
131141063
ref: 13114
PUSHER-CLUTCH
€ 12.00
13236
132361195
ref: 13236
LEVER-COMP
€ 36.50
92015
920151581
ref: 92015
NUT,16MM
€ 13.50
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
€ 2.50
92022A
920221974
ref: 92022A
WASHER,JUDDER SPRING
€ 10.50
92022B
920221979
ref: 92022B
WASHER,20.3X30X2.3
€ 3.50
92022C
920221993
ref: 92022C
WASHER,JUDDER SPRING
€ 10.50
92028
920281388
ref: 92028
BUSHING,20X25X26.85
€ 19.50
92045
920451225
ref: 92045
BEARING-BALL,6000
€ 16.50
92144
921441287
ref: 92144
SPRING
€ 4.00
92144A
921441403
ref: 92144A
SPRING,CLUTCH
€ 4.50
