FRAME

KDX200-E3 1991 UNITED KINGDOM AL

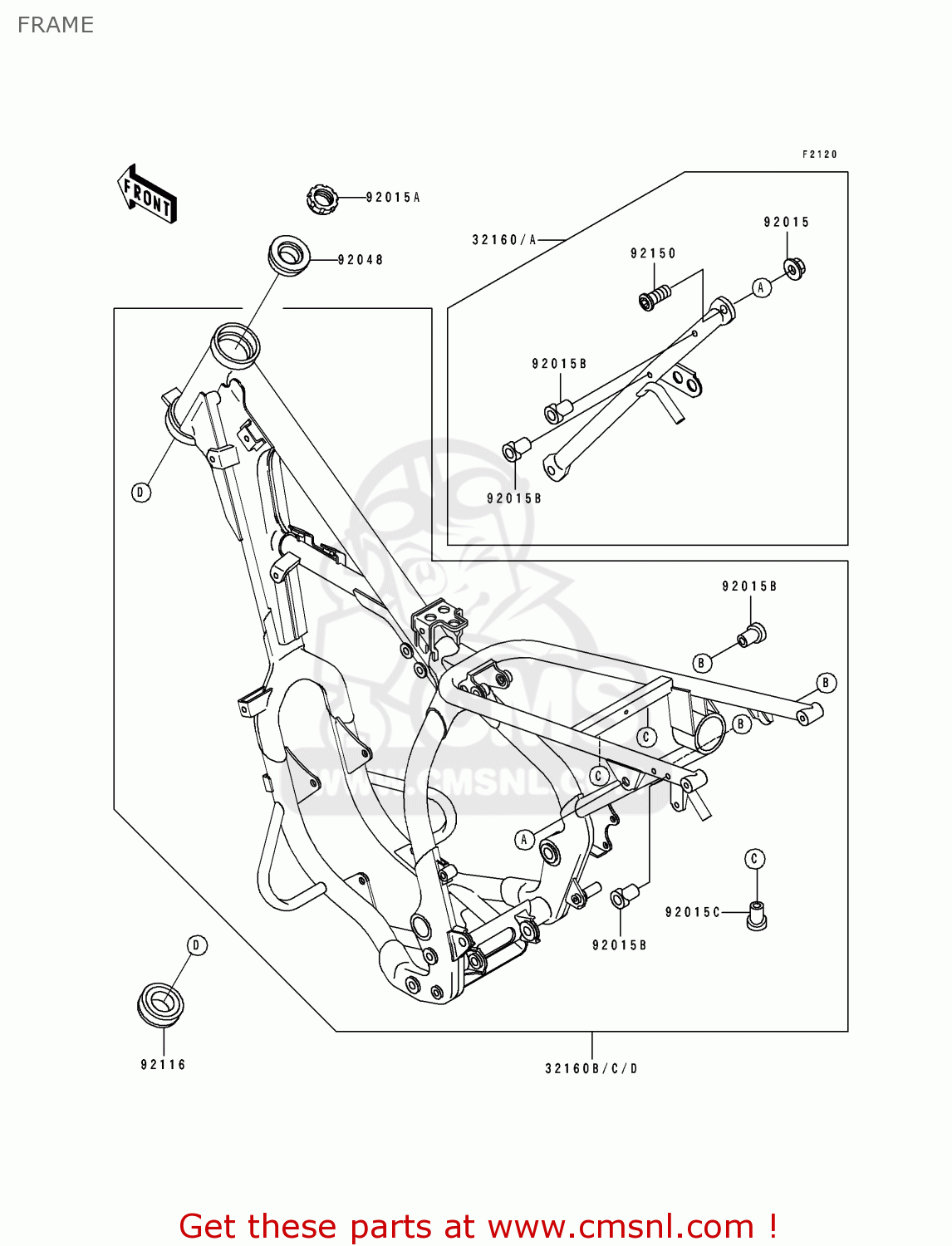

Frame diagram KDX200-E3 1991 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

32160

321601020CC
ref: 32160

FRAME-COMP,RR

€ 106.50

32160C

321601099CC
ref: 32160C

FRAME-COMP,FR,L.GREEN

€ 652.50

92015

920151415
ref: 92015

NUT,10MM

€ 3.00

92015A

920151684
ref: 92015A

NUT,STEERING STEM,25M

€ 15.50

92015B

920151759
ref: 92015B

NUT,POP,6MM

€ 3.00

92015C

920151792
ref: 92015C

NUT,POP,6MM,L=16.5

€ 3.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

92150

921501221
ref: 92150

BOLT,SOCKET,10X23

€ 3.50
