SUSPENSION
KDX200-E2 1990 UNITED KINGDOM AL AS

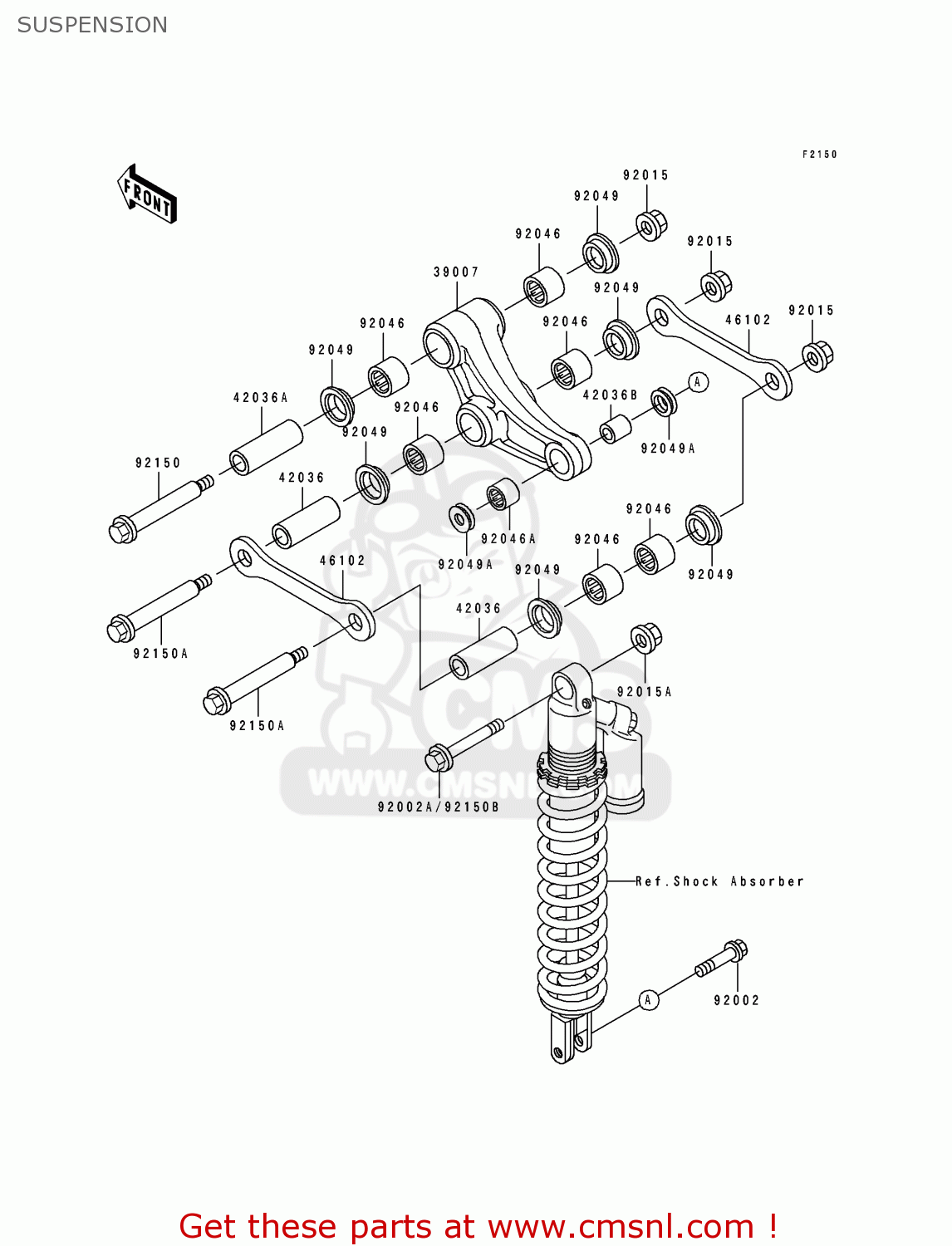

Suspension diagram KDX200-E2 1990 UNITED KINGDOM AL AS
SUSPENSION KDX200-E2 1990 UNITED KINGDOM AL AS
×
prices are in EUR
ref
part #
description
quantity
39007
390071180
ref: 39007
ARM-SUSP,UNI TRAK
€ 172.00
42036
420361245
ref: 42036
SLEEVE,15X22X57
€ 14.50
42036A
420361246
ref: 42036A
SLEEVE,15X22X63
€ 14.50
42036B
420361248
ref: 42036B
SLEEVE,10X16X19
€ 6.50
46102
461021258
ref: 46102
ROD,SUSPENSION
€ 50.50
92002
920021675
ref: 92002
BOLT,10X40
€ 8.50
92015
920151433
ref: 92015
NUT,12MM
€ 6.00
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92046
920461162
ref: 92046
BEARING-NEEDLE,F-2220
€ 20.50
92046A
920461192
ref: 92046A
BEARING-NEEDLE,16BM22
€ 19.50
92049
920491254
ref: 92049
SEAL-OIL,MHA22 28 5.7
€ 6.50
92049A
920491330
ref: 92049A
SEAL-OIL
€ 9.00
92150
921501195
ref: 92150
BOLT,ARM,12MM
€ 17.00
92150A
921501213
ref: 92150A
BOLT,ROD,12X85
€ 16.50
92150B
921501384
ref: 92150B
BOLT,FLANGED,10X60
€ 9.50
