STAND

KDX200-E2 1990 UNITED KINGDOM AL AS

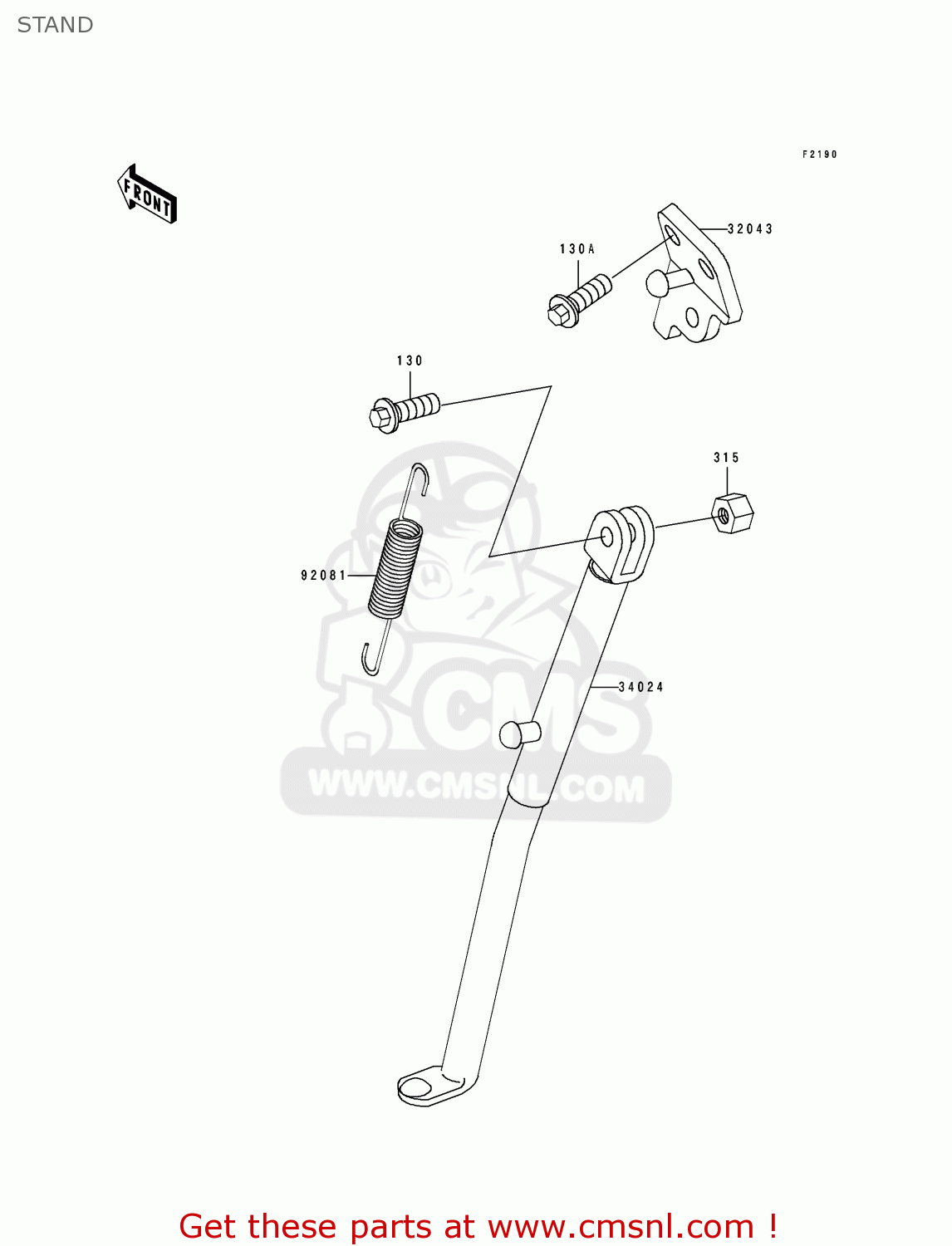

Stand diagram KDX200-E2 1990 UNITED KINGDOM AL AS

STAND KDX200-E2 1990 UNITED KINGDOM AL AS

STAND KDX200-E2 1990 UNITED KINGDOM AL AS

prices are in EUR

ref

part #

description

quantity

130

130G1030
ref: 130

BOLT-FLANGED,10X30

€ 3.00

130A

130G1225
ref: 130A

BOLT-FLANGED

€ 3.00

315

315B1000
ref: 315

NUT,10MM

€ 0.50

32043

320431336
ref: 32043

BRACKET-STAND,SIDE

€ 48.50

34024

340241263
ref: 34024

STAND-SIDE

€ 34.00

92081

920811419
ref: 92081

SPRING

€ 8.00
