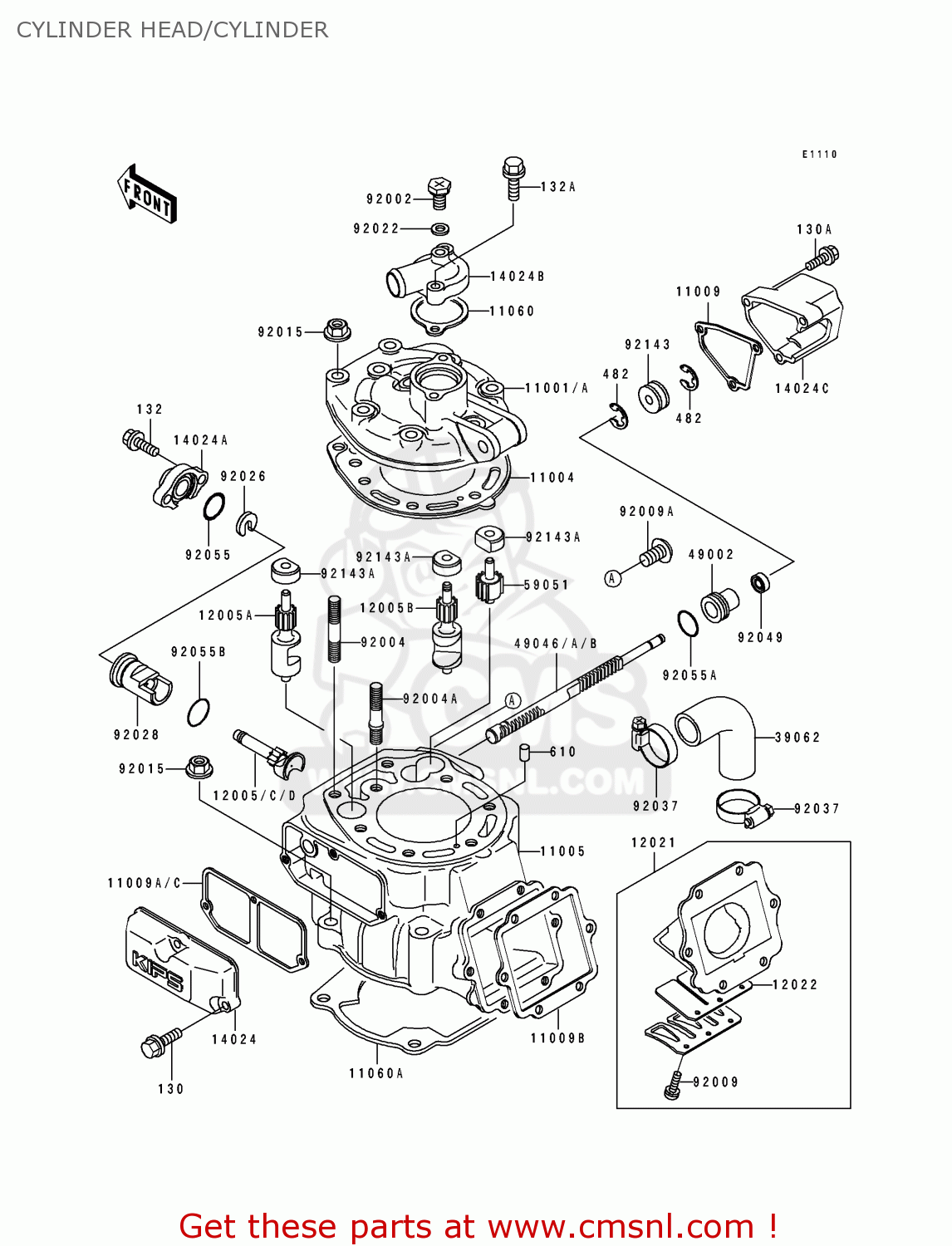

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001A

110011317
ref: 11001A

HEAD-CYLINDER

€ 171.00

11004

110041189
ref: 11004

GASKET-HEAD (NAS)

€ 26.50

11005

110051569
ref: 11005

CYLINDER-ENGINE

€ 670.50

11009

110091934
ref: 11009

GASKET,RH,GOVERNOR (NAS)

€ 4.00

11009A

110091938
ref: 11009A

GASKET,LH,RESONATOR (NAS)

€ 3.50

11009B

110091941
ref: 11009B

GASKET,REED VALVE (NAS)

€ 6.00

11060

110091993
ref: 11060

GASKET,ELBOW (NAS)

€ 3.50

11060A

110091994
ref: 11060A

GASKET,CYLINDER BASE

€ 7.50

12005

120051115
ref: 12005

VALVE-EXHAUST,CENTER

€ 39.00

12005A

120051121
ref: 12005A

VALVE-EXHAUST,LH

€ 55.50

12005B

120051122
ref: 12005B

VALVE-EXHAUST,RH

€ 47.50

12005D

120051157
ref: 12005D

VALVE-EXHAUST,CENTER

€ 37.50

12021

120211067
ref: 12021

VALVE-ASSY-REED

€ 100.50

12022

120221063
ref: 12022

VALVE-REED

€ 18.50

14024

140241565
ref: 14024

COVER,RESONATOR

€ 22.50

14024A

140241708
ref: 14024A

COVER,CENTER VALVE

€ 8.50

14024B

140241719
ref: 14024B

COVER

€ 15.50

14024C

140241786
ref: 14024C

COVER,GOVERNOR

€ 12.00

39062

390621299
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 8.00

49002

490021083
ref: 49002

GUIDE-VALVE

€ 12.50

49046

490461065
ref: 49046

ROD-GOVERNOR

€ 56.00

49046B

490461069
ref: 49046B

ROD-GOVERNOR

€ 56.00

59051

590511206
ref: 59051

GEAR-SPUR,IDLE

€ 24.50

92002

920021222
ref: 92002

BOLT,6X10

€ 5.50

92004

920041009
ref: 92004

STUD, 8X35

€ 4.00

92004A

920041199
ref: 92004A

STUD,8X34

€ 8.50

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92009A

920091502
ref: 92009A

SCREW

€ 2.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92026

920261333
ref: 92026

SPACER

€ 2.50

92028

920281616
ref: 92028

BUSHING,CENTER VALVE

€ 23.00

130

130G0520
ref: 130

BOLT-FLANGED

€ 1.00

130A

130G0525
ref: 130A

BOLT-FLANGED

€ 0.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

482

482J4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92055

920551258
ref: 92055

RING-O,ID=16.8

€ 3.00

92055A

920551399
ref: 92055A

RING-O,14.5X1.5

€ 3.00

92055B

920551422
ref: 92055B

RING-O

€ 4.00

92143

921431056
ref: 92143

COLLAR

€ 6.50

92143A

921431147
ref: 92143A

COLLAR,VALVE

€ 9.00
