FRONT FORK
KDX200-E1 1989 USA CANADA

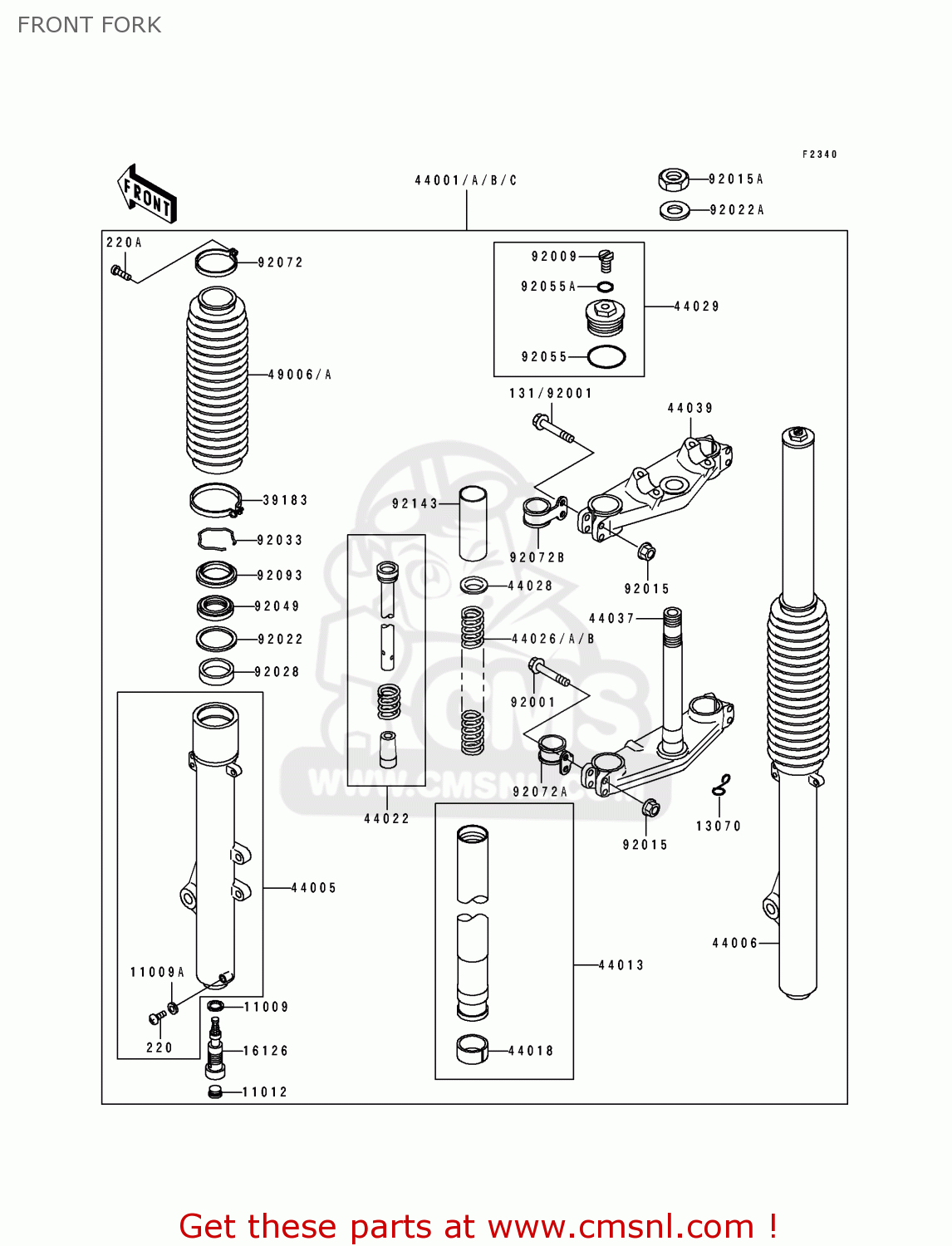

Front fork diagram KDX200-E1 1989 USA CANADA
FRONT FORK KDX200-E1 1989 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091324
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 3.50
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
13070
130701208
ref: 13070
GUIDE,CABLE
€ 7.00
16126
161261134
ref: 16126
VALVE,FORK CYLINDER
€ 121.50
39183
391831051
ref: 39183
BAND-ASSY,BOOT
€ 7.00
44001
440011711BC
ref: 44001
US
FORK-FRONT,BLUE
€ 1,176.00
44001B
440011733BC
ref: 44001B
CN
FORK-FRONT,BLUE
€ 0.00
44005
440051286
ref: 44005
PIPE-LEFT FORK OUTER
€ 289.50
44006
440061300
ref: 44006
PIPE-RIGHT FORK OUTER
€ 300.50
44013
440131300
ref: 44013
PIPE-FORK INNER
€ 320.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221240
ref: 44022
CYLINDER-FORK
€ 94.00
44026
440261401
ref: 44026
SPRING-FRONT FORK,K=0
€ 38.50
44026A
440261430
ref: 44026A
SPRING-FRONT FORK,K=0
€ 43.00
44026B
440261431
ref: 44026B
SPRING-FRONT FORK,K=0
€ 43.00
44028
440281010
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44029
440291137
ref: 44029
SEAT-FORK SPRING
€ 39.00
44037
440371248
ref: 44037
HOLDER-FORK UNDER
€ 450.50
44039
440391154
ref: 44039
HOLDER-FORK UPPER
€ 192.00
49006
490061184BC
ref: 49006
BOOT,FORK,BLUE
€ 53.50
92001
920011639
ref: 92001
US
BOLT
€ 4.50
92001
920011639
ref: 92001
CN
BOLT
€ 4.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491295
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
131
131G0850
ref: 131
US
BOLT-FLANGED
€ 1.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0416
ref: 220A
SCREW-PAN-CROS
€ 2.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92072
920721078
ref: 92072
BAND,BOOT
€ 7.00
92072A
920721205
ref: 92072A
BAND,CABLE
€ 12.50
92072B
920721246
ref: 92072B
BAND
€ 12.00
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
92143
921431328
ref: 92143
COLLAR,FORK,L=110
€ 7.00
