CYLINDER HEAD/CYLINDER
KDX200-E1 1989 USA CANADA

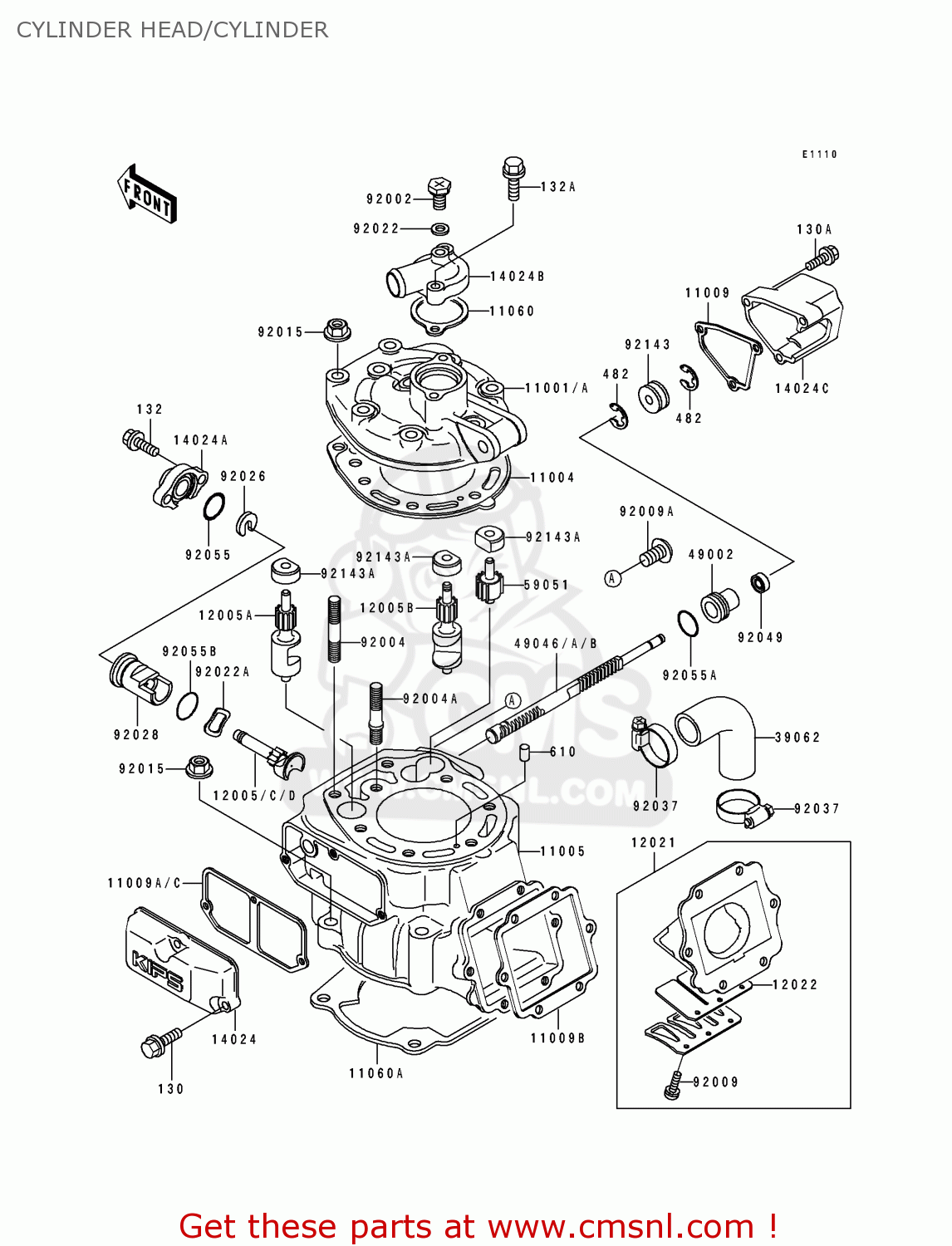

Cylinder head/cylinder diagram KDX200-E1 1989 USA CANADA
CYLINDER HEAD/CYLINDER KDX200-E1 1989 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11001
110011291
ref: 11001
HEAD-CYLINDER
€ 160.50
11004
110041189
ref: 11004
GASKET-HEAD (NAS)
€ 26.50
11005
110051569
ref: 11005
CYLINDER-ENGINE
€ 670.50
11009
110091934
ref: 11009
GASKET,RH,GOVERNOR (NAS)
€ 4.00
11009A
110091938
ref: 11009A
GASKET,LH,RESONATOR (NAS)
€ 3.50
11009B
110091941
ref: 11009B
GASKET,REED VALVE (NAS)
€ 6.00
11060
110091993
ref: 11060
GASKET,ELBOW (NAS)
€ 3.50
11060A
110091994
ref: 11060A
GASKET,CYLINDER BASE
€ 7.50
12005
120051115
ref: 12005
VALVE-EXHAUST,CENTER
€ 39.00
12005A
120051121
ref: 12005A
VALVE-EXHAUST,LH
€ 55.50
12005B
120051122
ref: 12005B
VALVE-EXHAUST,RH
€ 47.50
12005D
120051157
ref: 12005D
VALVE-EXHAUST,CENTER
€ 37.50
12021
120211067
ref: 12021
VALVE-ASSY-REED
€ 100.50
12022
120221063
ref: 12022
VALVE-REED
€ 18.50
14024
140241565
ref: 14024
COVER,RESONATOR
€ 22.50
14024A
140241708
ref: 14024A
COVER,CENTER VALVE
€ 8.50
14024B
140241719
ref: 14024B
COVER
€ 15.50
14024C
140241786
ref: 14024C
COVER,GOVERNOR
€ 12.00
39062
390621299
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 8.00
49002
490021083
ref: 49002
GUIDE-VALVE
€ 12.50
49046
490461065
ref: 49046
ROD-GOVERNOR
€ 56.00
49046B
490461069
ref: 49046B
ROD-GOVERNOR
€ 56.00
59051
590511206
ref: 59051
GEAR-SPUR,IDLE
€ 24.50
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92004
920041009
ref: 92004
STUD, 8X35
€ 4.00
92004A
920041199
ref: 92004A
STUD,8X34
€ 8.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92009A
920091502
ref: 92009A
SCREW
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221978
ref: 92022A
WASHER,WAVE
€ 4.00
130
130G0520
ref: 130
BOLT-FLANGED
€ 1.00
130A
130G0525
ref: 130A
BOLT-FLANGED
€ 0.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92026
920261333
ref: 92026
SPACER
€ 2.50
92028
920281616
ref: 92028
BUSHING,CENTER VALVE
€ 23.00
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
920551258
ref: 92055
RING-O,ID=16.8
€ 3.00
92055A
920551399
ref: 92055A
RING-O,14.5X1.5
€ 3.00
92055B
920551422
ref: 92055B
RING-O
€ 4.00
92143
921431056
ref: 92143
COLLAR
€ 6.50
92143A
921431147
ref: 92143A
COLLAR,VALVE
€ 9.00
