BRAKE PEDAL

KDX200-E1 1989 USA CANADA

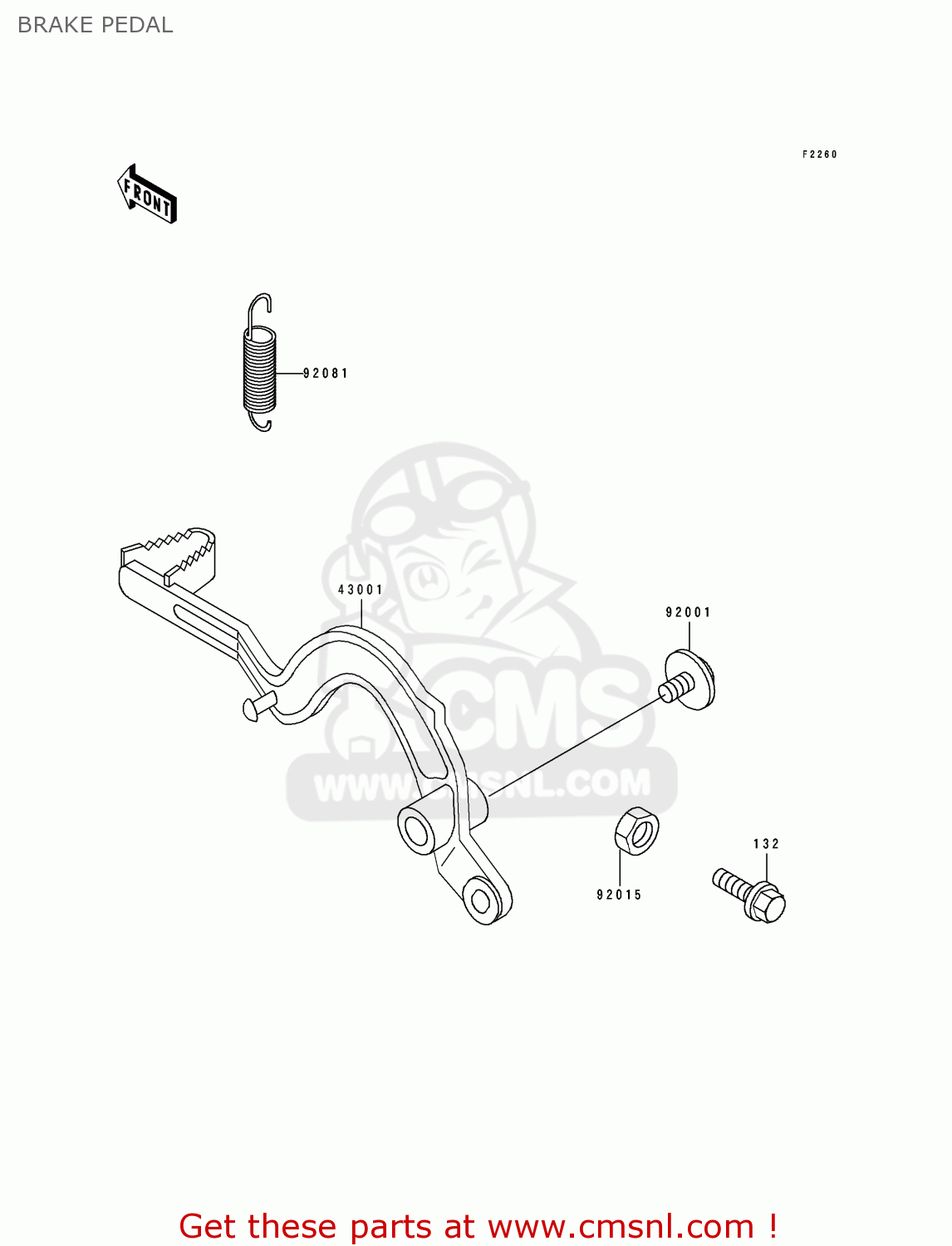

Brake pedal diagram KDX200-E1 1989 USA CANADA

BRAKE PEDAL KDX200-E1 1989 USA CANADA
BRAKE PEDAL KDX200-E1 1989 USA CANADA
BRAKE PEDAL KDX200-E1 1989 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
132G0625
€ 3.00
43001
430011264
ref: 43001
LEVER-BRAKE,PEDAL
€ 43.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
920011034
€ 7.00
92015
920151391
ref: 92015
NUT,6MM
920151391
€ 2.00
92081
920811839
ref: 92081
SPRING,RETURN
920811839
€ 5.50
