REAR HUB
KDX200-C2 1987 UNITED KINGDOM AL

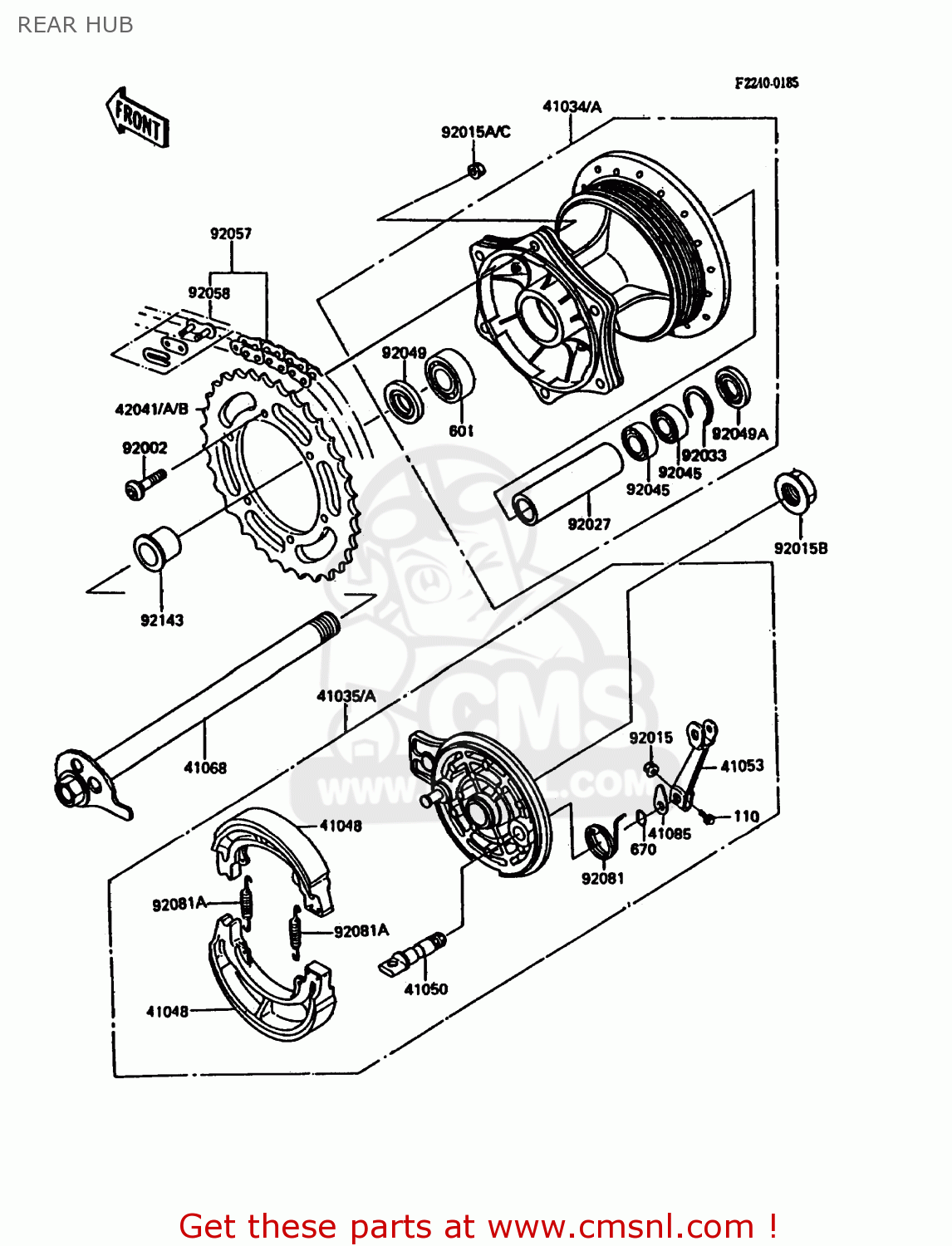

Rear hub diagram KDX200-C2 1987 UNITED KINGDOM AL
REAR HUB KDX200-C2 1987 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
110
110G0630
ref: 110
BOLT-HEX HEAD,6X30
€ 1.00
601
601B6004U
ref: 601
BEARING-BALL,#6004UC3
€ 27.50
670
670B2012
ref: 670
O RING,12MM
€ 1.00
41034A
410341157
ref: 41034A
DRUM-ASSY,REAR BRAKE
€ 406.00
41035A
410351213
ref: 41035A
PANEL-ASSY-BRAKE,RR
€ 279.00
41048
410481063
ref: 41048
SHOE-BRAKE (MCA)
€ 12.50
41050
410501064
ref: 41050
CAM-BRAKE
€ 25.00
41053
410531066
ref: 41053
LEVER-BRAKE CAM,RR
€ 36.00
41068
410681211
ref: 41068
AXLE,RR
€ 112.00
41085
41085002
ref: 41085
INDICATOR,BRAKE SHOE
€ 2.50
42041
420411103
ref: 42041
SPROCKET-HUB,48T
€ 87.50
42041A
420411105
ref: 42041A
SPROCKET-HUB,49T
€ 75.00
42041B
420411194
ref: 42041B
SPROCKET-HUB,47T,AL
€ 75.00
92002
920021387
ref: 92002
BOLT,8MM
€ 4.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151461
ref: 92015B
NUT,20MM
€ 17.50
92027
920271827
ref: 92027
COLLAR,L=103
€ 36.00
92033
920331191
ref: 92033
RING-SNAP,32MM
€ 2.50
92045
920451135
ref: 92045
BEARING-BALL,6804LU/2
€ 28.50
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92049A
920491205
ref: 92049A
SEAL-OIL,BJN 30374
€ 12.00
92057
920571215
ref: 92057
CHAIN
€ 56.00
92058
920581051
ref: 92058
JOINT-CHAIN
€ 6.00
92081
920811615
ref: 92081
SPRING,BRAKE CAM LEVE
€ 13.00
92081A
920811766
ref: 92081A
SPRING,BRAKE SHOE
€ 5.50
92143
920271960
ref: 92143
COLLAR,L=25
€ 12.50
