CRANKSHAFT/PISTON(S)

KDX200-C2 1987 UNITED KINGDOM AL

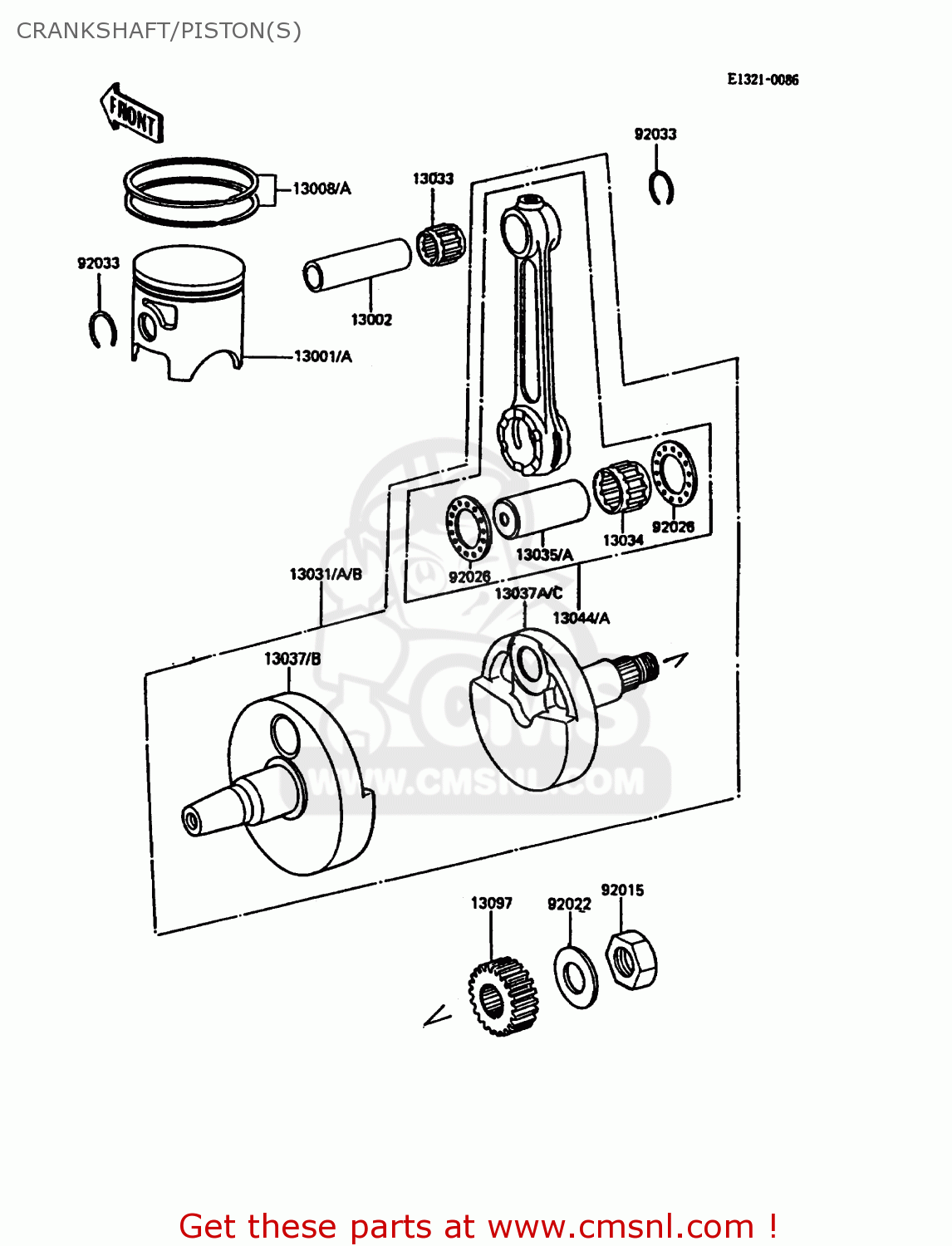

Crankshaft/piston(s) diagram KDX200-C2 1987 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

13001A

130011256
ref: 13001A

PISTON-ENGINE

€ 78.00

13002

130021053
ref: 13002

PIN-PISTON

€ 16.50

13008

130081093
ref: 13008

RING-SET-PISTON

€ 45.50

13031A

130311229
ref: 13031A

CRANKSHAFT-COMP

€ 454.00

13033

130331007
ref: 13033

BEARING-SMALL END

€ 24.00

13034

130341071
ref: 13034

BEARING-BIG END

€ 37.50

13035A

130351010
ref: 13035A

PIN-CRANK

€ 33.00

13037

130371161
ref: 13037

CRANKSHAFT,LH

€ 148.00

13037A

130371273
ref: 13037A

CRANKSHAFT,RH

€ 148.00

13044A

130445062
ref: 13044A

SET-CONNECTING ROD

€ 161.50

13097

130971157
ref: 13097

GEAR-PRIMARY SPUR,22T

€ 46.50

92015

920151176
ref: 92015

NUT,16MM

€ 3.50

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92026

92026011
ref: 92026

SPACER,22.5X37X1.0

€ 6.50

92033

920331161
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50
