KICKSTARTER MECHANISM
KDX200-C2 1987 UNITED KINGDOM AL

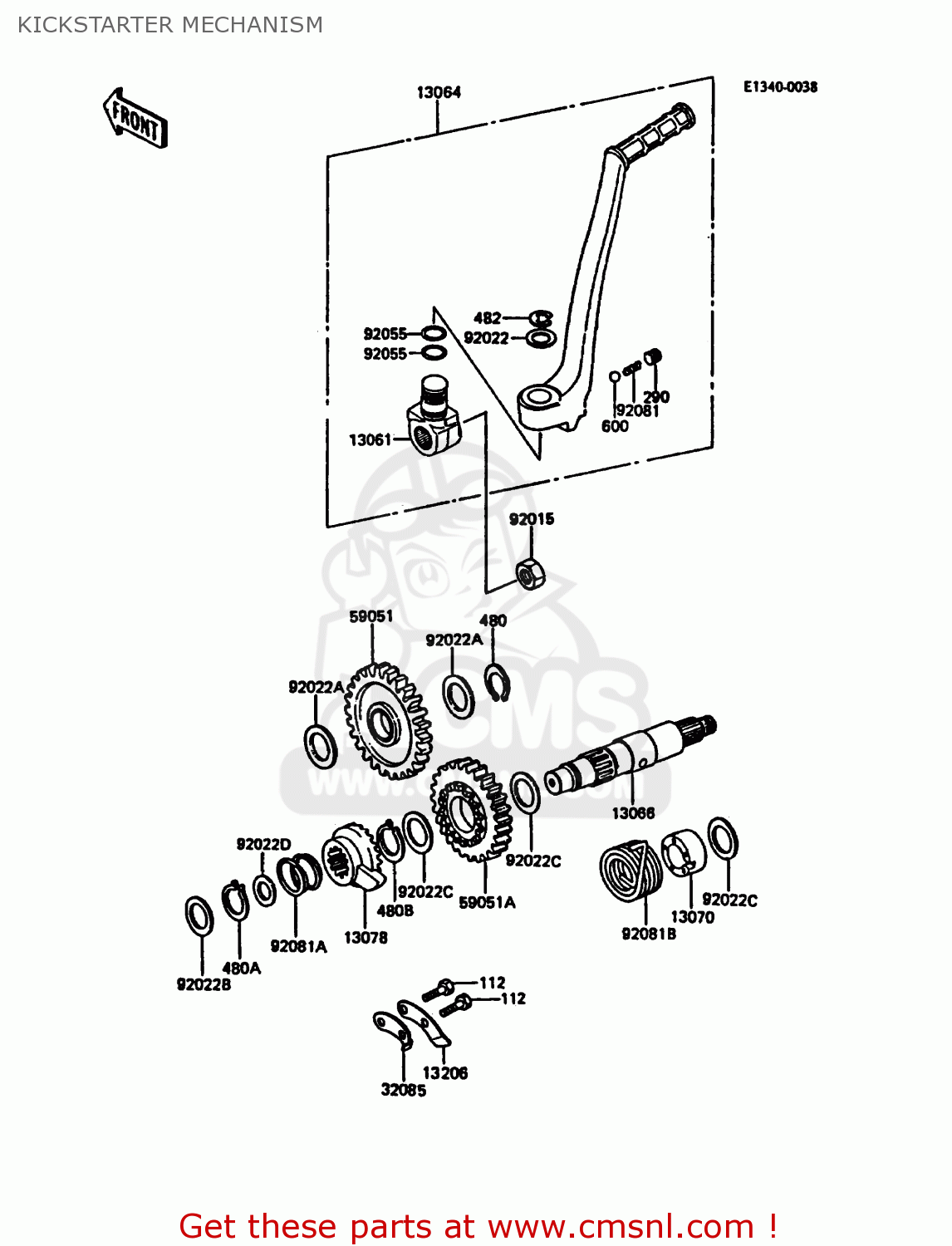

Kickstarter mechanism diagram KDX200-C2 1987 UNITED KINGDOM AL
KICKSTARTER MECHANISM KDX200-C2 1987 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
480A
480J1600
ref: 480A
CIRCLIP-TYPE-C,16MM
€ 2.50
480B
480J1800
ref: 480B
CIRCLIP-TYPE-C,18MM
€ 1.00
482
482L0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611190
ref: 13061
BOSS,KICK PEDAL
€ 55.50
13064
130641128
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 151.00
13066
130661063
ref: 13066
SHAFT-KICK
€ 68.00
13070
130701063
ref: 13070
GUIDE,KICK SPRING
€ 14.00
13078
130781007
ref: 13078
RATCHET
€ 50.50
13206
132061001
ref: 13206
GUIDE,KICKSTARTER
€ 7.00
32085
320851016
ref: 32085
STOPPER,KICKSTARTER
€ 5.50
59051
590511041
ref: 59051
GEAR-SPUR,KICK,30T
€ 74.00
59051A
590511152
ref: 59051A
GEAR-SPUR,KICKSTATER,
€ 83.00
92015
920151001
ref: 92015
NUT,12MM
€ 3.50
92022
920221019
ref: 92022
WASHER,15.2X20X1
€ 3.50
92022A
920221045
ref: 92022A
WASHER,15.3X25X0.5
€ 3.00
92022B
92022269
ref: 92022B
WASHER,PLAIN
€ 1.00
92022C
92022271
ref: 92022C
WASHER,PLAIN
€ 3.50
92022D
92022315
ref: 92022D
WASHER, 16.8X22X0.5
€ 4.00
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811926
ref: 92081B
SPRING,KICKSTARTER
€ 11.50
