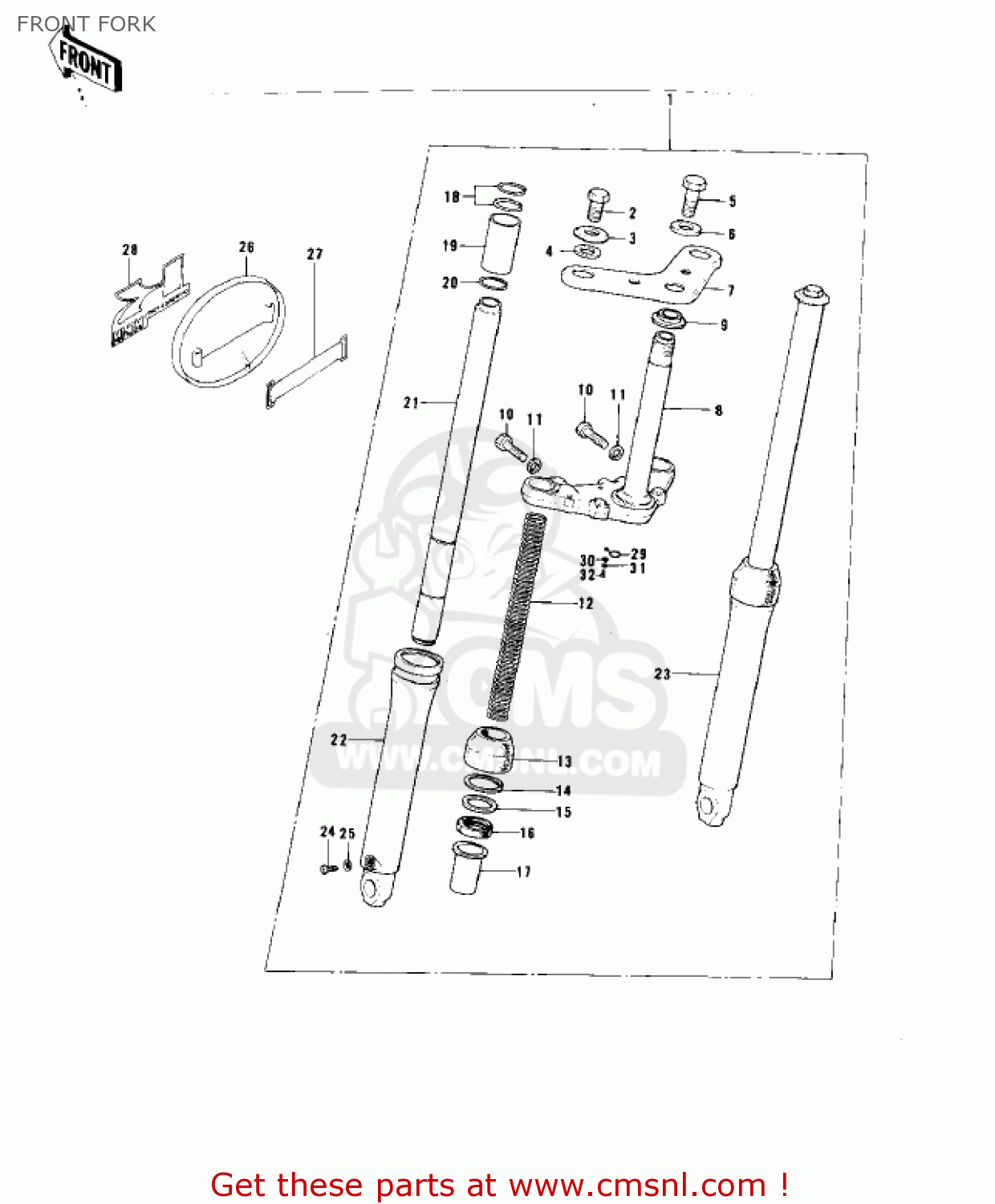

FRONT FORK

ref

part #

description

quantity

1

44001161
ref: 1

FRONT FORK ASSY

€ 488.00

2

920011742
ref: 2

BOLT

€ 10.50

3

920221381
ref: 3

WASHER

€ 6.00

4

44045053
ref: 4

GASKET,FORK TOP BOLT (NAS)

€ 3.00

5

112G1030
ref: 5

BOLT UPSET

€ 4.50

6

920221381
ref: 6

WASHER

€ 6.00

7

44039056
ref: 7

HEAD,STEERING

€ 27.50

8

44037069
ref: 8

STEM,STEERING

€ 138.50

9

92047004
ref: 9

CONE-LOWER BEARING

€ 13.00

10

920011252
ref: 10

BOLT,HEX HEAD,10X35

€ 3.50

11

461F1000
ref: 11

WASHER-SPRING,10MM

€ 0.50

12

44026051
ref: 12

FORK SPRING,INNER

€ 20.00

13

44010024
ref: 13

DUST SHIELD,FORK

€ 9.00

14

44044016
ref: 14

RING-SNAP,40MM

€ 4.50

15

44043054
ref: 15

WASHER,FORK OUTER PIP

€ 2.50

16

920491075
ref: 16

SEAL OIL, OUTER TUBE

€ 10.00

17

44015016
ref: 17

GUIDE,FORK INNER PIPE

€ 10.50

18

44020003
ref: 18

RING,INNER TUBE GUIDE

€ 2.00

19

44018007
ref: 19

PISTON-FORK

€ 9.50

20

44044017
ref: 20

CIRCLIP,OUTER TUBE

€ 2.00

21

44013051
ref: 21

TUBE,FORK INNER

€ 45.50

22

44005052
ref: 22

TUBE,L.H FORK OUTER

€ 65.50

23

44006050
ref: 23

TUBE,R.H OUTER

€ 93.50

24

220B0406
ref: 24

SCREW-PAN-CROS,4X6

€ 2.50

25

44045046
ref: 25

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

26

58029025
ref: 26

FRONT NUMBER PLATE

€ 76.00

27

92072006
ref: 27

BAND,L=142.1

€ 8.00

28

56018179
ref: 28

NUMBER PLATE EMBLEM

€ 30.00

28

56018235
ref: 28
KD80-A2

NUMBER PLATE EMBLEM

€ 33.50

29

92037046
ref: 29
KD80-A2

CLAMP,CABLE

€ 3.00

30

411B0600
ref: 30
KD80-A2

WASHER-PLAIN,6MM

€ 0.50

31

461F0600
ref: 31
KD80-A2

WASHER-SPRING,6MM

€ 0.50

32

112G0612
ref: 32
KD80-A2

BOLT-UPSET

€ 2.50

all assemblies
