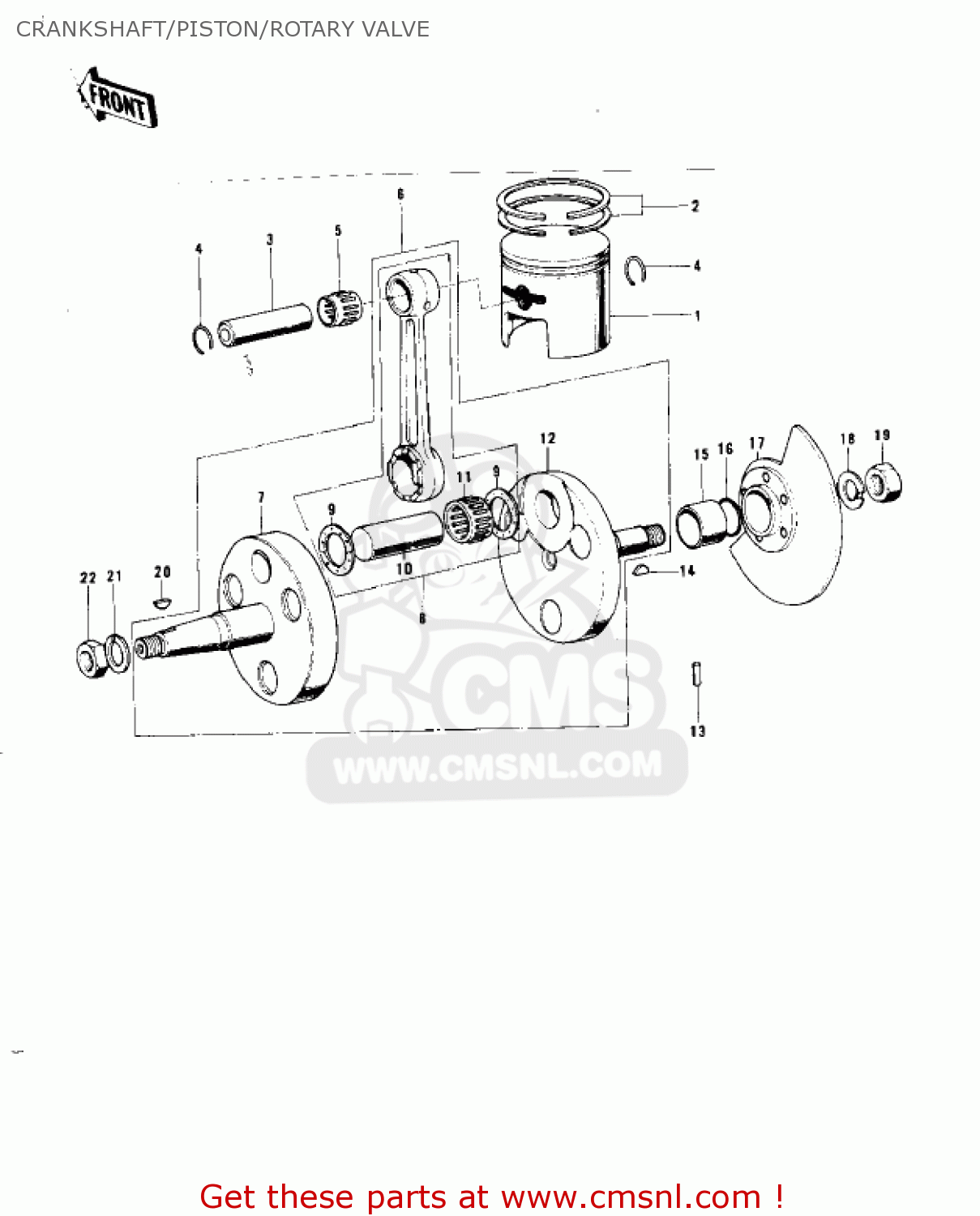

CRANKSHAFT/PISTON/ROTARY VALVE

ref

part #

description

quantity

1

13001061
ref: 1

PISTON-ENGINE,STD

€ 36.50

1

13029061
ref: 1
OPT

PISTON-ENGINE-L,O/S 0

€ 43.50

1

13027059
ref: 1
OPT

PISTON-ENGINE-LL,O/S

€ 48.50

2

13008047
ref: 2

RING-SET-PISTON,STD

€ 38.00

2

13025051
ref: 2
OPT

RING-SET-PISTON L,O/S

€ 48.50

2

13024052
ref: 2
OPT

RING-SET-PISTON LL,O/

€ 43.50

3

13002003A
ref: 3

PIN-PISTON

€ 11.50

4

92036003
ref: 4

CIRCLIP-PISTON PIN

€ 0.50

5

13033030
ref: 5
KTV141817

BEARING-NEEDLE,KTV141

€ 23.50

6

13036050
ref: 6

CRANK AND CONNECTING ROD ASSEMBLY

€ 627.50

7

13037068
ref: 7

CRANKSHAFT,LH

€ 277.50

8

130445015
ref: 8

SET-CONNECTING ROD

€ 143.50

9

92025047
ref: 9

SHIM,T=1.0

€ 7.50

10

13035025
ref: 10

PIN-CRANK

€ 19.00

11

13034034
ref: 11
KT192612

BEARING-NEEDLE,KT1928

€ 24.50

12

13038057
ref: 12

CRANKSHAFT,RH

€ 290.50

13

610A0410
ref: 13

ROLLER,4X10

€ 2.50

14

92038003
ref: 14

WOODRUFF KEY-PRY PINI

€ 1.50

15

92027022
ref: 15

COLLAR-CRANKSHAFT

€ 7.00

16

670B2016
ref: 16

O RING,16MM

€ 1.00

17

12001004
ref: 17

VALVE-ROTARY DISC

€ 64.50

18

92024003
ref: 18

WASHER,CLAW,12.5X25X0

€ 2.50

19

92015006
ref: 19

NUT,12MM

€ 3.50

20

510A3200
ref: 20

KEY-WOODRUFF

€ 1.50

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

314B1000
ref: 22

NUT,10MM

€ 0.50

CRANKSHAFT/PISTON/ROTARY VALVE

all assemblies
