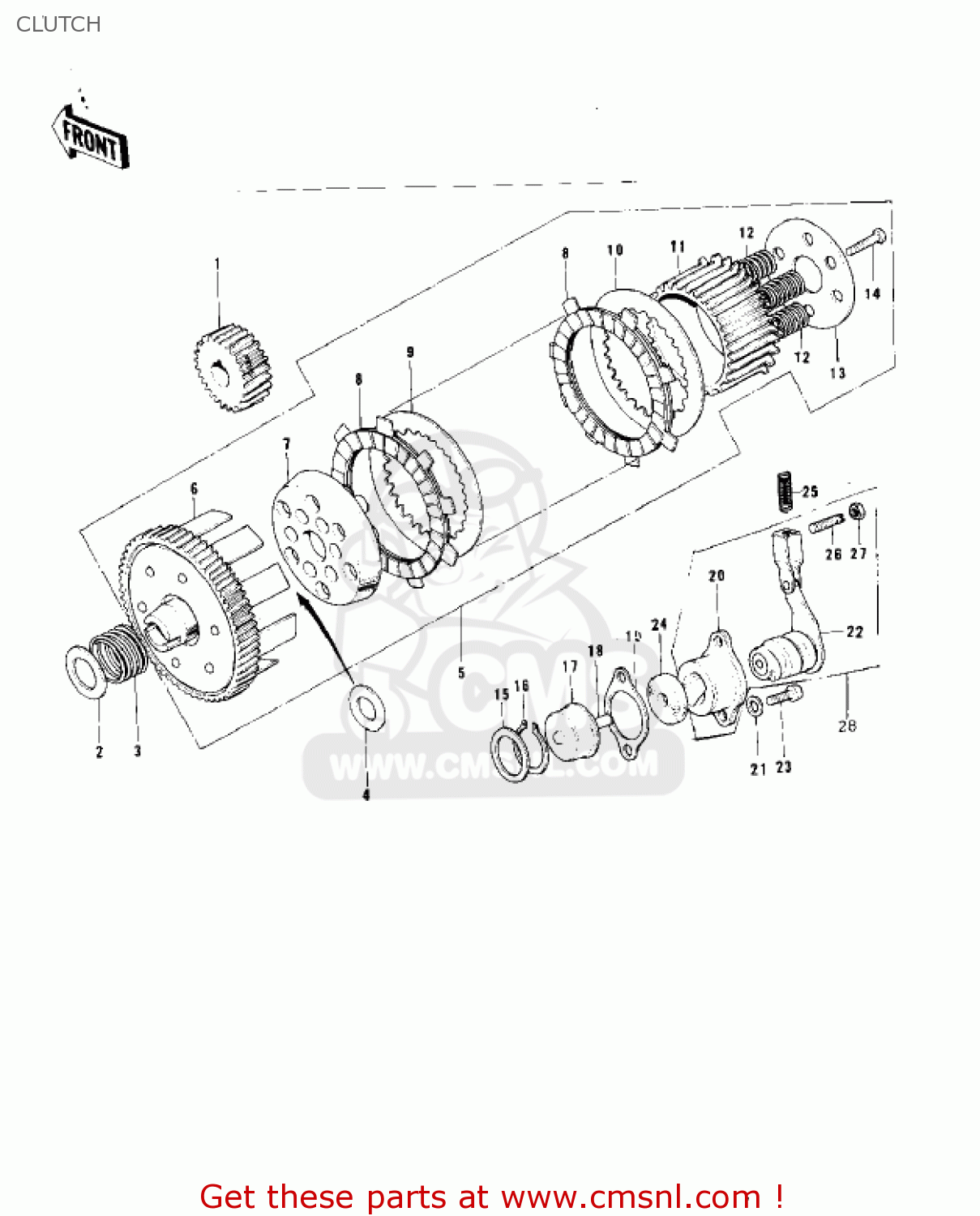

CLUTCH

ref

part #

description

quantity

1

13121032
ref: 1

GEAR-PRIMARY SPUR

€ 92.50

2

92022057
ref: 2
O.D=36

WASHER,25.5X36X1

€ 2.50

3

92081015
ref: 3

SPRING-CLUTCH DAMPER

€ 4.00

4

92022054
ref: 4
O.D=27

WASHER,16.5X27X1.4

€ 4.50

5

13081028
ref: 5

CLUTCH ASSY

€ 193.00

6

13095022
ref: 6

HOUSING,CLUTCH

€ 216.00

7

130861002
ref: 7

WHEEL,CLUTCH

€ 33.00

8

130881103
ref: 8

PLATE-FRICTION (MCA)

€ 11.00

9

130891009
ref: 9

PLATE-CLUTCH,STEEL (NAS)

€ 8.50

10

13090004
ref: 10

PLATE-CLUTCH,OUTER (NAS)

€ 11.50

11

130871011
ref: 11

HUB-CLUTCH

€ 74.00

12

92081012
ref: 12

SPRING-CLUTCH

€ 4.00

13

130911115
ref: 13

HOLDER,CLUTCH SPRING

€ 12.50

14

112G0516
ref: 14

BOLT-UPSET

€ 0.50

15

92022053
ref: 15
O.D=21

WASHER,THRUST,16.5X21

€ 2.50

16

480J1600
ref: 16

CIRCLIP-TYPE-C,16MM

€ 2.50

17

13113003
ref: 17

PUSHER-COMP-CLUTCH

€ 6.50

18

92042043
ref: 18

PIN,DOWEL,7X20

€ 3.50

19

110601197
ref: 19

GASKET,CLUTCH RELEASE (NAS)

€ 3.50

20

132311008
ref: 20

RELEASE-ASSY-CLUTCH

€ 55.00

21

410B0600
ref: 21

WASHER-PLAIN-SMALL,6M

€ 0.50

22

132311008
ref: 22

RELEASE-ASSY-CLUTCH

€ 55.00

23

220B0616
ref: 23

SCREW-PAN HEAD,6X16

€ 2.50

24

92050071
ref: 24

OIL SEAL

€ 7.00

25

92081096
ref: 25

SPRING-CLUTCH RELEASE

€ 3.50

26

291H0616
ref: 26

SCREW,SLOTTED,6X16

€ 4.00

27

312B0600
ref: 27

NUT,6MM

€ 0.50

28

132311008
ref: 28

RELEASE-ASSY-CLUTCH

€ 55.00

all assemblies
